621500x89B - Yard King 21" Snow Thrower (2001) Engine Assembly Parts Diagram

21" Snow Thrower

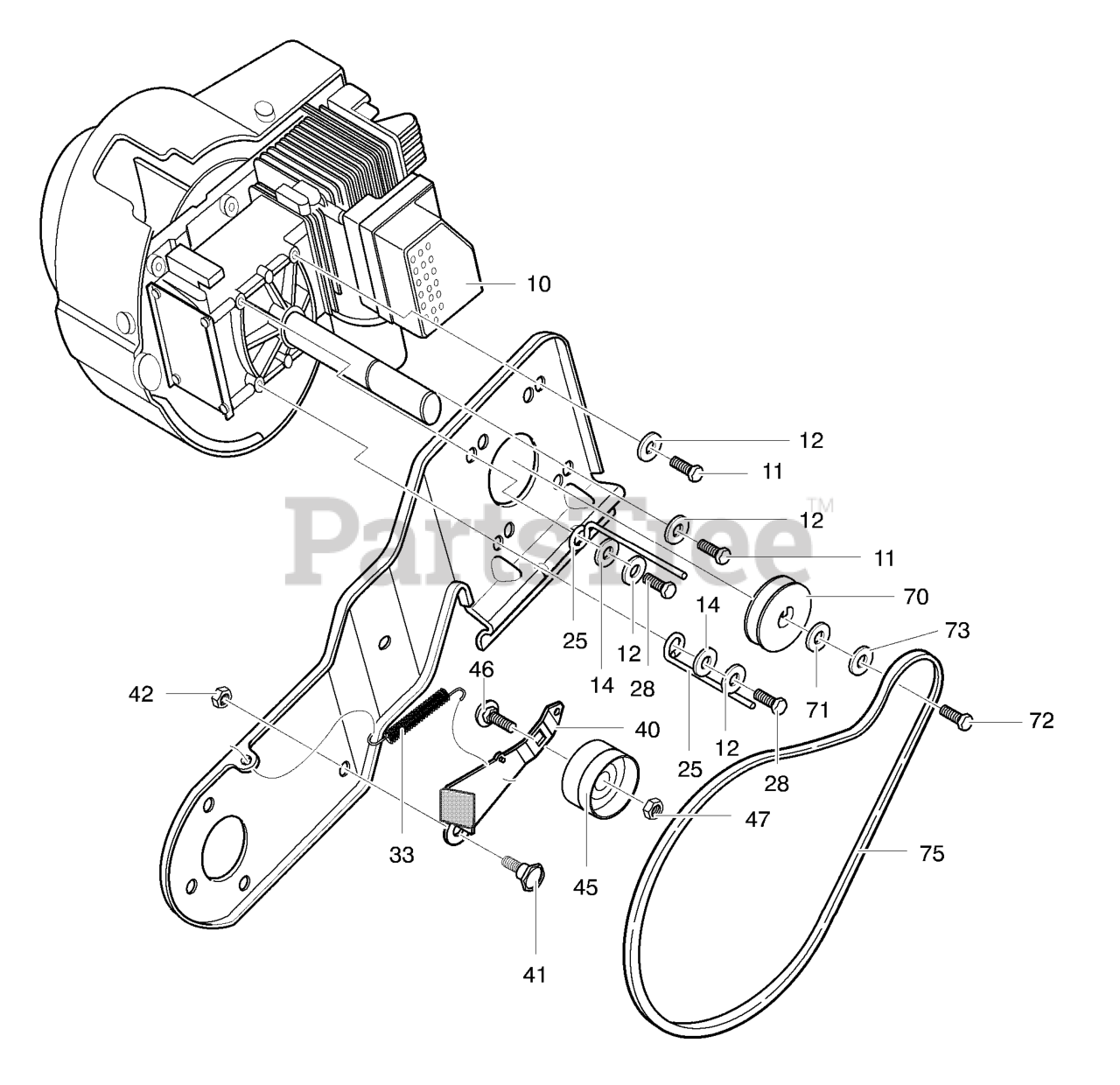

Engine Assembly Parts Diagram

  • Title

10

ENGINE

$

$

Not available

11

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

12

Murray 018X16MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

14

Murray 120393

FLATWASHER

$

$

Not available

25

Murray 313440MA

BELT GUIDE

$9.99

$

Usually ships in 2-12 days

0

28

Murray 710312

SCREW, 5/16-18 x 1.00

$8.49

$

Usually ships in 2-12 days

0

33

Murray 339017MA

SPRING, IDLER BRAKE

$39.99

$

Usually ships in 2-12 days

0

40

Murray 1501013MA

IDLER ARM

$153.99

$

Usually ships in 2-12 days

0

41

Murray 333594MA

BOLT, 5/16-18

$20.99

$

In Stock, only 1 left!

0

42

Murray 1498

NUT,5/16-18

$

$

Not available

45

Murray 48924MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

46

Murray 45892MA

BOLT, 3/8-16X1.50

$4.49

$

Usually ships in 2-12 days

0

47

Murray 41529MA

NUT, 3/8-16 JAM

$3.99

$

In Stock, Qty 9

0

70

Murray 338849MA

PULLEY

$

$

Not available

71

Murray 25840

WASHER

$

$

Not available

72

Murray 181595

SCREW, 5/16-24 x .75

$

$

Not available

73

Murray 018X16MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

75

Murray 760928MA

BELT

$18.99

$

In Stock, only 1 left!

0

--

Murray F-011000M

BOOK, INSTRUCTION

$

$

Currently unavailable
