621500x89B - Yard King 21" Snow Thrower (2001) Discharge Chute Parts Diagram

21" Snow Thrower

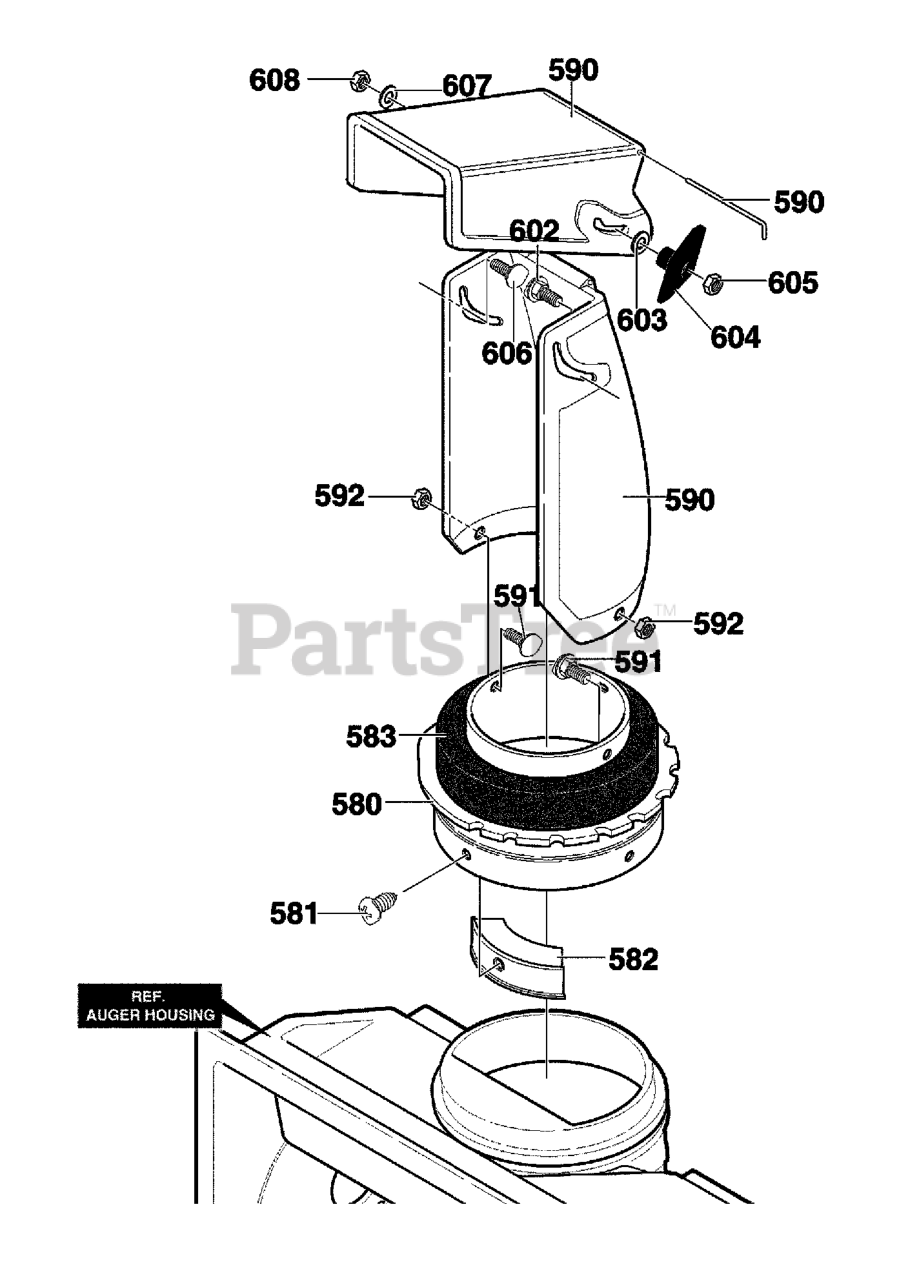

Discharge Chute Parts Diagram

  • Title
580

Murray 333860MA

RING, CHUTE

$33.99

$

Usually ships in 2-12 days

0

581

Murray 300302

SCREW, #10X.50

$1.49

$

Usually ships in 2-12 days

0

582

Murray 577021MA

GUIDE, CHUTE

$5.49

$

In Stock, Qty 8

0

583

Murray 762173MA

DONUT FOAM

$20.99

$

Usually ships in 2-12 days

0

590

Murray 762221

CHUTE ASSY.

$51.99

$

In Stock, Qty 17

0

591

Murray 180016MA

SCREW 1/4-20X.50

$3.99

$

In Stock, only 2 left!

0

592

Murray 46931MA

NUT, CNTRLK 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

602

Murray 302843MA

BOLT, 5/16-18X1.25 CARR.

$

$

Not available

603

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

604

Murray 13527

KNOB, T

$

$

Not available

605

Murray 120376

NUT, 5/16-18 REGHEX

$

$

Not available

606

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

607

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

608

Murray 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Not available
