621500x89A - Yard King 21" Snow Thrower (2000) Handle Assembly Parts Diagram

21" Snow Thrower

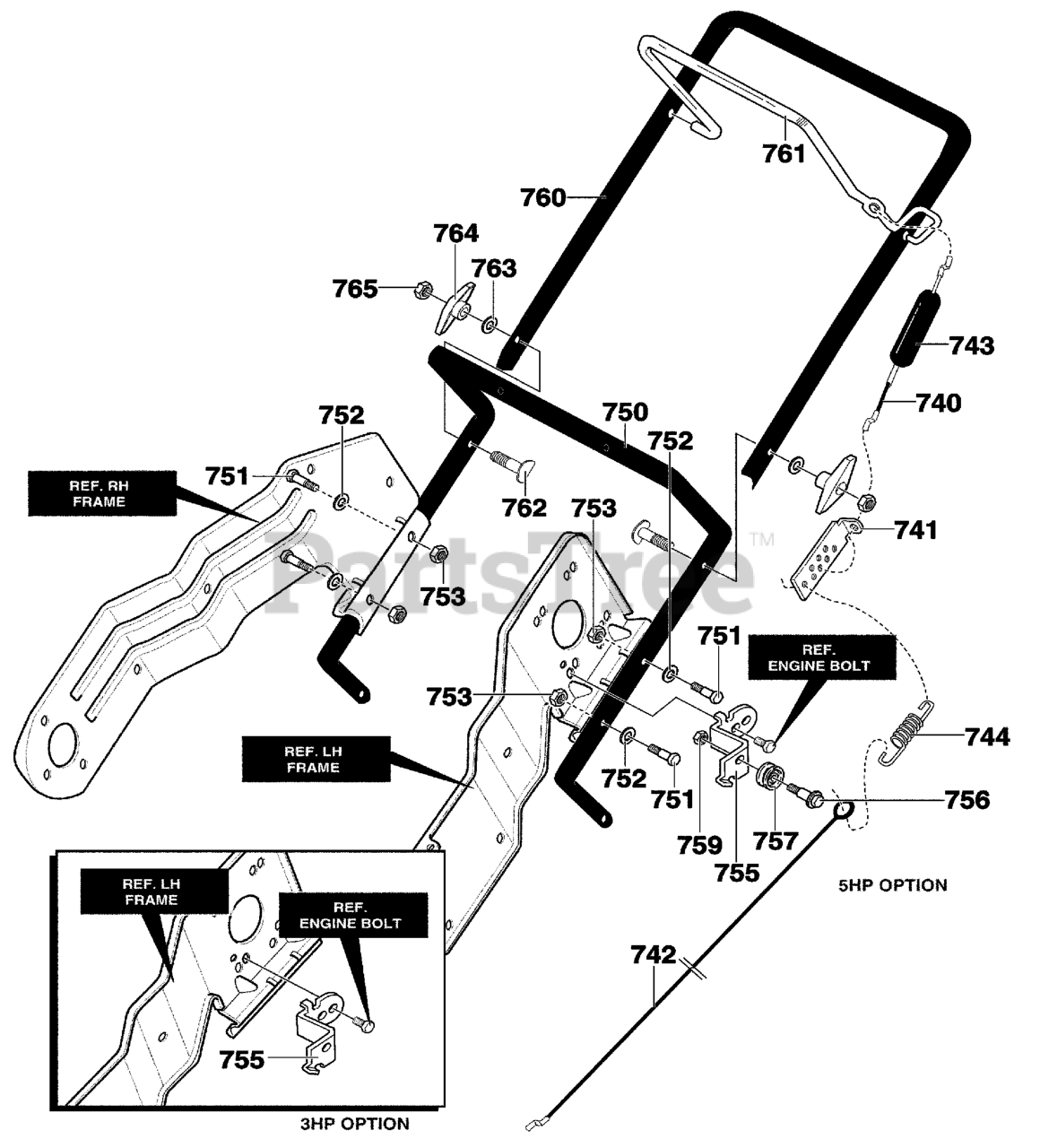

Handle Assembly Parts Diagram

  • Title

740

Murray 760775

CABLE, UPPER

$

$

Currently unavailable

741

Murray 313441MA

BRKT, CABLE ADJ

$

$

Not available

742

Murray 760773MA

CABLE LOWER CONTROL

$14.99

$

Usually ships in 2-12 days

0

743

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

In Stock, only 2 left!

0

744

Murray 313471MA

SPRING

$4.99

$

In Stock, only 1 left!

0

750

Murray 333909-830

HANDLE LOWER

$

$

Currently unavailable

751

Murray 313674MA

SCREW, 1/4-20X1.25

$3.99

$

Usually ships in 2-12 days

0

752

Murray 071067MA

WASHER, FLAT .281X.63X.065

$82.99

$

In Stock, only 1 left!

0

753

Murray 73826

NUT, 1/4-20 REGHEXCTRLK

$4.99

$

In Stock, Qty 20+

0

755

Murray 761486-830

BRACKET, CABLE

$

$

Currently unavailable

756

Murray 58336

BOLT, .375X.375 1/4-20

$

$

Not available

757

Murray 48306MA

PULLEY, .906X.305

$24.99

$

Usually ships in 2-12 days

0

759

Murray 382585

NUT, 1/4-20 REGHEXCTRLK

$

$

Currently unavailable

760

Murray 335328-830

HANDLE, UPPER

$

$

Currently unavailable

761

Murray 335329-830

BAIL, CONTROL

$7.49

$

Usually ships in 2-12 days

0

762

Murray 337584MA

BOLT, 5/16-18X2.00

$4.99

$

Usually ships in 2-12 days

0

763

Murray 311936MA

WASHER, FORM

$7.49

$

Usually ships in 2-12 days

0

764

Murray 13527

KNOB,T

$

$

Not available

765

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
