621451x85NA - Murray 21" Snow Thrower (2002) Engine Assembly Parts Diagram

21" Snow Thrower

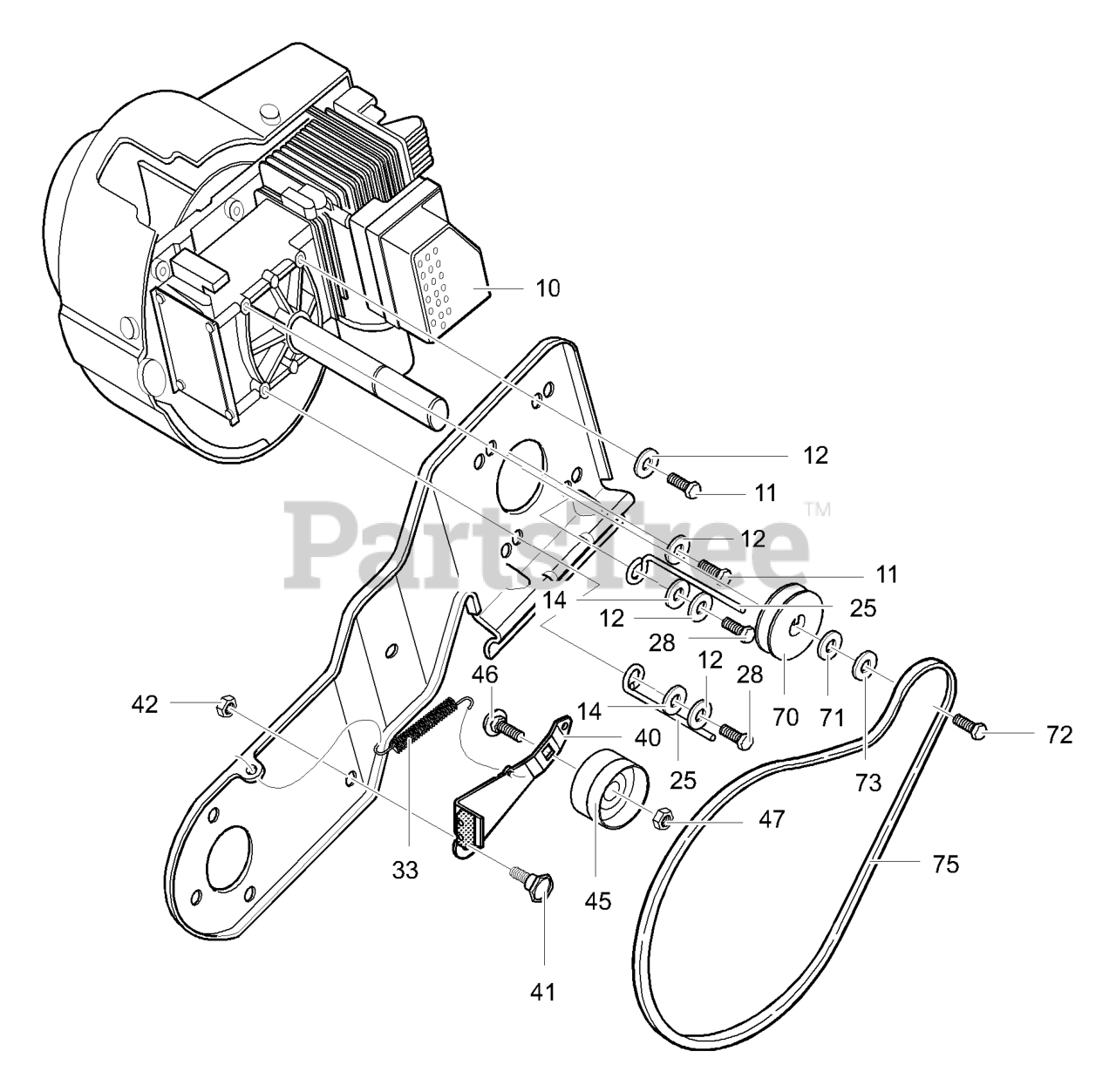

Engine Assembly Parts Diagram

  • Title

10

ENGINE

Note: (See Engine Manual)

$

$

Not available

11

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

12

Murray 071060

WASHER, SPTLK

$3.49

$

In Stock, Qty 20+

0

14

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

25

Murray 313440MA

BELT GUIDE

$9.99

$

Usually ships in 2-12 days

0

28

Murray 710312

SCREW, 5/16-18 x 1.00

$8.49

$

Usually ships in 2-12 days

0

33

Murray 339017MA

SPRING, IDLER BRAKE

$39.99

$

Usually ships in 2-12 days

0

40

Murray 1501013MA

IDLER ARM

$153.99

$

Usually ships in 2-12 days

0

41

Murray 333594MA

BOLT

$20.99

$

In Stock, only 1 left!

0

42

Murray 71391

NUT
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

45

Murray 48924MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

46

Murray 45892MA

BOLT

$4.49

$

Usually ships in 2-12 days

0

47

Murray 590

NUT
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

70

Murray 338849MA

PULLEY, V 3L

$

$

Not available

71

Murray 25840

WASHER

$

$

Not available

72

Murray 181595

SCREW, 5/16-24 x .75

$

$

Not available

73

Murray 071060

WASHER

$3.49

$

In Stock, Qty 20+

0

75

Murray 760928MA

BELT, V 3L 34.8" STEEL

$18.99

$

In Stock, only 1 left!

0

--

BOOK, INSTRUCTION

$

$

Not available

--

Murray F-021029

BOOK, PARTS

$

$

Currently unavailable
