621451x85B - Murray 21" Snow Thrower (2000) Engine Assembly Parts Diagram

21" Snow Thrower

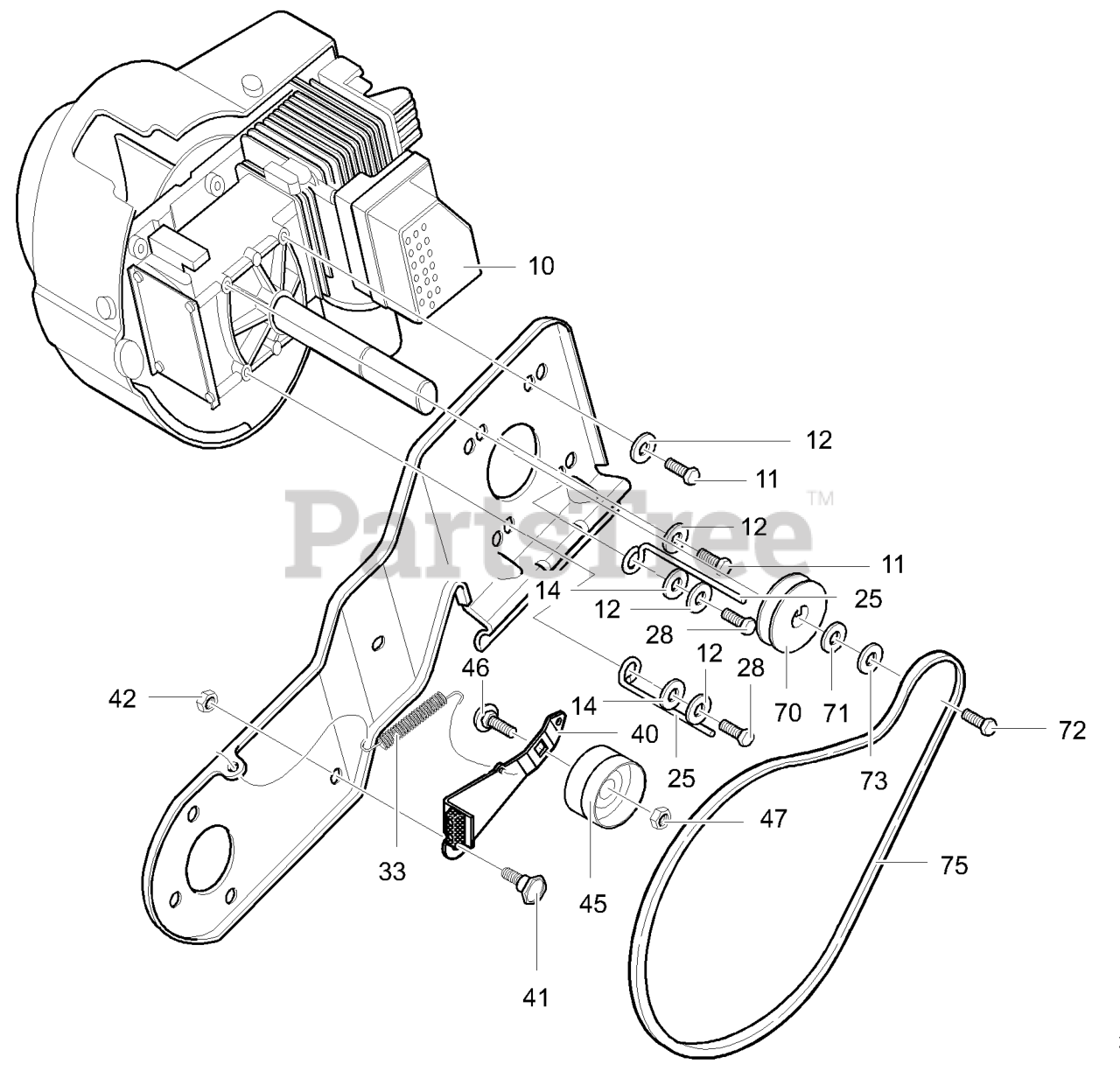

Engine Assembly Parts Diagram

  • Title

10

ENGINE

Note: (See Engine Manual)

$

$

Not available

11

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

12

Murray 120638

WASHER, SPTLK

$

$

Not available

14

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

25

Murray 313440MA

BELT GUIDE

$9.99

$

Usually ships in 2-12 days

0

28

Murray 710312

SCREW, 5/16-18 x 1.00

$8.49

$

Usually ships in 2-12 days

0

33

Murray 165X146MA

SPRING, IDLER BRAKE

$

$

Not available

40

Murray 1501013MA

IDLER ARM

$153.99

$

Usually ships in 2-12 days

0

41

Murray 333594MA

BOLT

$20.99

$

In Stock, only 1 left!

0

42

Murray 71391

NUT
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

45

Murray 48924MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

46

Murray 45892MA

BOLT

$4.49

$

Usually ships in 2-12 days

0

47

Murray 590

NUT
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

70

Murray 338849MA

PULLEY

$

$

Not available

71

Murray 25840

WASHER

$

$

Not available

72

Murray 181595

SCREW, 5/16-24 x .75

$

$

Not available

73

Murray 120638

WASHER

$

$

Not available

75

Murray 760928MA

BELT

$18.99

$

In Stock, only 1 left!

0
