621450x4NB - Murray 21" Snow Thrower (2003) Chute Rod Assembly Parts Diagram

21" Snow Thrower

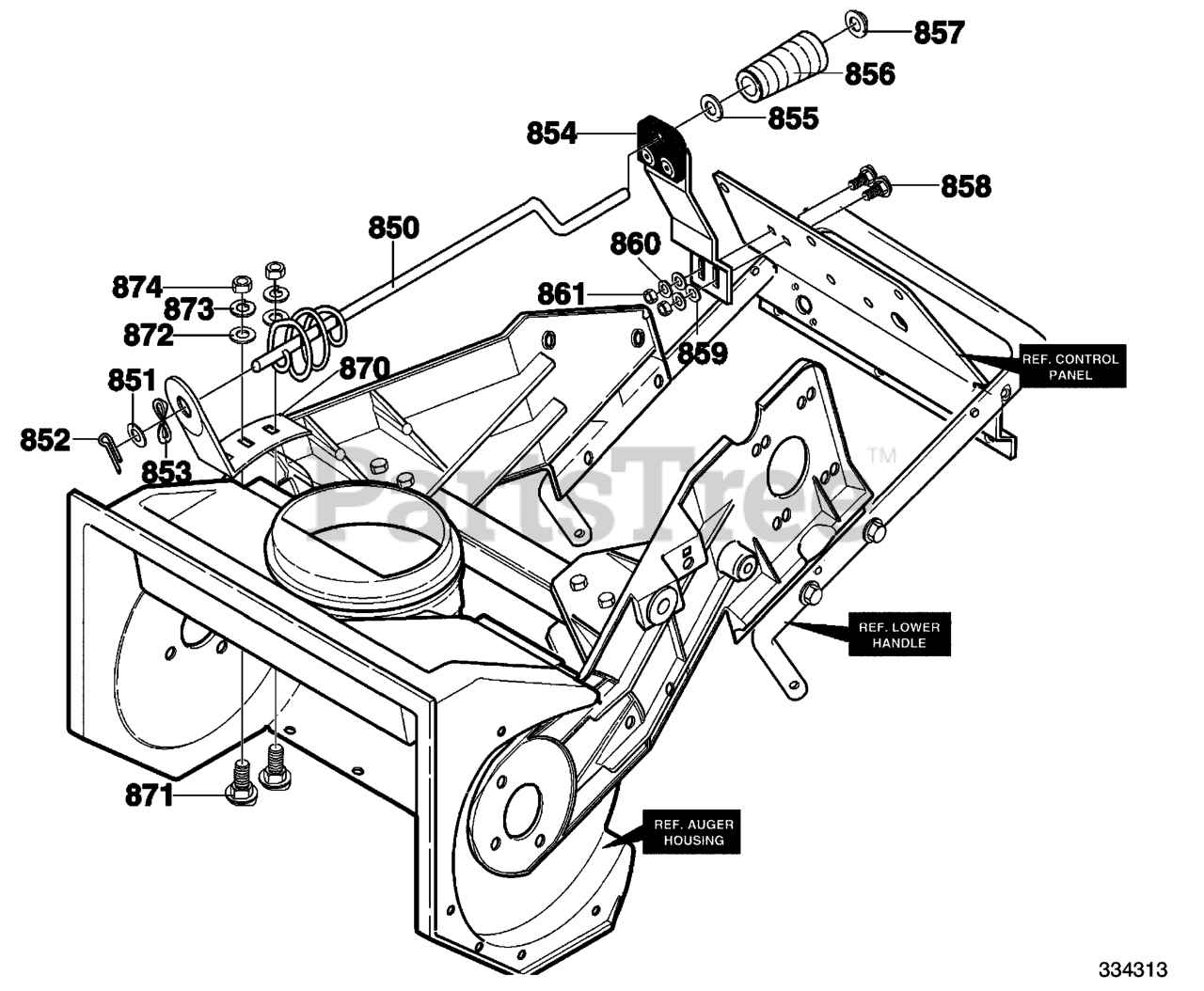

Chute Rod Assembly Parts Diagram

  • Title
850

Murray 337941

ROD, CHUTE
(Superseded to 337941MA)

$

$

Not available

851

Murray 71072

WASHER, FLAT .406X.81X.066

$

$

Not available

852

Murray 71082

PIN, COTTER

$

$

Not available

853

Murray 313431MA

WASHER CURVED

$4.99

$

In Stock, only 1 left!

0

854

Murray 340186

ASSY, CHUTE CRANK

$2.99

$

Usually ships in 2-12 days

0

855

Murray 71072

WASHER, FLAT .406X.81X.066

$

$

Not available

856

Murray 57082MA

KNOB, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

857

Murray 331532MA

NUT, PUSH

$4.99

$

Usually ships in 2-12 days

0

858

Murray 340715

BOLT,1/4-20X.63 CARR.
(Superseded to 340715MA)

$5.49

$

Usually ships in 2-12 days

0

859

Murray 71071

WASHER, FLAT .344X.69X.065
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

860

Murray 71060

WASHER, .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

861

Murray 71034

NUT, 1/4-20 HEX
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

870

Murray 333946E701MA

BRKT, CHUTE ROTATE

$33.99

$

Usually ships in 2-12 days

0

871

Murray 340720MA

BOLT, 5/16-18X.75 CARR
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

872

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

873

Murray 71060

WASHER, SPTLK .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

874

Murray 71037

NUT, 5/16-18 HEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
