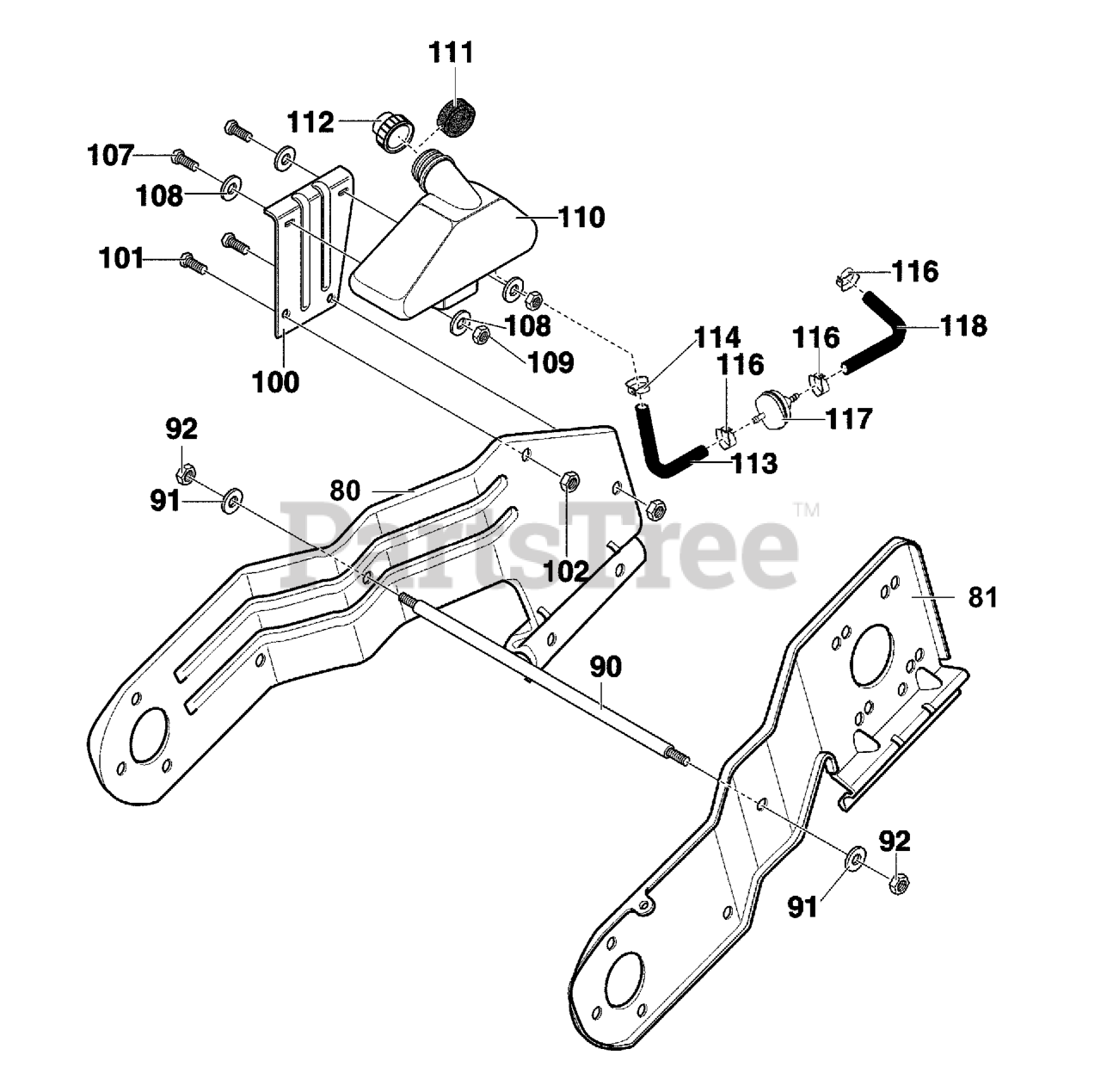

621450x4E - Murray 21" Snow Thrower (2001) Frame Components Assembly Parts Diagram

21" Snow Thrower

Frame Components Assembly Parts Diagram

  • Title

80

Murray 760272-853

FRAME, SIDE SUPT STEEL RH

$

$

Currently unavailable

81

Murray 760271-853

FRAME, SIDE SUPT STEEL LH

$

$

Currently unavailable

90

Murray 760168

ROD, SUPPORT

$

$

Currently unavailable

91

Murray 018X31MA

WASHER, HVSPTLK

$4.49

$

Usually ships in 2-12 days

0

92

Murray 780072MA

NUT, 3/8-16 REGHEX

$3.99

$

Usually ships in 2-12 days

0

100

Murray 333749-853

BRACKET, GAS TANK

$

$

Currently unavailable

101

Murray 180020

SCREW, 1/4-20X.75

$

$

Not available

102

Murray 782585

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

107

Murray 302628MA

SCREW, 1/4-20X.75

$4.49

$

In Stock, Qty 7

0

108

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

109

Murray 782585

NUT, 1/420 REGHEXCTRLK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

110

Murray 333739MA

TANK, FUEL

$120.99

$

Usually ships in 2-12 days

0

111

Murray 762224

RING, FOAM FUEL TANK

$

$

Not available

112

Murray 340299MA

CAP, GAS

$13.99

$

Usually ships in 2-12 days

0

113

Murray 323363MA

TUBING 8 IN.

$7.99

$

Usually ships in 2-12 days

0

114

Murray 47345

CLAMP, HOSE SCREW
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

116

Murray 323387MA

CLAMP, HOSE

$4.49

$

Usually ships in 2-12 days

0

117

Murray 56679MA

FILTER IN LINE
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

118

Murray 335906MA

TUBING, 6 IN.

$6.49

$

Usually ships in 2-12 days

0
