621450x4E - Murray 21" Snow Thrower (2001) Discharge Chute Parts Diagram

21" Snow Thrower

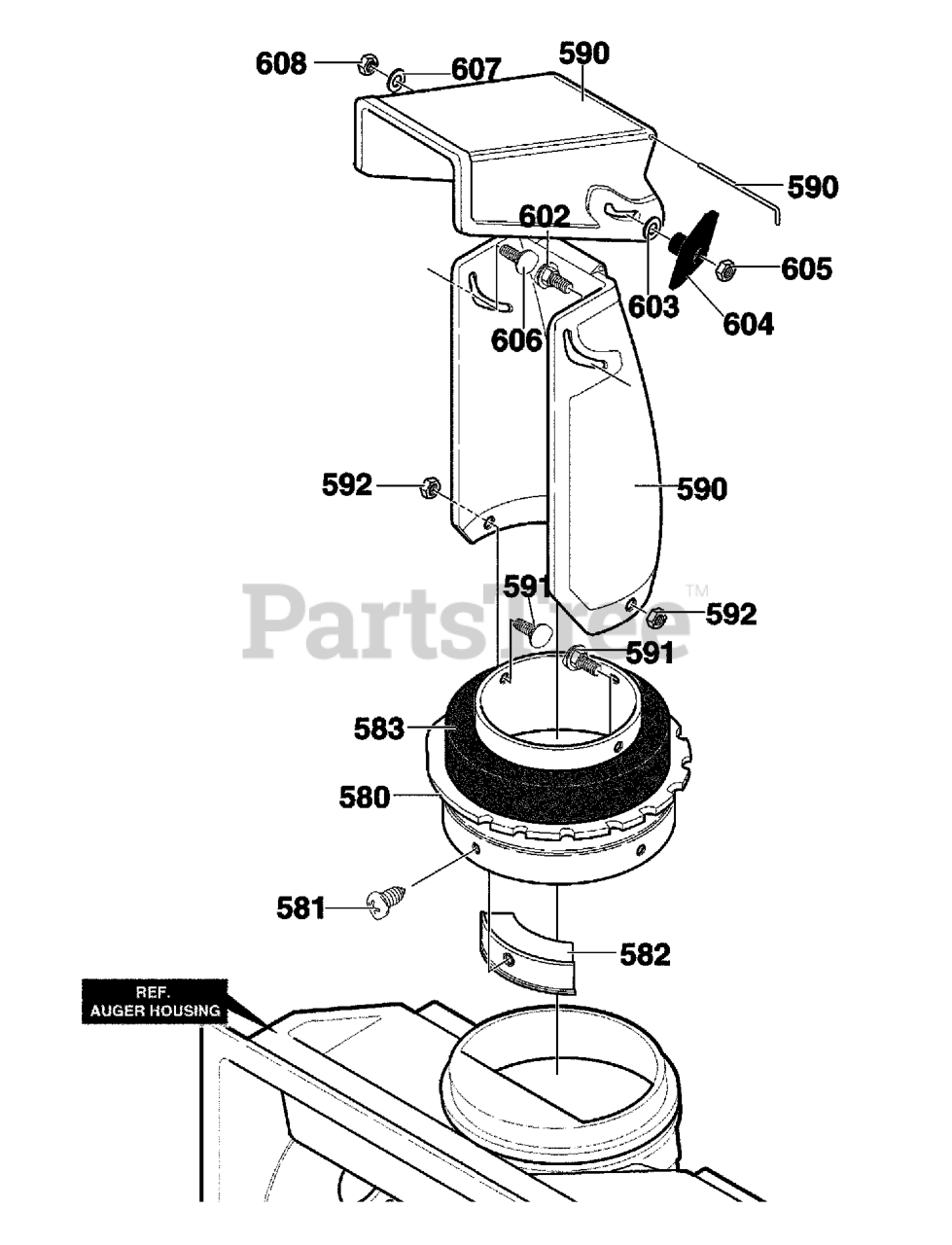

Discharge Chute Parts Diagram

  • Title
580

Murray 333859MA

RING, CHUTE

$

$

Not available

581

Murray 711752MA

SCREW, #10X.50

$4.49

$

Usually ships in 2-12 days

0

582

Murray 577021MA

GUIDE, CHUTE

$5.49

$

In Stock, Qty 8

0

583

Murray 762173MA

DONUT FOAM

$20.99

$

Usually ships in 2-12 days

0

590

Murray 762222MA

CHUTE ASSY.

$51.99

$

In Stock, Qty 17

0

591

Murray 180016MA

SCREW 1/4-20X.50

$3.99

$

In Stock, only 2 left!

0

592

Murray 46931MA

NUT, CNTRLK 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

602

Murray 302843MA

BOLT, 5/16-18X1.25 CARR.

$

$

Not available

603

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

604

Murray 13527

KNOB, T

$

$

Not available

605

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

606

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

607

Murray 46931MA

WASHER, FLAT .349X.69X.066
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

608

Murray 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Not available
