621380x4NA - Murray 21" Snow Thrower (2002) Drive Components Parts Diagram

21" Snow Thrower

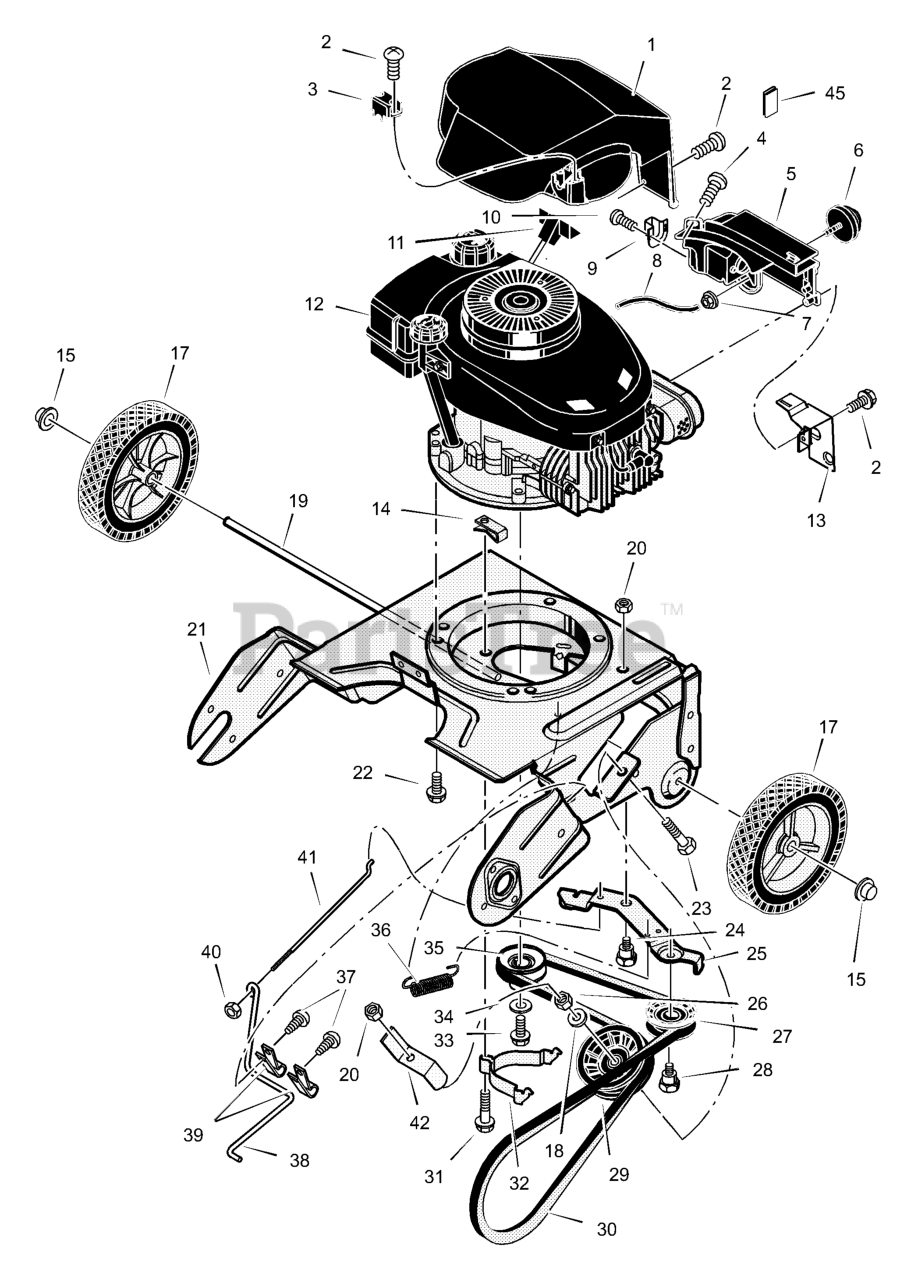

Drive Components Parts Diagram

  • Title
1

Murray 762248MA

Cover, Top

$

$

Not available

2

$7.49

$

Usually ships in 2-12 days

0

3

Murray 762273MA

Bracket, Crank Rod

$4.49

$

Usually ships in 2-12 days

0

4

$3.99

$

Usually ships in 2-12 days

0

5

Murray 762366MA

Box, Heater

$14.99

$

Usually ships in 2-12 days

0

6

Murray 762357

Primerbulb, Red

$

$

Currently unavailable

$42.99

$

Usually ships in 2-12 days

0

8

$7.99

$

In Stock, only 2 left!

0

9

Murray 762249

Deflector, Carburetor

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Murray 762358

Handle, Starter

$

$

Currently unavailable

12

Engine

$

$

Not available

13

Murray 762382

Shield Assembly, Heat

$

$

Currently unavailable

14

Murray 578109MA

Retainer

$6.49

$

In Stock, Qty 8

0

15

Murray 711627MA

Nut, Push Cap

$

$

Not available

17

Murray 760713MA

Wheel & Tire
(Superseded to 760714MA)

$

$

Not available

18

Murray 71072

Washer

$

$

Not available

19

$28.99

$

In Stock, only 1 left!

0

20

$3.99

$

Usually ships in 2-12 days

0

21

Murray 762245E245

Frame, Motor Box

$

$

Currently unavailable

22

$3.99

$

Usually ships in 2-12 days

0

23

$

$

Not available

24

Murray 712233

Bolt, Shoulder

$7.49

$

Usually ships in 2-12 days

0

25

Murray 762254 YZ

Bracket, Idler Arm

$

$

Currently unavailable

26

$3.49

$

Usually ships in 2-12 days

0

27

Murray 762257MA

Pulley, Idler -V-Belt

$18.99

$

Usually ships in 2-12 days

0

28

Murray 762258

Bolt, Shoulder

$7.49

$

Usually ships in 2-12 days

0

29

Murray 762256MA

Pulley, Flat Idler

$

$

Not available

30

$37.99

$

In Stock, only 1 left!

0

31

$3.49

$

Usually ships in 2-12 days

0

32

Murray 762267

Guide, Belt

$6.49

$

Usually ships in 2-12 days

0

33

Murray 71015

Screw

$

$

Not available

34

Murray 71063

Washer

$3.99

$

Usually ships in 2-12 days

0

35

Murray 762255MA

Pulley 2.50 X 4L .750 I.D.

$19.99

$

Usually ships in 2-12 days

0

36

$6.49

$

Usually ships in 2-12 days

0

37

$4.99

$

In Stock, only 1 left!

0

38

Murray 762288

Arm, Brake

$9.99

$

Usually ships in 2-12 days

0

39

$3.99

$

Usually ships in 2-12 days

0

40

Murray 312300MA

Nut
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

41

Murray 762287

Rod, Adjustment

$9.99

$

Usually ships in 2-12 days

0

42

Murray 762380

Guide, Belt

$31.99

$

Usually ships in 2-12 days

0

45

Murray 313057

Clip, Tinnerman

$

$

Not available

--

Murray F-021036C

Book, Instruction

$

$

Currently unavailable
