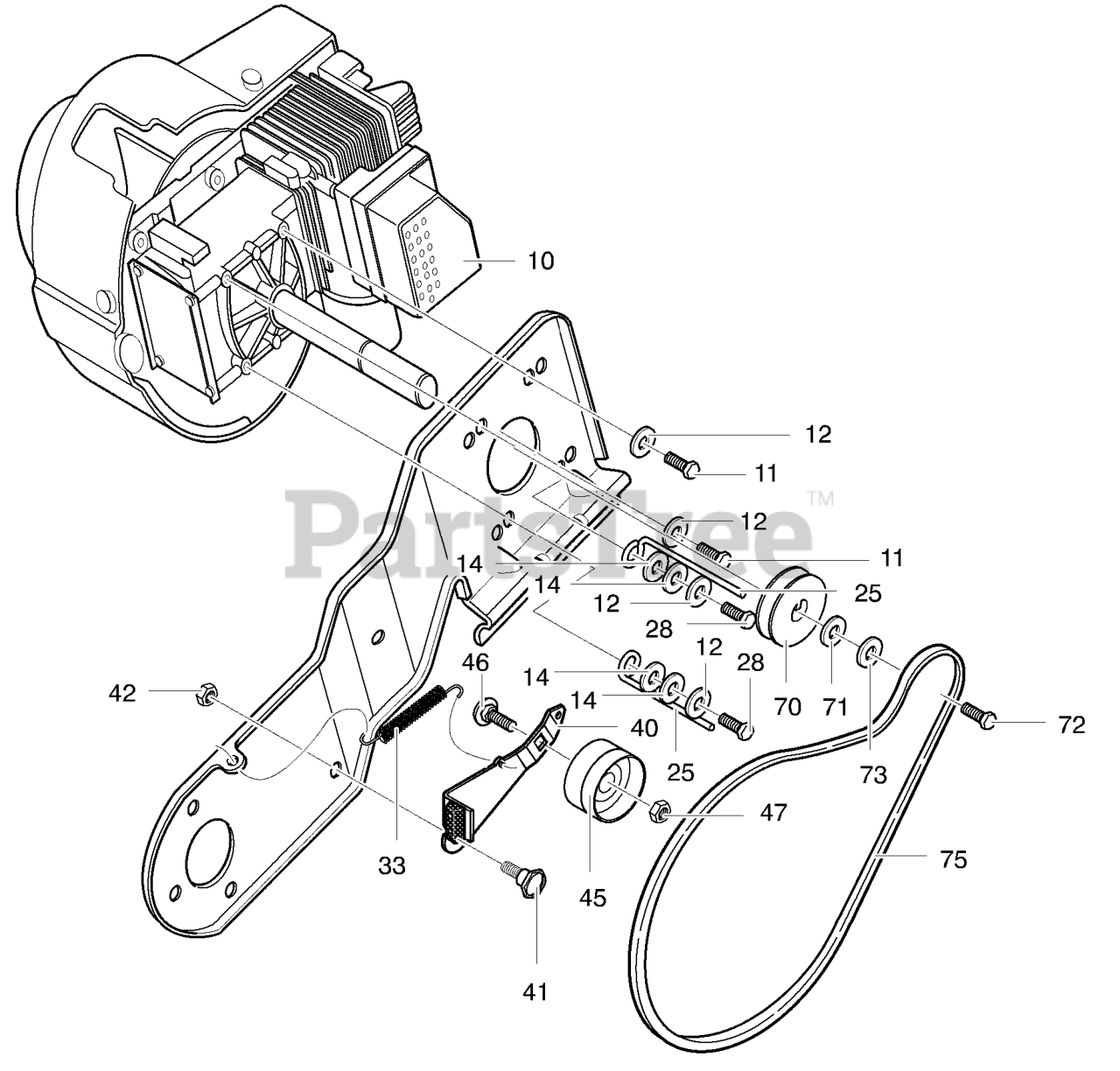

621301x89A - Yard King 21" Snow Thrower (2000) Engine Assembly Parts Diagram

21" Snow Thrower

Engine Assembly Parts Diagram

  • Title

10

ENGINE

Note: (See Engine Manual)

$

$

Not available

11

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

12

Murray 120638

WASHER

$

$

Not available

14

Murray 120393

WASHER, FLAT

$

$

Not available

25

Murray 313440MA

GUIDE, BELT

$9.99

$

Usually ships in 2-12 days

0

28

Murray 710312

SCREW, 5/16-18 x 1.00

$8.49

$

Usually ships in 2-12 days

0

33

Murray 339017MA

SPRING, IDLER BRAKE

$39.99

$

Usually ships in 2-12 days

0

40

Murray 1501013MA

ASSEMBLY, IDLER BRAKE ARM

$153.99

$

Usually ships in 2-12 days

0

41

Murray 333594MA

BOLT

$20.99

$

In Stock, only 1 left!

0

42

Murray 1498

NUT, 5/16-18

$

$

Not available

45

Murray 48924MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

46

Murray 45892MA

BOLT, CARRIAGE

$4.49

$

Usually ships in 2-12 days

0

47

Murray 41529MA

NUT, JAM

$3.99

$

In Stock, Qty 9

0

70

Murray 338849MA

PULLEY, ENGINE

$

$

Not available

71

Murray 25840

WASHER

$

$

Not available

72

Murray 181595

SCREW, 5/16-24 x .75

$

$

Not available

73

Murray 120638

WASHER

$

$

Not available

75

Murray 760928MA

BELT, V

$18.99

$

In Stock, only 1 left!

0

--

Murray F-001167M

BOOK, INSTRUCTION

$

$

Currently unavailable
