621301x89A - Yard King 21" Snow Thrower (2000) Chute Rod Assembly Parts Diagram

21" Snow Thrower

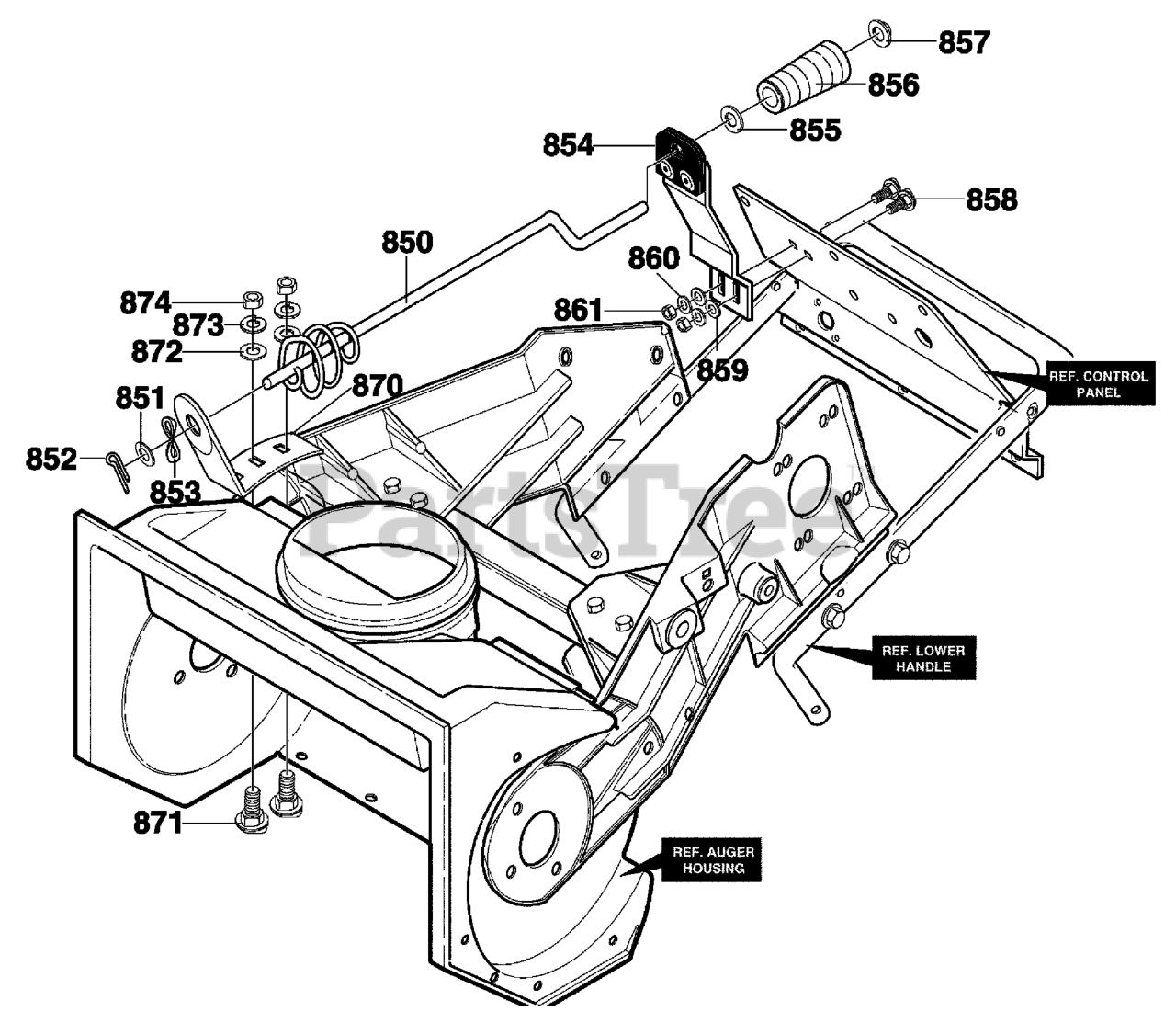

Chute Rod Assembly Parts Diagram

  • Title
850

Murray 337941

ROD, CHUTE
(Superseded to 337941MA)

$

$

Not available

851

Murray 71072

WASHER, FLAT .406X.81X.066

$

$

Not available

852

Murray 71082

PIN, COTTER

$

$

Not available

853

Murray 313431MA

WASHER CURVED

$4.99

$

In Stock, only 1 left!

0

854

Murray 335264

ASSY, CHUTE CRANK
(Superseded to 335264MA)

$

$

Not available

855

Murray 71072

WASHER, FLAT .406X.81X.066

$

$

Not available

856

Murray 57082MA

KNOB, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

857

Murray 331532MA

NUT, PUSH

$4.99

$

Usually ships in 2-12 days

0

858

Murray 3809

BOLT,1/4-20X.63 CARR.

$3.49

$

Usually ships in 2-12 days

0

859

Murray 120393

WASHER, FLAT .344X.69X.065

$

$

Not available

860

Murray 120638

WASHER, .31X.58X.08

$

$

Not available

861

Murray 071034

NUT, 1/4-20 REGHEX

$

$

Not available

870

Murray 333946-830

BRKT, CHUTE ROTATE

$1.99

$

Usually ships in 2-12 days

0

871

Murray 340720MA

BOLT, 5/16-18X.75 CARR
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

872

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

873

Murray 120638

WASHER, SPTLK .31X.58X.08

$

$

Not available

874

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
