6211 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: E0001001 - E0008843) HANDLE BARS & CONTROL LEVERS Parts Diagram

Econo-Horse Rear-Tine Tiller

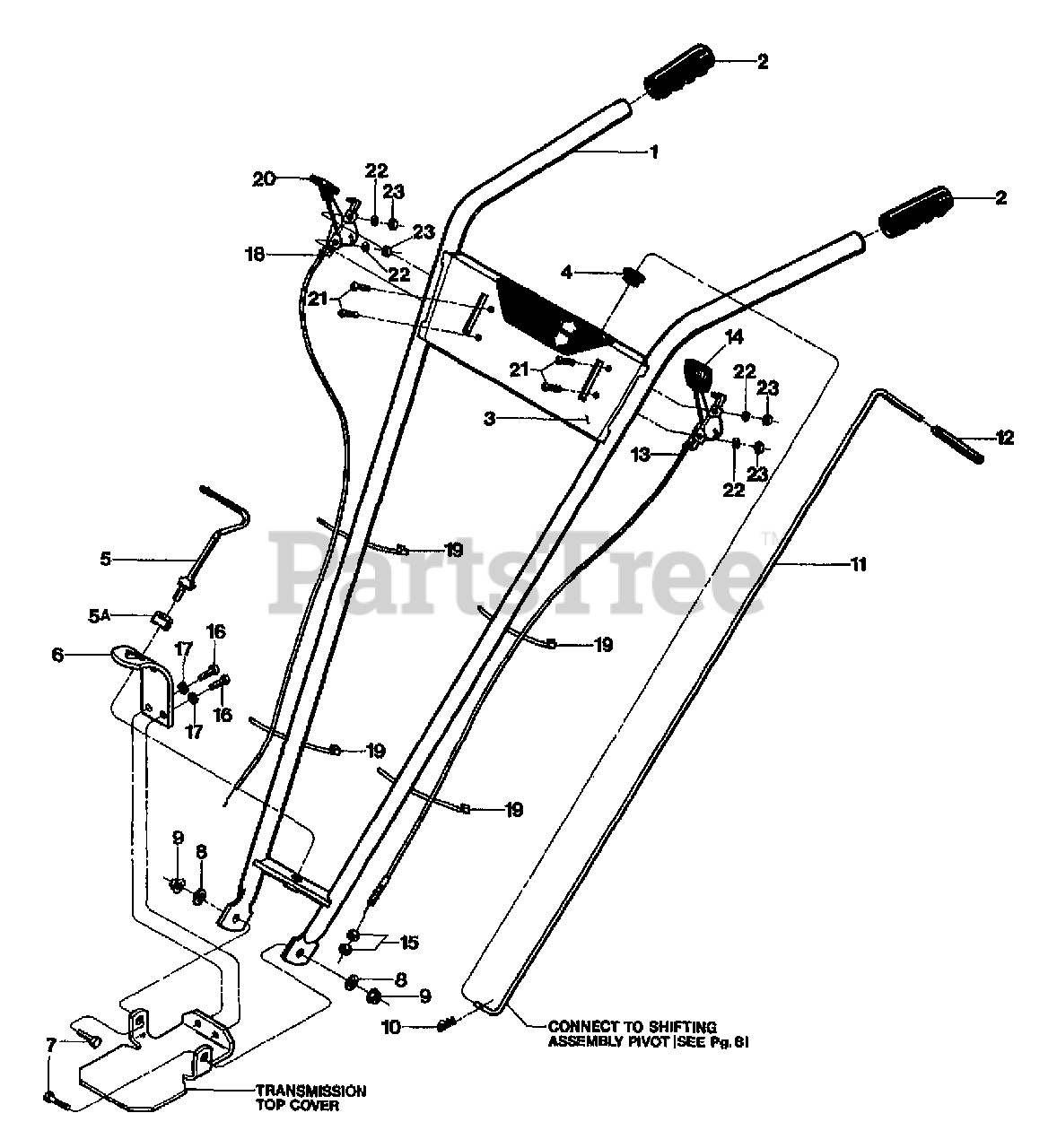

HANDLE BARS & CONTROL LEVERS Parts Diagram

  • Title
1

Troy-Bilt 2499

ASSM-HANDLEBAR (INCL. 2-5A)

$

$

Currently unavailable

2

Troy-Bilt 9118

GRIP-H/BAR SMOOTH

$

$

Currently unavailable

3

Troy-Bilt 2502

DECAL-CONTROL PANEL ECONO

$

$

Currently unavailable

4

Troy-Bilt 9211

GROMMET-PLASTIC

$

$

Currently unavailable

5

MTD 20703

ASSM-STUD H/B

$

$

Not available

5A

Troy-Bilt 9955

WASHER-1.0X.38X.375
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 8

0

6

Troy-Bilt 20753

PLATE-HANDLEBAR ADJUST

$

$

Currently unavailable

7

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

8

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 20786

ASSM-DR CONTROL ROD - COMPLETE (INCL.GRIP, #9198)

$

$

Currently unavailable

12

Troy-Bilt 9198

GRIP-CONTROL ROD

$

$

Currently unavailable

13

Troy-Bilt 10357

KIT-WHL DRIVE CABLE (INCL. 14,15,19,21-23)

$

$

Currently unavailable

14

Troy-Bilt 9057

KNOB-WHEEL DRIVE CABLE
(Superseded to GW-9057)

$8.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

16

Troy-Bilt 9709

SCR-HH 3/8-16X.75 G5 ZP

$

$

Currently unavailable

17

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

18

Troy-Bilt 9437

CABLE-THROTTLE PONY OPC

$

$

Currently unavailable

19

Troy-Bilt 9202

TIE-RED (PLASTIC)
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 9212

KNOB-THROTTLE CABLE
(Superseded to 731-0108)

$9.49

$

In Stock, only 3 left!

0

21

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

22

Troy-Bilt 9909

WASHER-LK M10

$

$

Currently unavailable

23

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
