6211 H (1690927) - Simplicity Garden Tractor, 11hp Engine Group - 6211 Parts Diagram

Garden Tractor, 11hp

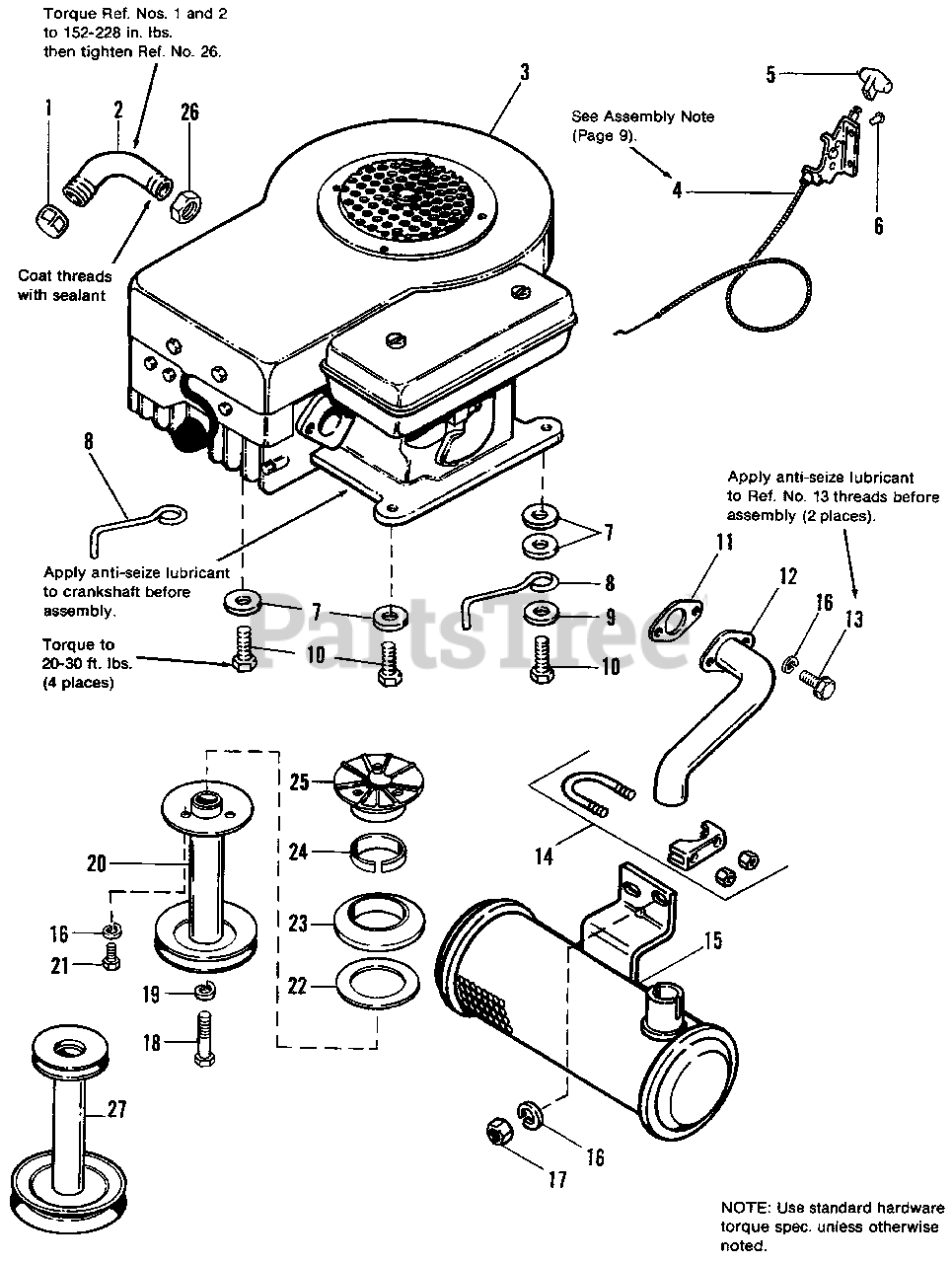

Engine Group - 6211 Parts Diagram

  • Title

1

Simplicity 1667346SM

PIPE, Cap, Hex

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 1658032SM

PIPE, Oil Drain (Includes Ref. No. 1, 2 & 26)

$21.99

$

Usually ships in 2-12 days

0

3

ENGINE ASSY., 11 HP, Briggs & Stratton, Model 252707, Type 0131-01

$

$

Not available

4

Simplicity 1687058SM

THROTTLE CONTROL ASSY.

$54.99

$

Usually ships in 2-12 days

0

5

Simplicity 1656099SM

KNOB, Throttle
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0

6

Simplicity 2824939

RIVET, Pop, 1/4 x .44

$

$

Not available

7

Simplicity 2822755

WASHER, Plain, 13/32
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

8

Simplicity 1669640

STOP, Belt, Engine

Note: Use on all except Mfg. No. 1690927

$

$

Not available

8

Simplicity 1674558SM

STOP, Belt, Engine

Note: Used on Mfg. No. 1690927

$104.99

$

Usually ships in 2-12 days

0

9

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

12

Simplicity 1669146

PIPE, Exhaust

$

$

Not available

13

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

14

Simplicity 2831893SM

CLAMP, Exhaust

$

$

Not available

15

Simplicity 1669143SM

MUFFLER

$

$

Not available

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2828038

CAPSCREW, 7/16-20 x 1-1/4

$

$

Not available

19

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

20

Simplicity 1669502SM

PULLEY ASSY., Engine

Note: Use on all except Mfg. No. 1690927

$236.99

$

Usually ships in 2-12 days

0

21

Simplicity 2836228

CAPSCREW, Socket Hd., 5/16-18 x 3/4

$

$

Not available

22

Simplicity 1669501SM

BEARING

Note: Use on all except Mfg. No. 1690927

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 1669497SM

PULLEY, Half, Lower

Note: Use on all except Mfg. No. 1690927

$67.99

$

Usually ships in 2-12 days

0

24

Simplicity 1669500SM

BEARING

Note: Use on all except Mfg. No. 1690927

$8.49

$

Usually ships in 2-12 days

0

25

Simplicity 1669495

PULLEY, Half, Upper

Note: Use on all except Mfg. No. 1690927

$

$

Not available

26

Simplicity 2832849

LOCKNUT, Conduit, 3/8

$

$

Not available

27

Simplicity 1676274SM

PULLEY ASSY., Engine

Note: Used on Mfg. No. 1690927

$271.99

$

Usually ships in 2-12 days

0
