6211 (1690732) - Simplicity Garden Tractor, 11hp Transmission Group Parts Diagram

Garden Tractor, 11hp

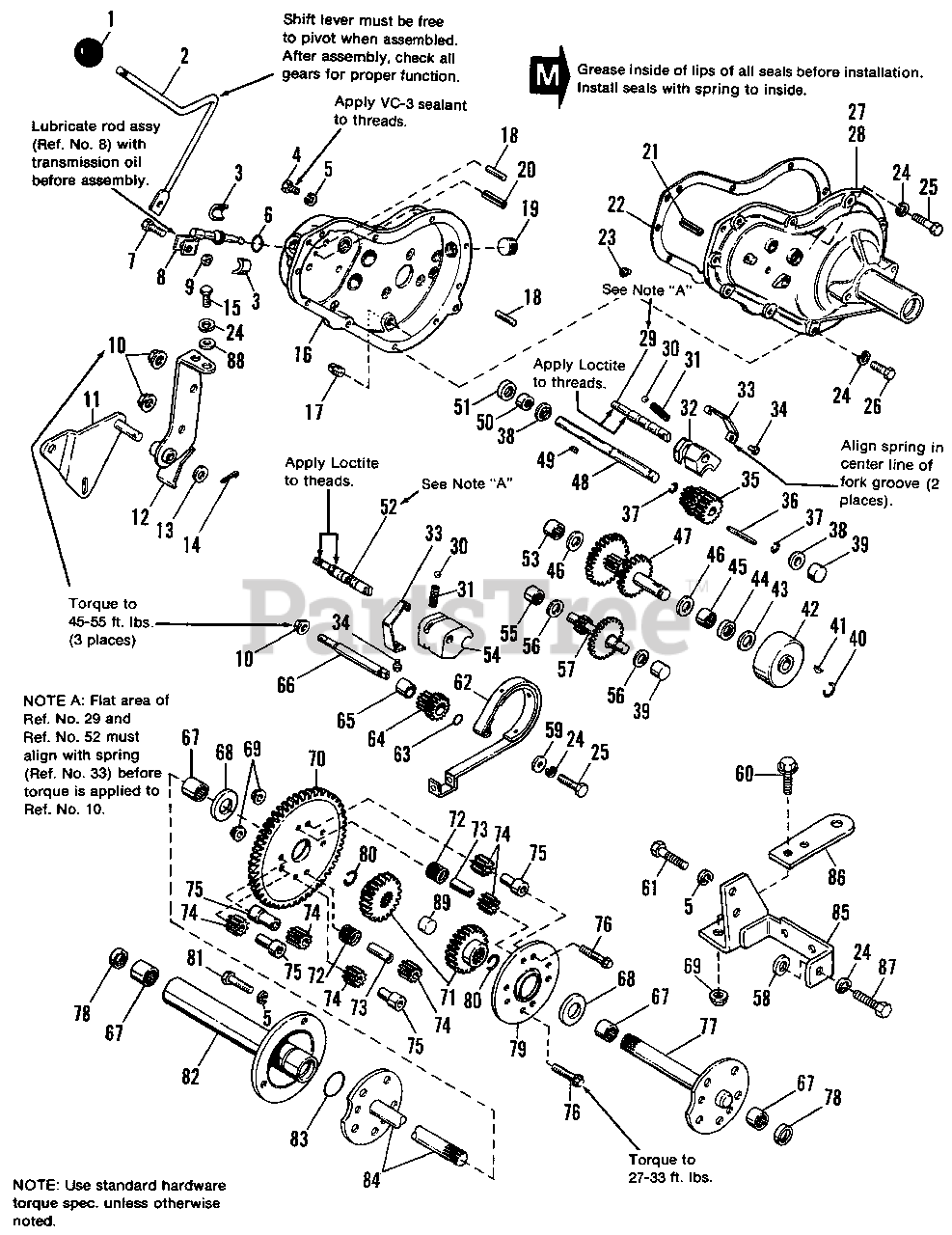

Transmission Group Parts Diagram

  • Title

1

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 1668152SM

ROD, Shift

$

$

Not available

3

Simplicity 2101042SM

BUSHING

$

$

Not available

4

Simplicity 2821210

CAPSCREW, Hex, 3/8-18 x 1

$

$

Not available

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

6

Simplicity 1665276SM

O-RING

$

$

Not available

7

Simplicity 2821960

CAPSCREW, Hex, 1/4-20 x 1

$

$

Not available

8

Simplicity 1663233SM

ROD ASSY., Pivot

$

$

Not available

9

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

10

Simplicity 2835041

LOCKNUT, Flange, Whizlock, 7/16-14

$

$

Not available

11

Simplicity 1669026SM

BRACKET ASSY., Pulley

$

$

Not available

12

Simplicity 1668919SM

SUPPORT ASSY., Transmission

$

$

Not available

13

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

15

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

16

Simplicity 1671720

CASE ASSY., Gear (Includes Ref. No. 3, 4, 8, 18, 20, 50, 53 & 55)

$

$

Not available

17

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

18

Simplicity 2827609

PIN, Spring, 3/8 Dia. x 1

$

$

Not available

19

Simplicity 2830676SM

PLUG, Pipe, 3/4

$

$

Not available

20

Simplicity 2156308SM

PIN ASSY., Roll

$9.49

$

Usually ships in 2-12 days

0

21

Simplicity 1664831

PIN ASSY., Roll

$

$

Not available

22

Simplicity 2156103SM

GASKET

$

$

Not available

23

Simplicity 2118462SM

PLUG, Vent

$

$

Not available

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2821221

CAPSCREW, Hex, 5/16-18 x 1-1/2

$

$

Not available

26

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

27

Simplicity 1664832

COVER ASSY., Gear Case (Includes Ref. No. 21, 23, 28, 39, 45 & 67)

$

$

Not available

28

COVER, Gear Case (See Ref. No. 27)

$

$

Not available

29

Simplicity 2171372SM

SHAFT, Shift, 2nd & 3rd

$96.99

$

Usually ships in 2-12 days

0

30

Simplicity 2815904SM

BALL, Shift Lock

$3.49

$

In Stock, only 2 left!

0

31

Simplicity 2171456SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

32

Simplicity 1664943

FORK, Shift, 2nd & 3rd

$

$

Not available

33

Simplicity 1657656SM

SPRING, Leaf

$13.99

$

Usually ships in 2-12 days

0

34

Simplicity 1928729SM

CAPSCREW, Hex, Wash. Hd., 5/16-18 x 5/16

$4.99

$

In Stock, only 2 left!

0

35

Simplicity 1664882SM

PINION ASSY., Drive

$262.99

$

Usually ships in 2-12 days

0

36

Simplicity 2170453SM

KEY

$15.99

$

Usually ships in 2-12 days

0

37

Simplicity 1667621SM

RING, Retaining

$6.99

$

In Stock, only 2 left!

0

38

Simplicity 1666379SM

WASHER

$28.99

$

In Stock, only 4 left!

0

39

Simplicity 1664830SM

BEARING, Roller

$

$

Not available

40

Simplicity 2827732SM

RING, Snap
(Superseded to 703979)

$4.49

$

In Stock, Qty 11

0

41

Simplicity 2830672SM

KEY, Woodruff, 3/16 x 5/8

$5.49

$

Usually ships in 2-12 days

0

42

Simplicity 1665010SM

DRUM ASSY., Brake

$195.99

$

Usually ships in 2-12 days

0

43

Simplicity 2820120

WASHER, Plain, 25/32

$

$

Not available

44

Simplicity 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

45

Simplicity 2171597SM

BEARING

$28.99

$

In Stock, only 1 left!

0

46

Simplicity 1960010SM

WASHER

$15.99

$

Usually ships in 2-12 days

0

47

Simplicity 1664870SM

PINION SHAFT & GEAR CLUSTER ASSY.

$524.99

$

Usually ships in 2-12 days

0

48

Simplicity 1685175SM

SHAFT, Input

$204.99

$

Usually ships in 2-12 days

0

49

Simplicity 2830670SM

KEY, 3/16 x 3/4

$2.49

$

Usually ships in 2-12 days

0

50

Simplicity 2156072SM

BEARING

$24.99

$

In Stock, only 1 left!

0

51

Simplicity 2156084SM

SEAL, Oil

$16.99

$

Usually ships in 2-12 days

0

52

Simplicity 1713-65

SHAFT, Shift, 1st & Rev.

$

$

Not available

53

Simplicity 2171185SM

BEARING

$12.99

$

Usually ships in 2-12 days

0

54

Simplicity 1685262

FORK, Shift, 1st & Rev.

$

$

Not available

55

Simplicity 2156073SM

BEARING

$11.99

$

Usually ships in 2-12 days

0

56

Simplicity 1960020SM

WASHER

$4.49

$

In Stock, Qty 20+

0

57

Simplicity 1664874SM

PINION SHAFT & GEAR ASSY., 1st

$179.99

$

Usually ships in 2-12 days

0

58

Simplicity 2817377

WASHER, 1/4

$

$

Not available

59

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

60

Simplicity 2828727

CAPSCREW, Hex, Flange, Whiz, 3/8-16 x 1-1/4

$

$

Not available

61

Simplicity 2821210

CAPSCREW, 3/8-16 x 1

$

$

Not available

62

Simplicity 1679355SM

BAND, Brake

$90.99

$

Usually ships in 2-12 days

0

63

Simplicity 2165006SM

O-RING

$10.99

$

Usually ships in 2-12 days

0

64

Simplicity 1658544SM

PINION ASSY., 1st & Rev.

$161.99

$

Usually ships in 2-12 days

0

65

Simplicity 1664881SM

BUSHING

$15.99

$

Usually ships in 2-12 days

0

66

Simplicity 1664865

SHAFT, 1st & Rev. Pinion

$

$

Not available

67

Simplicity 2105195SM

BEARING, Roller

$34.99

$

Usually ships in 2-12 days

0

68

Simplicity 2860200SM

WASHER

$5.49

$

In Stock, Qty 7

0

69

Simplicity 2830645

LOCKNUT, Flange, 3/8-16

$

$

Not available

70

Simplicity 1664734SM

GEAR, Drive

$359.99

$

Usually ships in 2-12 days

0

71

Simplicity 1664695

GEAR, Differential

$

$

Not available

72

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 7

0

73

Simplicity 2121083SM

SPACER, Pinion Diff.

$13.99

$

In Stock, only 1 left!

0

74

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

75

Simplicity 1664740

STUD, Diff.

$

$

Not available

76

Simplicity 1664742

CAPSCREW, Special

$

$

Not available

77

Simplicity 1671743

SHAFT, Axle, L.H. (Welded Hub)

Note: Used on Mfg. No. 1690688 after Serial No. 5317, Mfg. No. 1690695 after Serial No. 1878, Mfg. No. 1690756 after Serial No. 1183, Mfg. No. 1690757 after Serial No. 1055, Mfg. No. 1690786 after Serial No. 1928, Mfg. No. 1690787 after Serial No. 1041.

$

$

Not available

77

Simplicity 1665263

* SHAFT, Axle, L.H.

$

$

Not available

78

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

79

Simplicity 1664743

PLATE, Diff.

$

$

Not available

80

Simplicity 2827320SM

RING, Snap

$8.49

$

Usually ships in 2-12 days

0

81

Simplicity 2821966

CAPSCREW, 3/8-16 x 7/8

$

$

Not available

82

Simplicity 1665269

HOUSING & BEARING ASSY., Axle (Includes Ref. No. 67)

$

$

Not available

83

Simplicity 2156099SM

O-RING

$3.49

$

In Stock, only 1 left!

0

84

Simplicity 1671744

SHAFT, Axle, R.H.

Note: Used on Mfg. No. 1690688 after Serial No. 5317, Mfg. No. 1690695 after Serial No. 1878, Mfg. No. 1690756 after Serial No. 1183, Mfg. No. 1690757 after Serial No. 1055, Mfg. No. 1690786 after Serial No. 1928, Mfg. No. 1690787 after Serial No. 1041.

$

$

Not available

84

Simplicity 1665264

* SHAFT, Axle, R.H.

$

$

Not available

85

Simplicity 1668974

DRAWBAR ASSY.

$

$

Not available

86

Simplicity 1669131

DRAWBAR

$

$

Not available

87

Simplicity 1922127SM

CAPSCREW, Hex, 5/16 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

88

Simplicity 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

89

Simplicity 1671745

SPACER

$

$

Not available
