6210540x83NA (525/21) - Brute 21" Snow Thrower, 5.25 Gross TP (2007) Discharge Chute Parts Diagram

21" Snow Thrower, 5.25 Gross TP

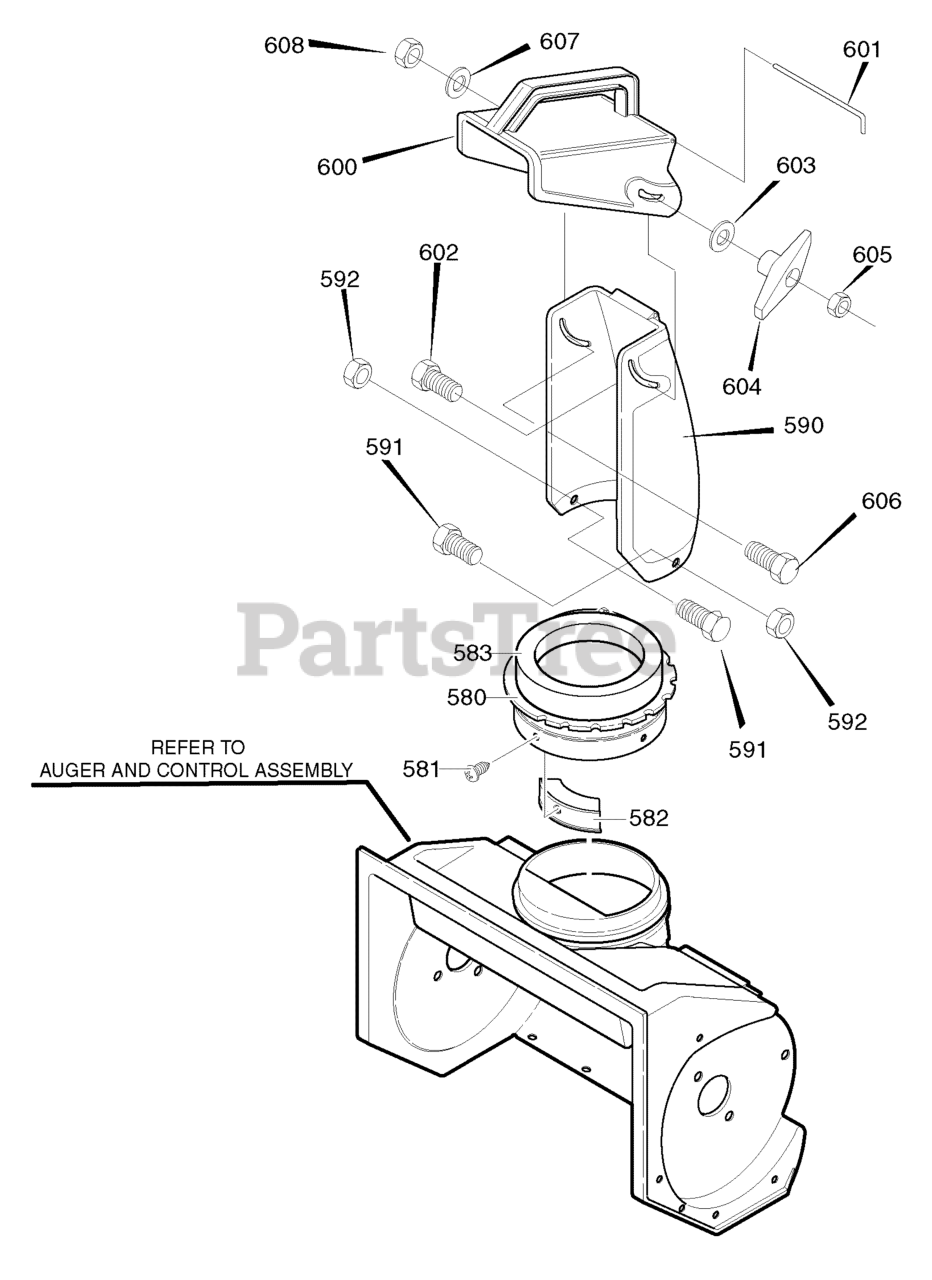

Discharge Chute Parts Diagram

  • Title

580

Murray 333859MA

RING, CHUTE

$

$

Not available

581

Murray 711752MA

SCREW, #10 X .50

$4.49

$

Usually ships in 2-12 days

0

582

Murray 577021MA

GUIDE, CHUTE

$5.49

$

In Stock, Qty 8

0

583

Murray 762173MA

DONUT FOAM

$20.99

$

Usually ships in 2-12 days

0

590

Murray 334234MA

CHUTE, DEFLECTOR LOWER

$43.99

$

Usually ships in 2-12 days

0

591

Murray 302628MA

SCREW 1/4-20 X .50

$4.49

$

In Stock, Qty 7

0

592

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

600

Murray 325847MA

CHUTE DELFECTOR, UPPER

$51.99

$

In Stock, Qty 12

0

601

Murray 308931MA

WIRE, CHUTE HINGE

$12.99

$

Usually ships in 2-12 days

0

602

Murray 302843MA

BOLT, 5/16-18 X 1.25 CARRIAGE

$

$

Not available

603

Murray 71071MA

WASHER, FLAT .349 X .69 X .066
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

604

Murray 57171MA

KNOB, WING
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 5

0

605

Murray 71037MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

606

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

607

Murray 71071MA

WASHER, FLAT .349 X .69 X .066
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

608

Murray 71391MA

NUT, 5/16-18 HEX CONTROL LOCK

$4.49

$

Usually ships in 2-12 days

0
