62064 (442) - Toro Turf Aerator (SN: 079000001 - 079999999) (1997) ENGINE-BRIGGS AND STRATTON MODEL # 92252-0129-02 Parts Diagram

Turf Aerator

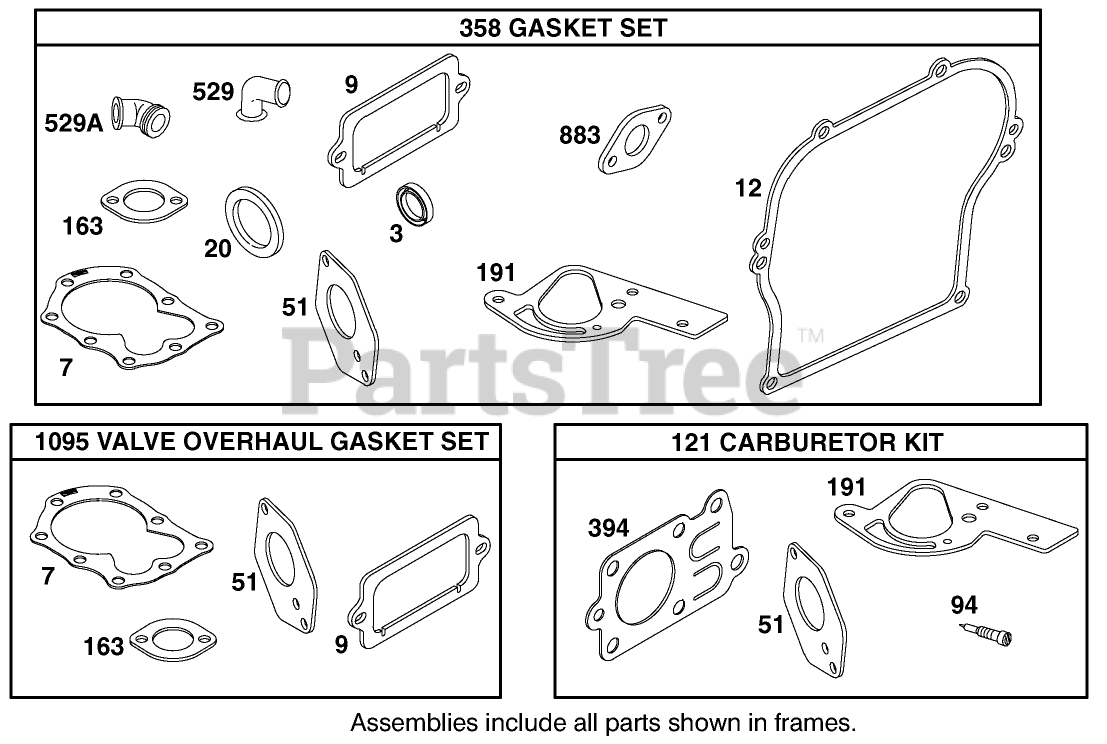

ENGINE-BRIGGS AND STRATTON MODEL # 92252-0129-02 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 495605.

$5.49

$

In Stock, Qty 17

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 17

0

7

Toro 272964

Gasket-Cylinder Head

Note: Included in Valve Overhaul Gasket Set-Part No. 498694.

$

$

Currently unavailable

7

Toro 272964

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 495605.

$

$

Currently unavailable

7

Toro 272964

Gasket-Cylinder Head

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 14

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 495605.

$3.99

$

In Stock, Qty 14

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498694.

$3.99

$

In Stock, Qty 14

0

12

Briggs & Stratton 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

12

Briggs & Stratton 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 495605.

$

$

Not available

Briggs & Stratton 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 495605.

$9.99

$

In Stock, only 3 left!

0

Briggs & Stratton 270895

Gasket-Crankcase .005"

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, only 3 left!

0

Briggs & Stratton 270896

Gasket-Crankcase .009"

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 8

0

Briggs & Stratton 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 495605.

$5.99

$

In Stock, Qty 8

0

20

Briggs & Stratton 495355

Seal-Oil
(Superseded to 692020)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 495355

Seal-Oil
(Superseded to 692020)

Note: Included in Gasket Set-Part No. 495605.

$10.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 273113

Gasket-Intake
(Superseded to 273113S)

Note: Included in Gasket Set-Part No. 495605.

$4.49

$

In Stock, Qty 19

0

51

Briggs & Stratton 273113

Gasket-Intake
(Superseded to 273113S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498694.

$4.49

$

In Stock, Qty 19

0

51

Briggs & Stratton 273113

Gasket-Intake
(Superseded to 273113S)

Note: Included in Carburetor Kit-Part No. 495606

$4.49

$

In Stock, Qty 19

0

51

Briggs & Stratton 273113

Gasket-Intake
(Superseded to 273113S)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 19

0

94

Briggs & Stratton 231533

Valve-Needle
(Superseded to 691777)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 2 left!

0

94

Briggs & Stratton 231533

Valve-Needle
(Superseded to 691777)

Note: Included in Carburetor Kit-Part No. 495606

$17.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 495606

Carburetor Kit

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, Qty 8

0

191

Briggs & Stratton 272489

Gasket-Tank
(Superseded to 692241)

Note: Included in Gasket Set-Part No. 495605.

$4.49

$

In Stock, Qty 20+

0

191

Briggs & Stratton 272489

Gasket-Tank
(Superseded to 692241)

Note: Included in Carburetor Kit-Part No. 495606

$4.49

$

In Stock, Qty 20+

0

191

Briggs & Stratton 272489

Gasket-Tank
(Superseded to 692241)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 495605

Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

Usually ships in 2-12 days

0

394

Briggs & Stratton 272538

Diaphragm
(Superseded to 272538S)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

394

Briggs & Stratton 272538

Diaphragm
(Superseded to 272538S)

Note: Included in Carburetor Kit-Part No. 495606

$3.99

$

In Stock, Qty 20+

0

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 16

0

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

Note: Included in Gasket Set-Part No. 495605.

$4.49

$

In Stock, Qty 16

0

529A

Briggs & Stratton 66578

Grommet
(Superseded to 692187)

Note: Included in Gasket Set-Part No. 495605.

$4.49

$

In Stock, Qty 20+

0

529A

Briggs & Stratton 66578

Grommet
(Superseded to 692187)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 272253

Gasket-Exhaust
(Superseded to 691881)

Note: Included in Gasket Set-Part No. 495605.

$8.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272253

Gasket-Exhaust
(Superseded to 691881)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 498694

Gasket Set-Valve Overhaul
(Superseded to 699450)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 2 left!

0
