62062 (528) - Toro Turf Dethatcher (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 192402-0645-A2 (MODEL 60061 ONLY) Parts Diagram

Turf Dethatcher

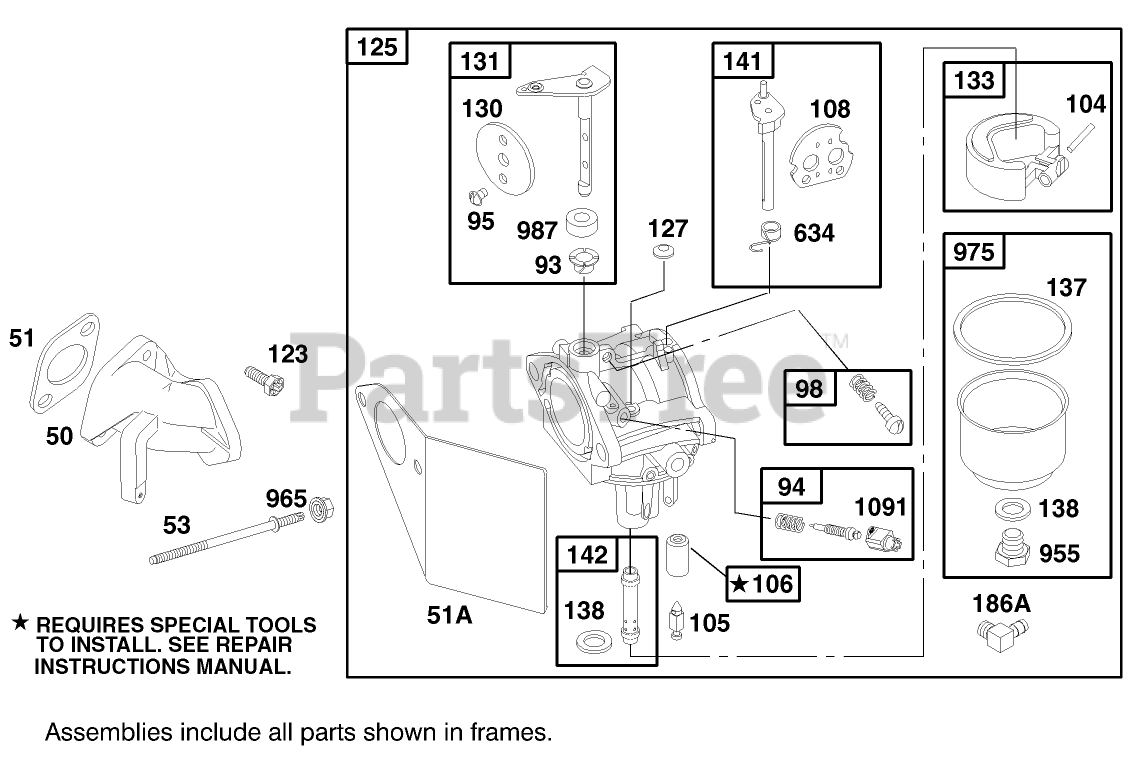

ENGINE BRIGGS & STRATTON MODEL 192402-0645-A2 (MODEL 60061 ONLY) Parts Diagram

  • Title

50

Briggs & Stratton 214170

Manifold-Intake
(Superseded to 691157)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

51

Briggs & Stratton 272707

Gasket-Intake
(Superseded to 691885)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 8

0

51

Briggs & Stratton 272707

Gasket-Intake
(Superseded to 691885)

Note: Included in Valve Overhaul Gasket Set-Part No. 498534.

$4.99

$

In Stock, Qty 8

0

51

Briggs & Stratton 272707

Gasket-Intake
(Superseded to 691885)

Note: Included in Gasket Set-Part No. 497070.

$4.99

$

In Stock, Qty 8

0

51A

Briggs & Stratton 272708

Gasket-Intake
(Superseded to 691886)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

51A

Briggs & Stratton 272708

Gasket-Intake
(Superseded to 691886)

Note: Included in Carburetor Kit-Part No. 497578.

$

$

Not available

51A

Briggs & Stratton 272708

Gasket-Intake
(Superseded to 691886)

Note: Included in Carburetor Gasket Kit-Part No. 497069.

$

$

Not available

53

Briggs & Stratton 94778

Stud-Carb. Mounting
(Superseded to 691672)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

93

Briggs & Stratton 281346

Bushing-Throttle
(Superseded to 690602)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 281346

Bushing-Throttle
(Superseded to 690602)

Note: Included in Carburetor Kit-Part No. 497578.

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498836

Valve-Idle Adjustment

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Kit-Part No. 497578.

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Kit-Part No. 497578.

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231935

Valve-Needle
(Superseded to 691782)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, Qty 8

0

105

Briggs & Stratton 231935

Valve-Needle
(Superseded to 691782)

Note: Included in Carburetor Kit-Part No. 497578.

$18.99

$

In Stock, Qty 8

0

106

Briggs & Stratton 231856

Seat-Inlet
(Superseded to 691780)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 2 left!

0

106

Briggs & Stratton 231856

Seat-Inlet
(Superseded to 691780)

Note: Included in Carburetor Kit-Part No. 497578.

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

123

Briggs & Stratton 94616

Screw-Elbow Mtg
(Superseded to 690953)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 498838

Carburetor

Note: Obtain parts from www.briggsandstratton.com

$245.99

$

Usually ships in 2-12 days

0

127

Plug-Welch (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 497578.

$

$

Not available

130

Briggs & Stratton 224668

Valve-Throttle
(Superseded to 690468)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 497579

Shaft-Throttle
(Superseded to 693602)

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Kit-Part No. 497578.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Kit-Part No. 497069.

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Kit-Part No. 497578.

$5.49

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Kit-Part No. 497069.

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 497043

Shaft-Choke

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 2 left!

0

142

Briggs & Stratton 497659

Nozzle-Carburetor (Standard)
(Superseded to 691430)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497660

Nozzle-Carburetor (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 493496

Connector-Fuel
(Superseded to 692317)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 494455

Seal-Choke Shaft
(Superseded to 690802)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 494455

Seal-Choke Shaft
(Superseded to 690802)

Note: Included in Carburetor Kit-Part No. 497578.

$9.49

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 94642

Plug
(Superseded to 691657)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 94010

Nut
(Superseded to 690958)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 495933

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Part No. 497578.

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 281364

Cap-Limiter
(Superseded to 691333)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0
