62060 (205) - Toro Turf Seeder (SN: 089000001 - 089999999) (1998) REEL ASSEMBLY Parts Diagram

Turf Seeder

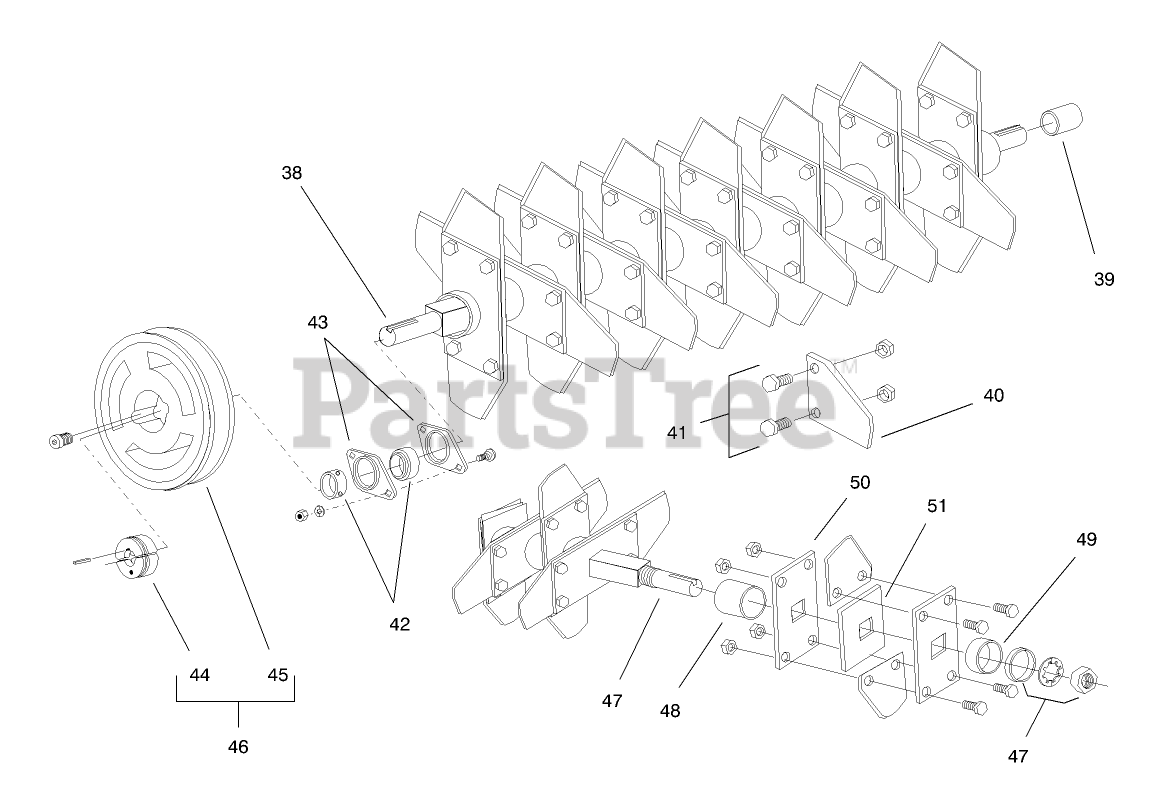

REEL ASSEMBLY Parts Diagram

  • Title

38

Toro T5049

ASSEMBLY - REEL

$824.99

$

Usually ships in 3-6 days

0

Toro T5940

ASSEMBLY - REEL

Note: Not illustrated

$1188.99

$

Usually ships in 3-6 days

0

Toro T5942

ASSEMBLY - REEL

Note: Not illustrated

$1399.99

$

Usually ships in 3-6 days

0

39

Toro T5005

CAP

$

$

Not available

40

Toro T5970

BLADE SET

$

$

Not available

41

Toro T5075

KIT - BOLT

$

$

Not available

42

Toro T0315

BEARING

$

$

Not available

43

Toro T5185

KIT - STAMPING

$

$

Not available

44

Toro T0347

BUSHING

$

$

Not available

45

Toro T0349

V-PULLEY

$

$

Not available

46

Toro T5169

V-PULLEY

$

$

Not available

47

Toro T5061

SHAFT

$

$

Not available

48

Toro T5064

SPACER

$

$

Not available

49

Toro T5065

END RING

$

$

Not available

50

Toro T5062

PLATE

$

$

Not available

51

Toro T5063

PLATE

$

$

Not available

Toro T8523

KIT - DECAL

Note: Not illustrated

$

$

Not available

Toro T8528

Decal Kit-Seeder

Note: Not illustrated

$

$

Not available

Toro 62069

Flail Reel Kit (Optional)

Note: Not illustrated

$

$

Currently unavailable

Toro 62069

Flail Reel Kit (Optional)

Note: Option To Convert Seeder With Hopper To Power Rake

$

$

Currently unavailable
