62040 (T 4000 D) - Toro Generator (SN: 008000001 - 008999999) (1988) GENERATOR ASSEMBLY Parts Diagram

Generator

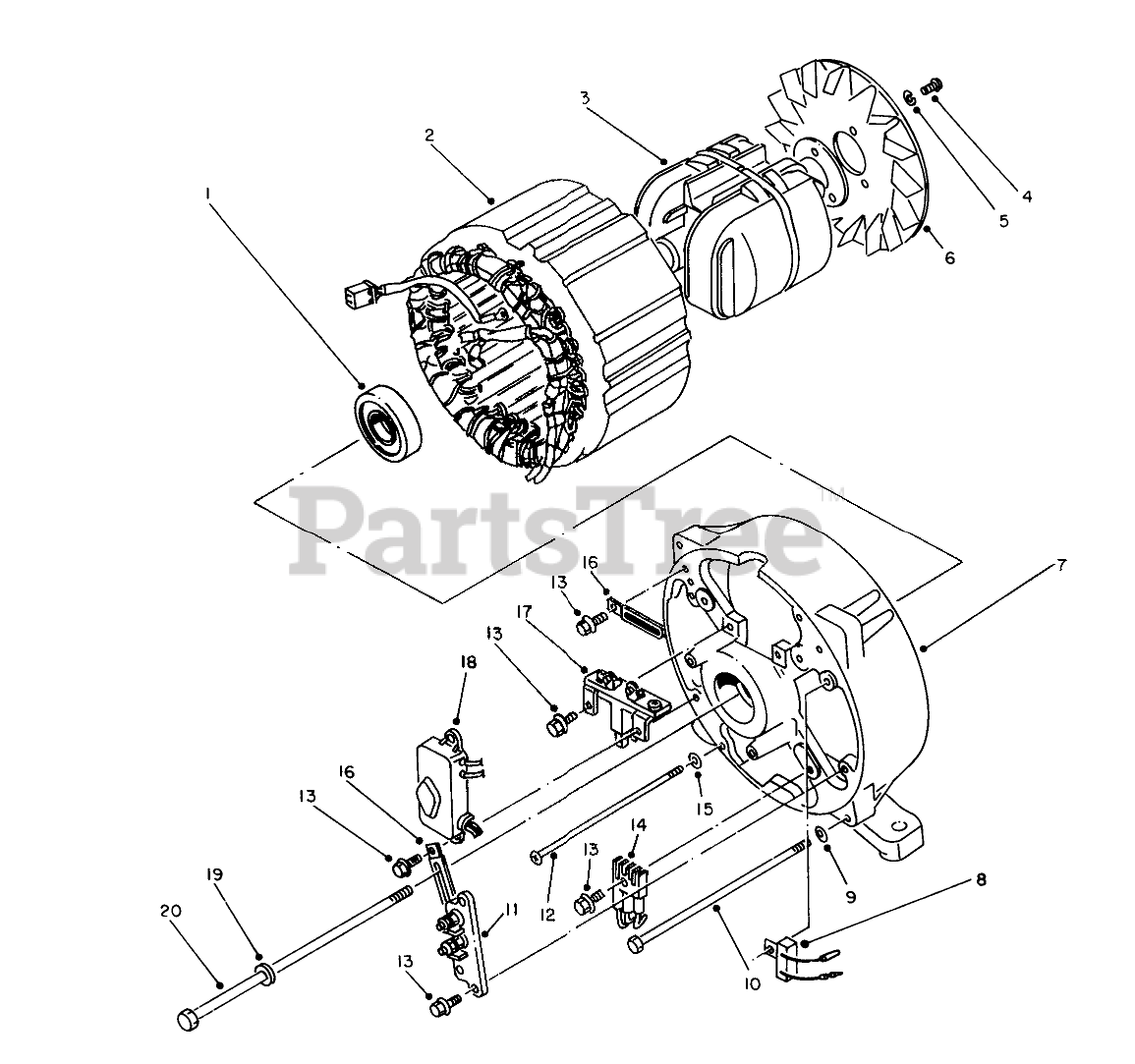

GENERATOR ASSEMBLY Parts Diagram

  • Title
1

Toro 50-4690

Bearing

$

$

Not available

2

Toro 50-9080

Stator

$

$

Not available

3

Toro 50-8930

Rotor

$

$

Not available

4

Toro 50-0280

SCREW

$

$

Not available

5

Toro 81-1380

Washer

$

$

Not available

6

$

$

Not available

7

Toro 50-8920

Bracket-Rear

$

$

Not available

8

Toro 50-9090

Register

$

$

Not available

9

Toro 50-0620

Washer

$

$

Not available

10

Toro 50-9020

BOLT (6X171)

$

$

Not available

11

Toro 50-8990

Terminal

$

$

Not available

12

Toro 50-9040

Screw

$

$

Not available

13

$

$

Not available

14

Toro 50-8980

Diode

$

$

Not available

15

Toro 50-0610

WASHER

$

$

Not available

16

Toro 50-1070

Clamp

$

$

Not available

17

Toro 50-8940

Holder-Brush

$

$

Not available

18

Toro 50-8960

Regulator-Voltage

$

$

Not available

19

Toro 50-9010

Washer

$

$

Not available

20

$

$

Not available

Toro 50-8910

Generator Assembly (120V&240V)(Incl. Ref. #1-20)

$

$

Not available
