62040 (T 4000 D) - Toro Generator (SN: 008000001 - 008999999) (1988) ENGINE COVER ASSEMBLY Parts Diagram

Generator

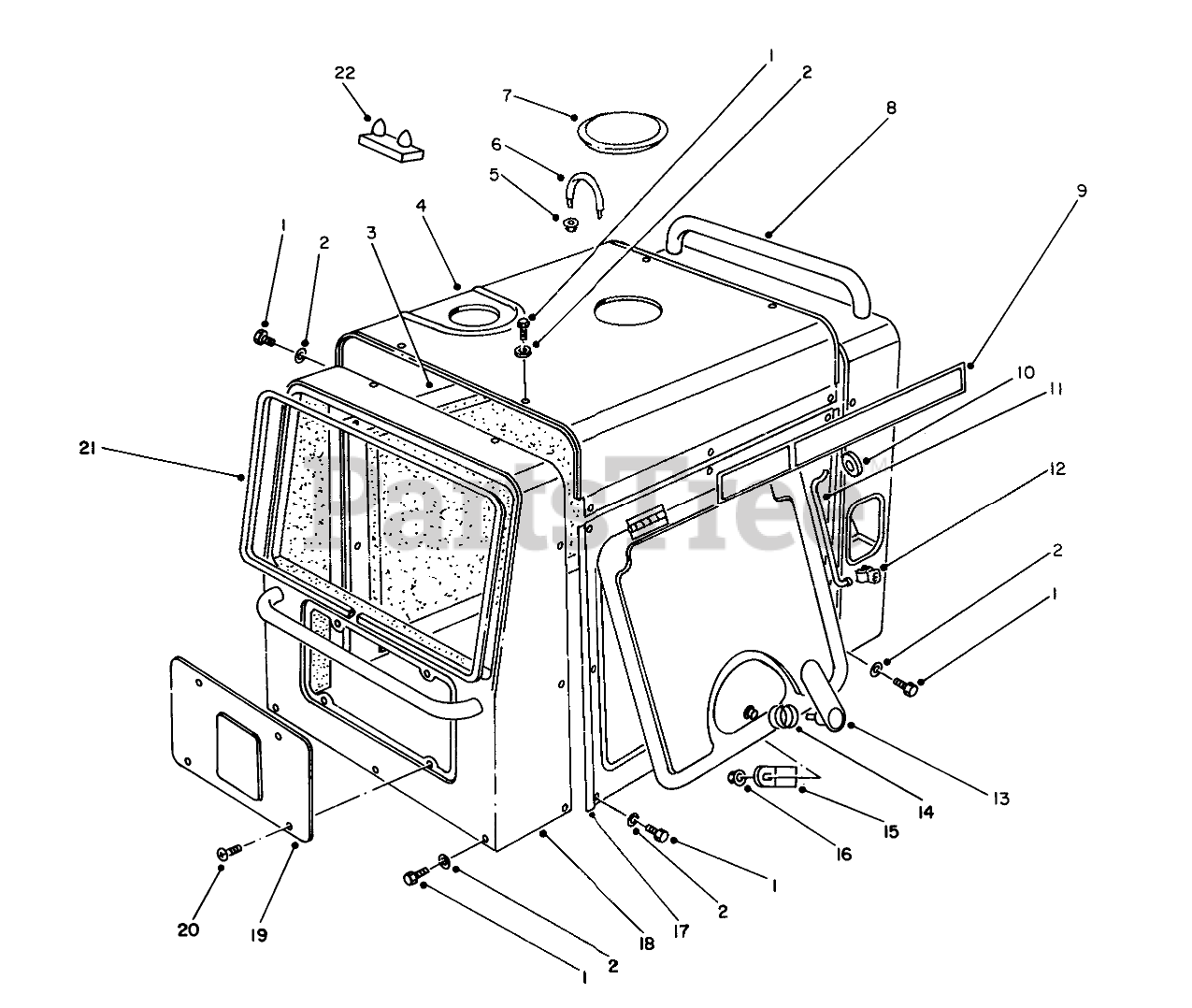

ENGINE COVER ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 50-8390

Washer

$

$

Not available

3

Toro 50-8520

Cover L.H.

$

$

Not available

4

Toro 50-8530

Cover-Upper

$

$

Not available

5

$

$

Not available

6

Toro 50-8550

U-Bolt

$

$

Not available

7

$

$

Not available

8

Toro 50-8440

Cover-Rear

$

$

Not available

9

Toro 50-8560

Decal-Toro

$

$

Not available

10

Toro 50-8470

Grommet

$

$

Not available

11

Toro 50-8460

Rod-Door Stop

$

$

Not available

12

Toro 50-8480

Clamp

$

$

Not available

13

Toro 50-8490

Handle-Door

$

$

Not available

14

Toro 55-2600

Spring

$

$

Not available

15

Toro 50-8500

Plate-Handle

$

$

Not available

16

$6.99

$

In Stock, Qty 5

0

17

Toro 50-8450

Cover R.H.

$

$

Not available

18

Toro 50-8400

Cover-Front

$

$

Not available

19

Toro 50-8410

Lid-Terminal

$

$

Not available

20

Toro 50-8420

Screw

$

$

Not available

21

Toro 50-8430

Seal-Front Cover

$

$

Not available

22

Toro 70-0340

Cushion

$

$

Not available
