62040 (T 4000 D) - Toro Generator (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

Generator

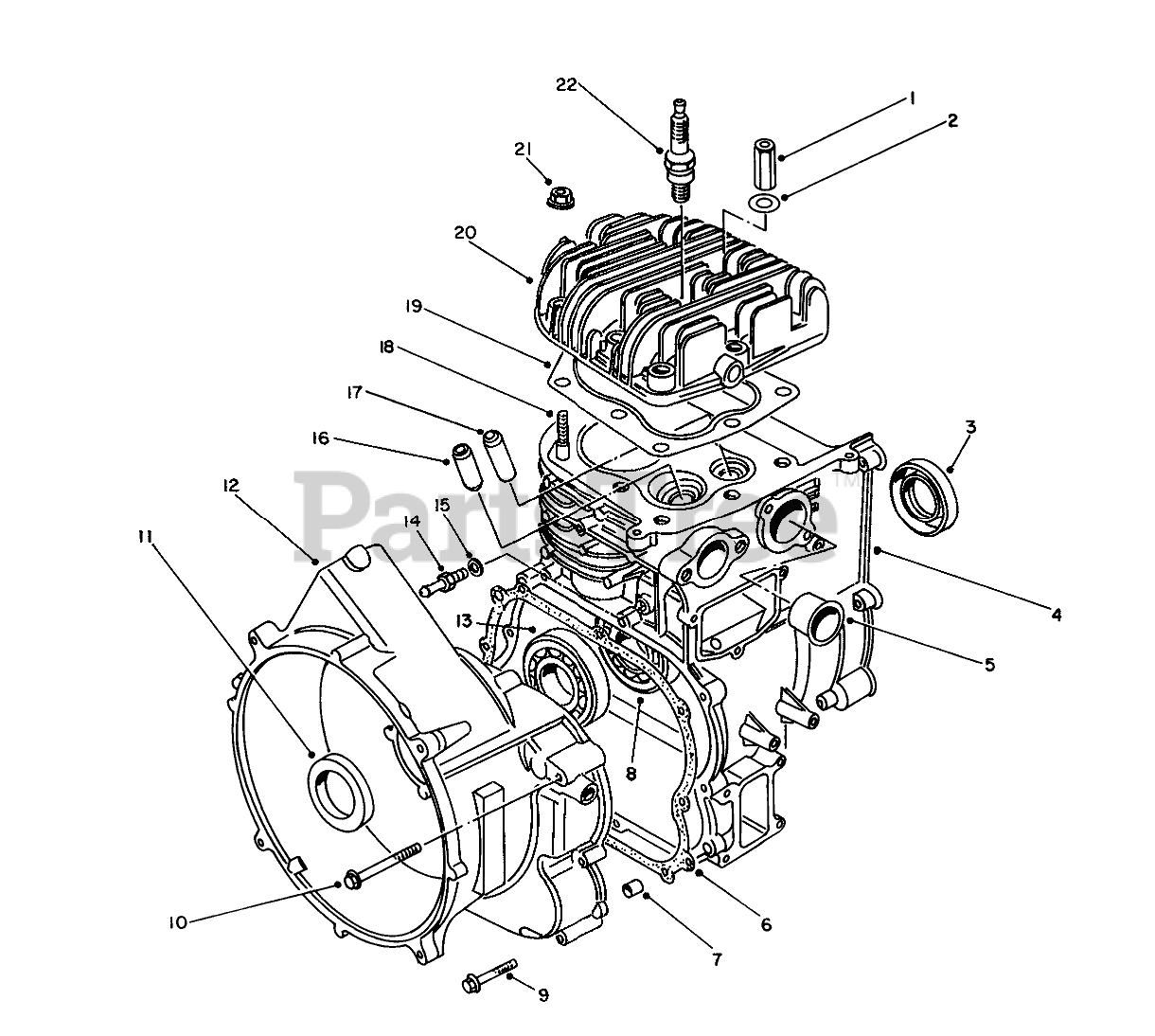

ENGINE ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 50-6060

Washer

$

$

Not available

3

Toro 50-4720

OIL SEAL

$

$

Not available

4

Toro 50-6080

Cylinder Assembly

$

$

Not available

5

Toro 50-6270

Exhaust Guide

$

$

Not available

6

Toro 50-6120

Gasket

$

$

Not available

7

$

$

Not available

8

Toro 50-4680

Screw

$

$

Not available

9

$

$

Not available

10

$

$

Not available

11

Toro 50-4720

OIL SEAL

$

$

Not available

12

Toro 50-6280

Cover Assembly

$

$

Not available

13

Toro 50-4680

Screw

$

$

Not available

14

Toro 55-2340

Union

$

$

Not available

15

Toro 70-0480

Gasket

$

$

Currently unavailable

16

Toro 50-1340

Bolt
(Superseded to 50-6110)

$

$

Not available

17

Toro 50-4850

VALVE GUIDE

$

$

Not available

18

Toro 50-6040

Stud Bolt

$

$

Not available

19

Toro 50-6020

CYL HEAD GASKET

$

$

Not available

20

Toro 55-2310

Head-Cylinder (53.8CC)

$

$

Not available

21

$

$

Not available

22

Toro 50-1160

SPARK PLUG

$

$

Not available
