62040 (T 4000 D) - Toro Generator (SN: 008000001 - 008999999) (1988) CRANKSHAFT ASSEMBLY Parts Diagram

Generator

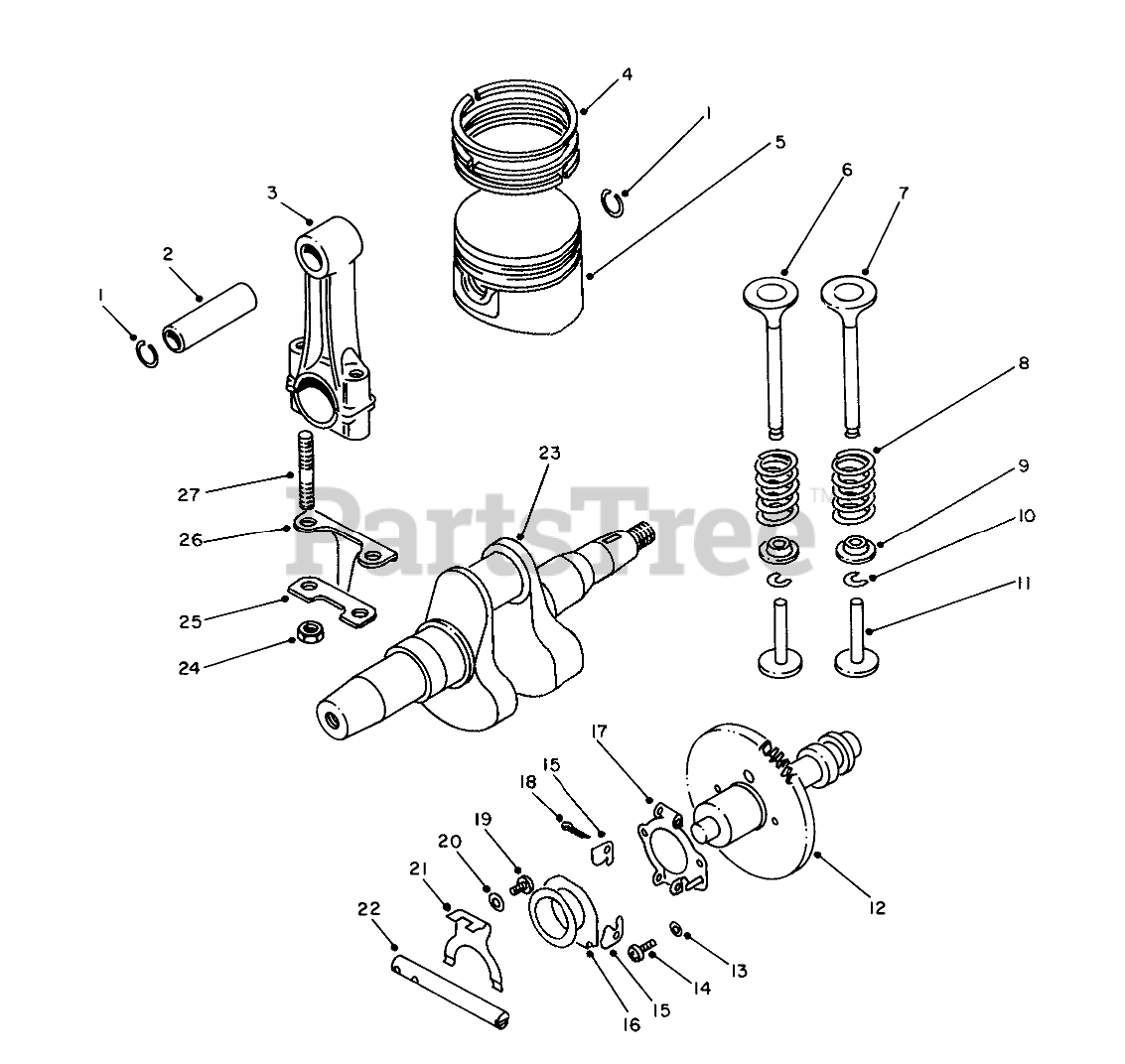

CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 50-6510

Snap Ring

$

$

Not available

2

Toro 50-6520

Pin-Piston

$

$

Not available

3

Toro 50-6530

Connecting Rod Assembly (Incl. Ref. #24-27)

$

$

Not available

4

Toro 50-6500

Ring Set

$

$

Not available

Toro 55-2380

Ring Set-Piston (OS.0.25)(Optional)

$

$

Not available

Toro 55-2390

Ring Set-Piston (OS.0.5)(Optional)

$

$

Not available

5

Toro 50-6490

Piston

$

$

Not available

Toro 55-2360

Piston (OS.0.25)(Optional)

$

$

Not available

Toro 55-2370

Piston (OS.0.5)(Optional)

$

$

Not available

6

Toro 50-6670

Valve-Exhaust

$

$

Not available

7

Toro 50-6660

Valve-Intake

$

$

Not available

8

Toro 50-6630

Spring-Valve

$

$

Not available

9

Toro 50-2140

Retainer

$

$

Not available

10

Toro 50-2160

Cotter

$

$

Not available

11

Toro 50-6600

Tappet (L:48.3)

$

$

Not available

Toro 50-6610

Tappet (L:48.23)

$

$

Not available

Toro 50-6620

Tappet (L:48.37)

$

$

Not available

12

Toro 55-2400

Cam Shaft

$

$

Not available

13

Toro 50-6720

Lockwasher

$

$

Not available

14

Toro 50-6710

Screw

$

$

Not available

15

Toro 50-3070

ARM

$

$

Not available

16

Toro 50-3110

Spacer

$

$

Not available

17

Toro 50-6700

Bracket

$

$

Not available

18

Toro 50-6680

Cotter Pin

$

$

Not available

19

Toro 50-6760

Screw

$

$

Not available

20

Toro 50-6750

Washer

$

$

Not available

21

Toro 50-3150

Plate-Shift

$

$

Not available

22

Toro 50-6770

Shaft-Throttle Return

$

$

Not available

23

Toro 50-6580

Crankshaft

$

$

Not available

24

Toro 50-6560

Nut

$

$

Not available

25

Toro 50-6540

LOCK PLATE

$

$

Not available

26

Toro 50-6570

Plate-Splasher

$

$

Not available

27

Toro 50-4710

BOLT

$

$

Not available
