62040 (T 4000 D) - Toro Generator (SN: 008000001 - 008999999) (1988) CARBURETOR ASSEMBLY Parts Diagram

Generator

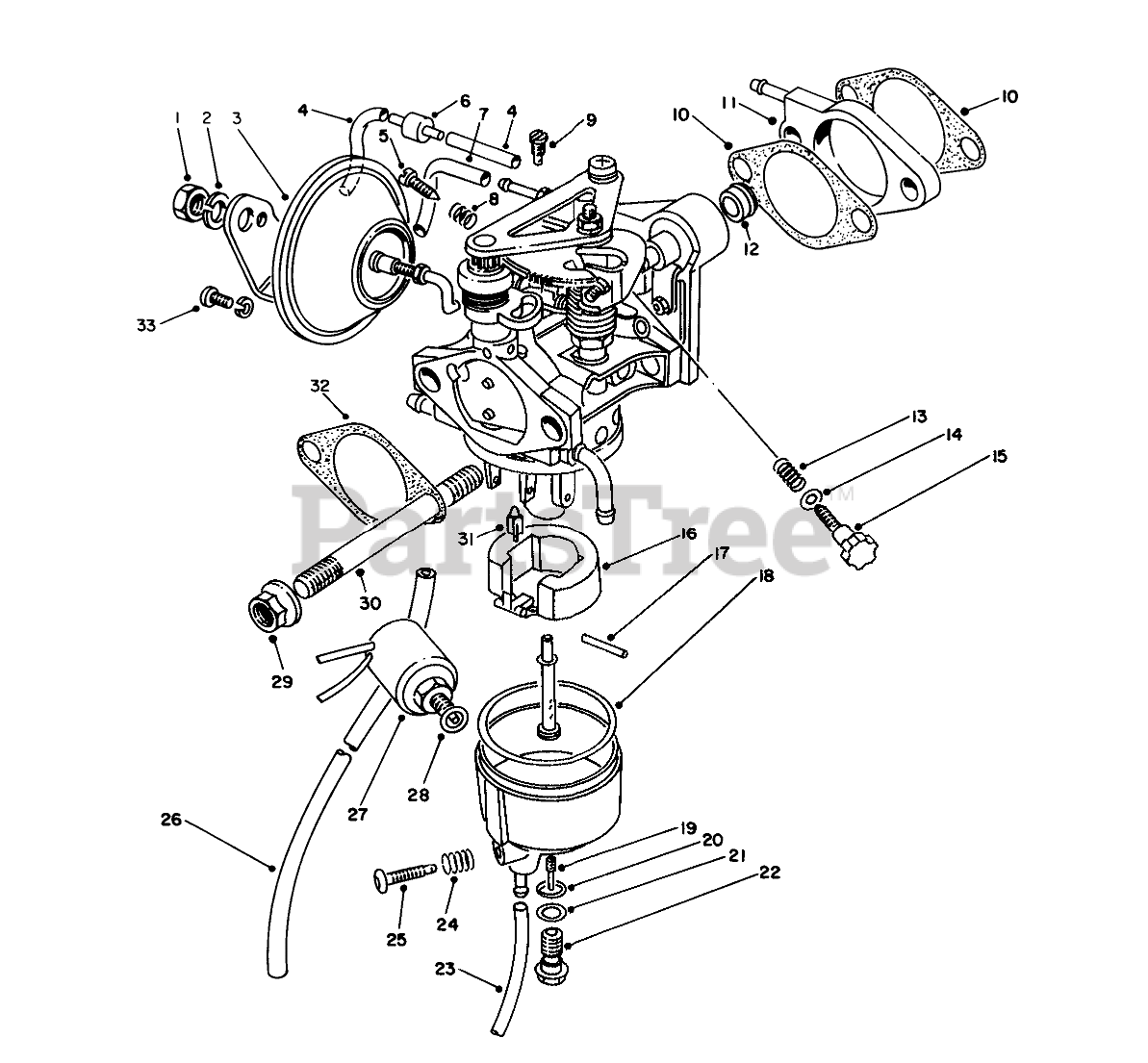

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 50-6970

Nut

$

$

Not available

2

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

3

Toro 50-6950

Depression Chamber

$

$

Not available

4

Toro 55-2500

Hose

$

$

Not available

5

Toro 50-6840

Screw
(Superseded to 50-2350)

$

$

Not available

6

Toro 55-2490

Valve-Delay

$

$

Not available

7

Toro 50-6920

HOSE

$

$

Not available

8

Toro 50-2340

SPRING

$

$

Not available

9

Toro 50-6850

PILOT JET (65)

$

$

Not available

Toro 55-2420

Jet-Pilot (50)

$

$

Not available

10

Toro 55-2450

Gasket-Carburetor (ID:27)

$

$

Not available

11

Toro 55-2460

Insulator-Carburetor

$

$

Not available

12

Toro 55-2480

Cover (W:3.5)

$

$

Not available

13

Toro 50-7070

SPRING

$

$

Not available

14

Toro 50-7060

WASHER (4.2X8X0.5)

$

$

Not available

15

Toro 50-7050

Screw-Idle Adjusting

$

$

Not available

16

Toro 50-6820

Float

$

$

Not available

17

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

18

Toro 50-6790

Gasket

$

$

Not available

19

Toro 50-6890

Jet-Main (105)

$

$

Not available

20

Toro 50-6860

0-Ring

$

$

Not available

21

Toro 50-6870

Washer

$

$

Not available

22

Toro 50-6880

Holder

$

$

Not available

23

Toro 50-7030

HOSE

$

$

Not available

24

Toro 50-6940

Spring

$

$

Not available

25

Toro 50-6930

Screw

$

$

Not available

26

Toro 55-2430

Hose

$

$

Not available

27

Toro 50-6910

Solenoid

$

$

Not available

28

Toro 50-6900

Washer

$

$

Not available

29

Toro 50-7010

NUT

$

$

Not available

30

Toro 50-7020

Stud Bolt

$

$

Not available

31

Toro 50-6800

Needle

$

$

Not available

32

Toro 50-6990

Gasket

$

$

Not available

33

Toro 50-0280

SCREW

$

$

Not available

Toro 55-2410

CARB ASM

$

$

Not available
