62040 (T 4000 D) - Toro Generator (SN: 006000001 - 006999999) (1986) STARTER MOTOR ASSEMBLY Parts Diagram

Generator

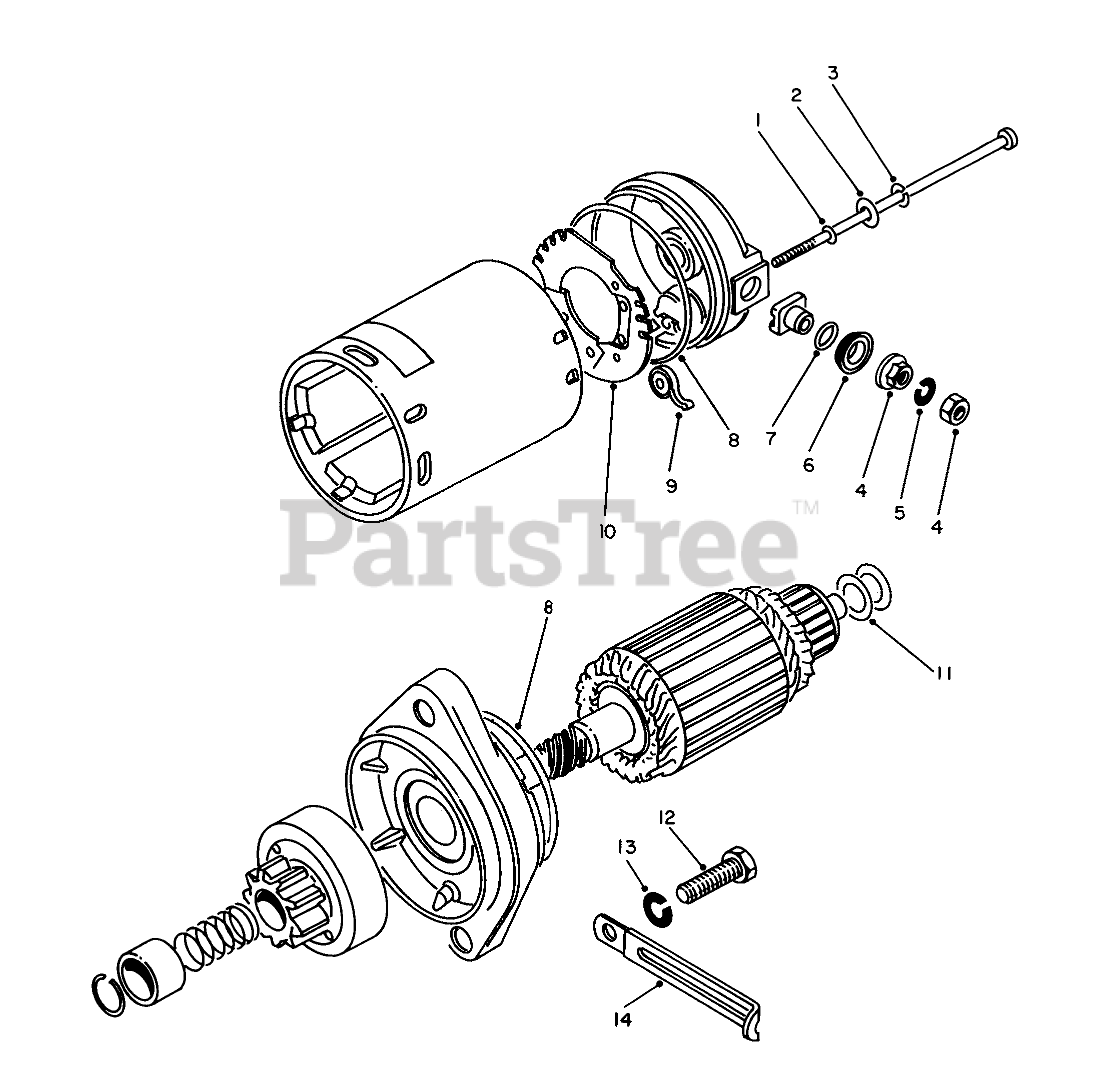

STARTER MOTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 50-7450

0-Ring

$

$

Not available

2

Toro 50-7440

Washer

$

$

Not available

3

Toro 81-1380

Washer

$

$

Not available

4

$

$

Not available

5

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

6

Toro 50-7410

Bushing

$

$

Not available

7

Toro 50-7430

0 Ring

$

$

Not available

8

Toro 50-7420

0 Ring

$

$

Not available

9

Toro 50-7510

Spring

$

$

Not available

10

Toro 50-7500

Holder Assembly-Brush (Incl. Ref. #9)

$

$

Not available

11

$

$

Not available

12

$

$

Not available

13

Toro 50-7540

Lockwasher

$

$

Not available

14

Toro 50-7520

Clamp

$

$

Not available

Toro 50-7400

Motor Assembly-Starting (Incl. Ref. #1-11)

Note: Not illustrated

$

$

Not available
