62040 (T 4000 D) - Toro Generator (SN: 004000001 - 004999999) (1984) THROTTLE CONTROL & OIL FILL ASSEMBLY Parts Diagram

Generator

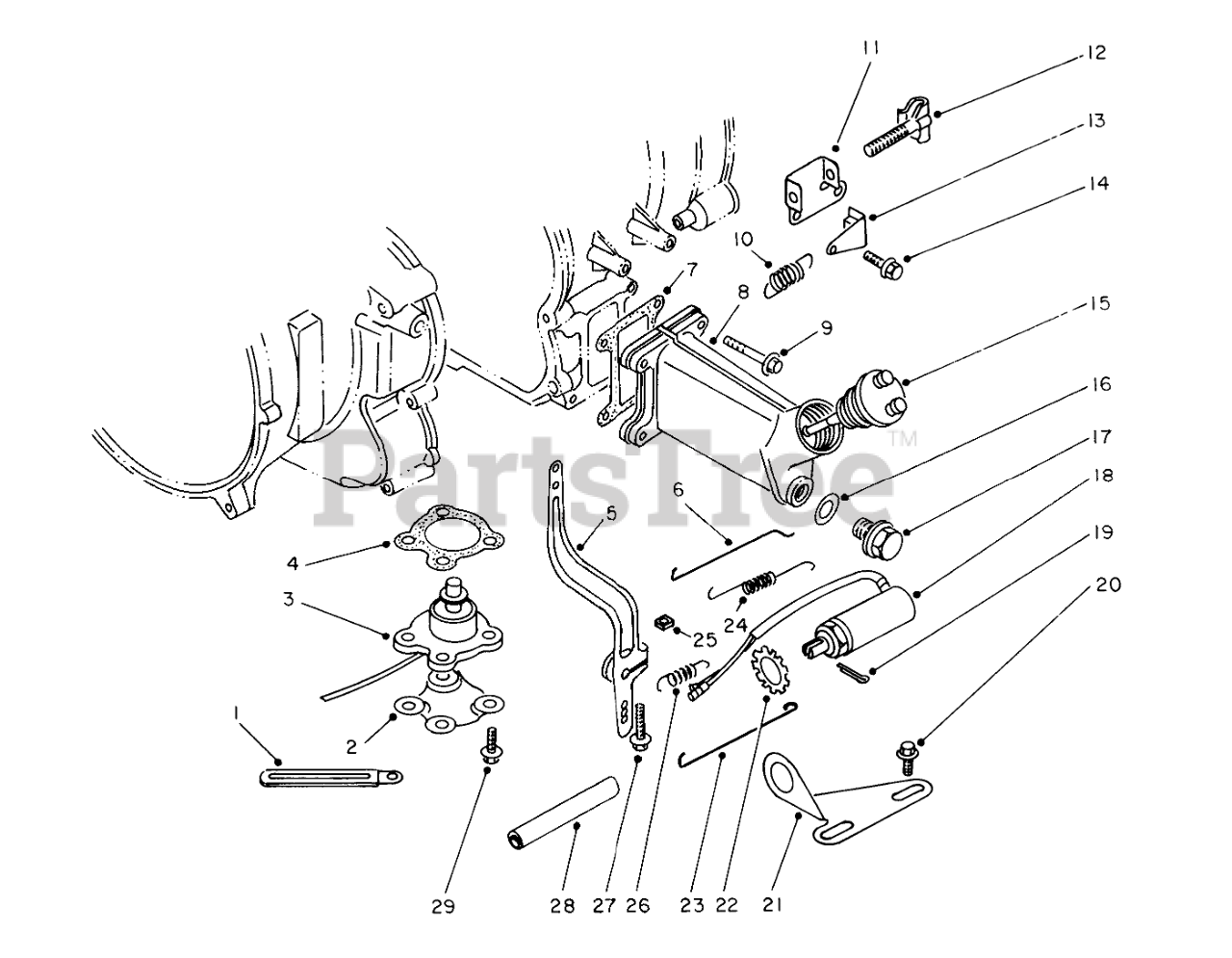

THROTTLE CONTROL & OIL FILL ASSEMBLY Parts Diagram

  • Title
1

Toro 50-1080

Clamp

$

$

Not available

2

Toro 50-3540

Plate

$

$

Not available

3

Toro 50-6160

Oil Level Sensor

$

$

Not available

4

Toro 50-3520

GASKET

$

$

Not available

5

Toro 50-6340

Lever-Throttle Control

$

$

Not available

6

$

$

Not available

7

Toro 50-6220

Gasket

$

$

Not available

8

Toro 50-6210

Case-Oil Filler

$

$

Not available

9

$

$

Not available

10

Toro 50-6330

Spring

$

$

Not available

11

Toro 50-6310

Bracket

$

$

Not available

12

Toro 50-6300

Bolt-Hook

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Toro 50-6240

Oil Gauge

$

$

Not available

16

Toro 50-0800

GASKET

$

$

Not available

17

$

$

Not available

18

Toro 50-6420

Solenoid

$

$

Not available

19

$

$

Not available

20

$

$

Not available

21

Toro 50-6460

Bracket

$

$

Not available

22

Toro 50-6450

Lockwasher

$

$

Not available

23

$

$

Not available

24

Toro 50-6380

Spring

$

$

Not available

25

$

$

Not available

26

Toro 50-1130

SPRING

$

$

Not available

27

$

$

Not available

28

$

$

Not available

29

$

$

Not available

Toro 50-6480

Gasket Set (Optional)

Note: Not illustrated

$

$

Not available
