62040 (T 4000 D) - Toro Generator (SN: 004000001 - 004999999) (1984) CONTROL PANEL ASSEMBLY Parts Diagram

Generator

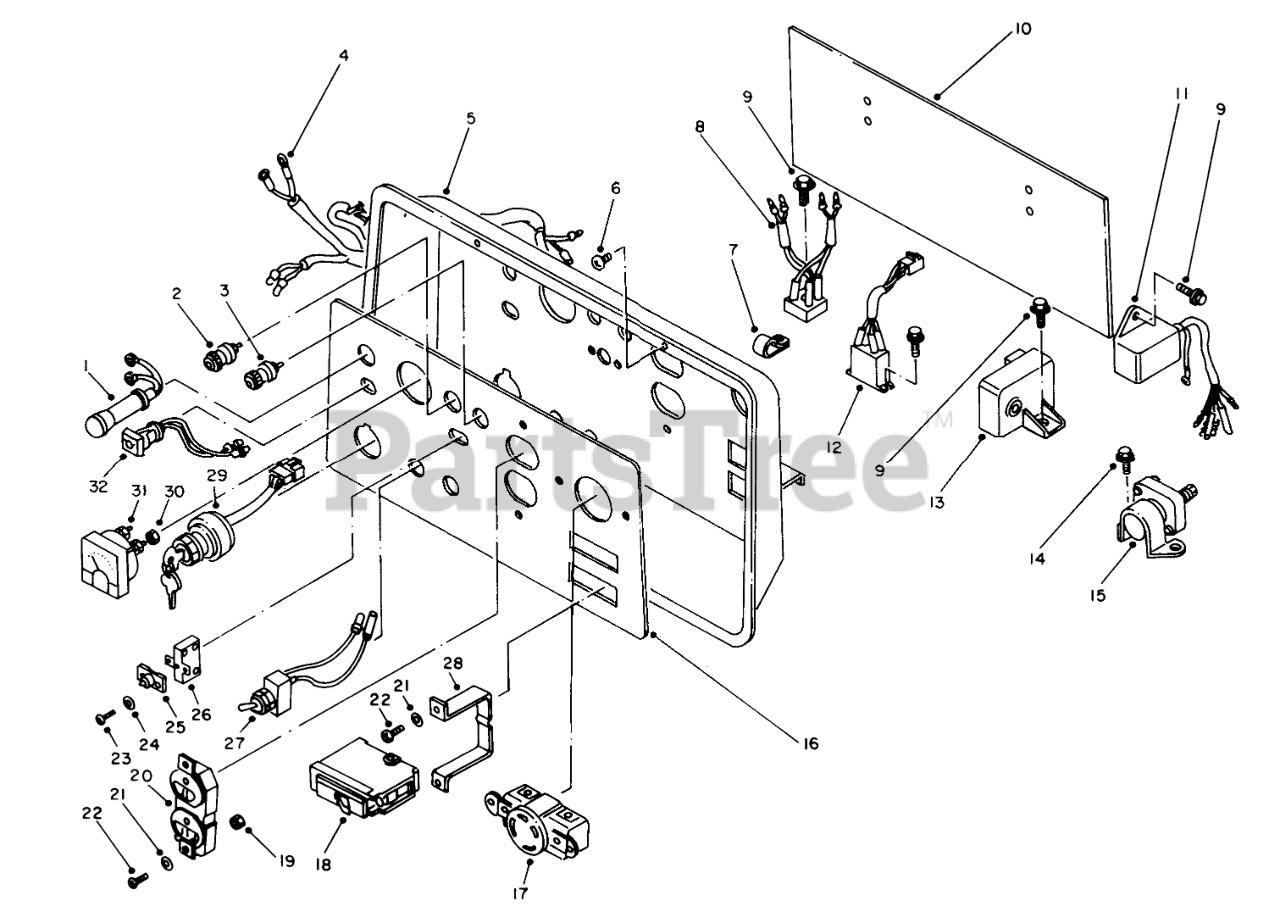

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 50-8660

Holder Assembly Lamp

$

$

Not available

2

Toro 50-4520

TERMINAL (-)

$

$

Not available

3

Toro 50-4510

Terminal
(Superseded to 55-0550)

$

$

Not available

4

Toro 50-8790

Wire Harness

$

$

Not available

5

Toro 50-8570

Panel-Control

$

$

Not available

6

Toro 50-8420

Screw

$

$

Not available

7

Toro 50-1040

Clamp

$

$

Not available

8

Toro 50-8890

RECTIFIER ASM

$

$

Not available

9

Toro 81-1300

BOLT

$9.99

$

Usually ships in 3-6 days

0

10

Toro 50-8610

Insulato Panel

$

$

Not available

11

Toro 50-8880

Unit-Fuel/Oil Interlock

$

$

Not available

12

Toro 50-8860

Relay

$

$

Not available

13

Toro 50-8850

Unit-Slow Down

$

$

Not available

14

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

15

Toro 50-8820

RELAY ASM

$

$

Not available

16

Toro 50-8590

Plate-Panel

$

$

Not available

17

Toro 50-8740

Receptacle

$

$

Currently unavailable

18

Toro 50-4360

CIRCUIT BREAKER

$

$

Not available

19

Toro 50-0500

Nut

$

$

Not available

20

Toro 50-8730

Receptacle

$

$

Currently unavailable

21

Toro 50-0600

Washer

$

$

Not available

22

Toro 50-0240

Screw

$

$

Not available

23

Toro 50-8710

Screw

$

$

Not available

24

Toro 50-6750

Washer

$

$

Not available

25

Toro 50-8720

Cap

$

$

Not available

26

Toro 50-8700

Protector-Circuit
(Superseded to 55-2690)

$

$

Not available

27

Toro 50-9540

Switch

$

$

Not available

28

Toro 50-8680

Holder-Breaker

$

$

Not available

29

Toro 50-8620

Switch-Engine
(Superseded to 55-2630)

$

$

Not available

30

Toro 50-0490

Nut

$

$

Not available

31

Toro 50-8830

Voltage Meter

$

$

Not available

32

Toro 50-3480

Lamp-Oil Level

$

$

Not available
