62032 (T 3000 D) - Toro Generator (SN: 008000001 - 008999999) (1988) RECOIL STARTER ASSEMBLY Parts Diagram

Generator

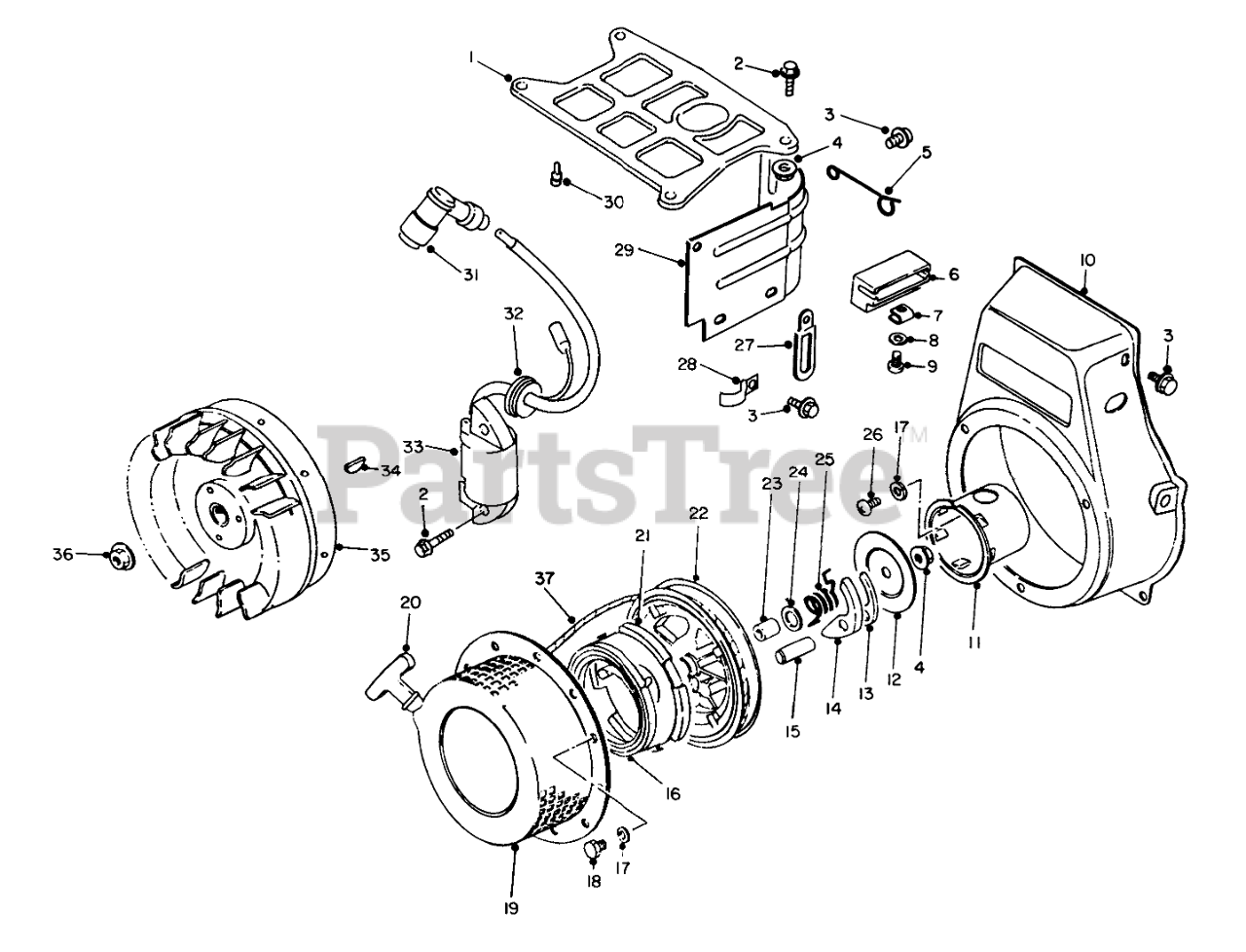

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro 50-5240

Cowling-Upper

$

$

Not available

2

Toro 81-0530

Bolt

$

$

Not available

3

Toro 50-0170

Bold

$

$

Not available

4

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

5

Toro 50-1030

CLAMP

$

$

Not available

6

Toro 55-0230

Holder-Lead Connector

$

$

Not available

7

Toro 55-0240

Nut

$

$

Not available

8

Toro 50-0600

Washer

$

$

Not available

9

Toro 81-1410

Bolt

$

$

Not available

10

Toro 50-5220

COVER

$

$

Not available

11

Toro 55-0200

Pulley-Starter

$

$

Not available

12

Toro 50-2920

Plate

$

$

Not available

13

Toro 50-2880

Ratchet

$

$

Not available

14

Toro 55-0170

Ratchet

$

$

Not available

15

Toro 55-0180

PIN

$

$

Not available

16

Toro 50-2900

SPRING

$77.99

$

Usually ships in 3-6 days

0

17

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

18

Toro 50-0650

BOLT

$

$

Not available

19

Toro 55-0160

Starter Assembly (Incl. Ref. #4, 12-18 & 20-25)

$

$

Not available

20

Toro 50-2990

Grip Assembly

$

$

Not available

21

Toro 55-0190

SPRING CASE

$

$

Not available

22

Toro 50-2860

Reel

$

$

Not available

23

Toro 50-2970

Cover
(Superseded to 98-9234)

$

$

Not available

24

Toro 50-2980

Plate-Slide
(Superseded to 98-9234)

$

$

Not available

25

Toro 50-2940

Spring
(Superseded to 98-9234)

$

$

Not available

26

Toro 50-0380

Screw

$

$

Not available

27

Toro 81-1480

CLAMP

$4.99

$

Usually ships in 3-6 days

0

28

Toro 50-1040

Clamp

$

$

Not available

29

Toro 50-5230

COWLING

$

$

Not available

30

Toro 50-4730

Cushion

$

$

Not available

31

Toro 50-3450

SPARK PLUG CAP

$

$

Not available

32

Toro 50-5310

Grommet

$

$

Not available

33

Toro 55-0660

STATOR

$

$

Not available

34

Toro 50-0640

KEY

$

$

Not available

35

Toro 50-5300

ROTOR ASM

$

$

Not available

36

Toro 50-0540

Nut

$

$

Not available

37

Toro 70-0600

Grip

$

$

Currently unavailable
