62032 (T 3000 D) - Toro Generator (SN: 005000001 - 005999999) (1985) FUEL TANK & FRAME ASSEMBLY Parts Diagram

Generator

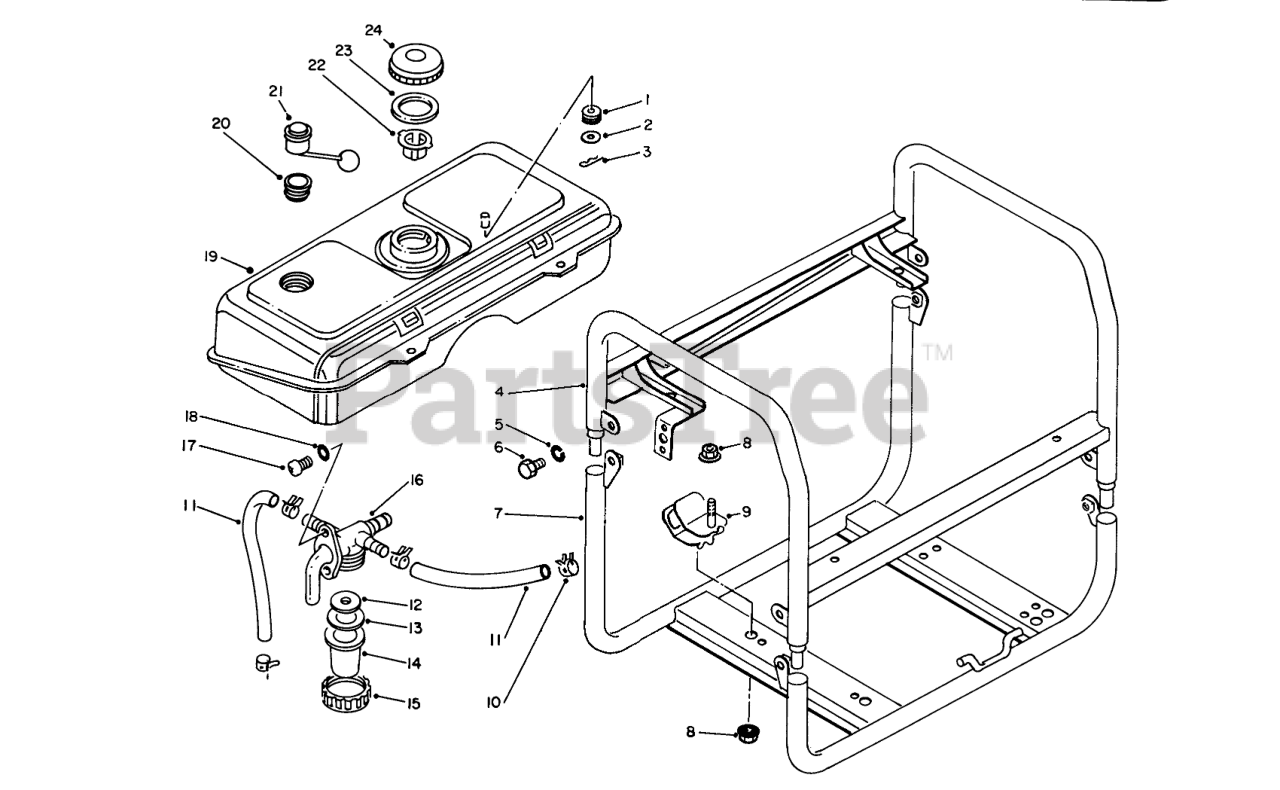

FUEL TANK & FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 50-0890

CUSHION

$

$

Not available

2

Toro 50-0760

WASHER

$

$

Not available

3

$

$

Not available

4

Toro 55-0670

Frame-Upper

$

$

Not available

5

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

6

$

$

Not available

7

Toro 55-0680

Frame-Lower

$

$

Not available

8

$

$

Not available

9

Toro 50-1590

Engine Mount
(Superseded to 55-2980)

$

$

Not available

10

$

$

Not available

11

$

$

Not available

12

Toro 50-3750

FILTER

$

$

Not available

13

Toro 50-3770

GASKET

$

$

Not available

14

$

$

Not available

15

$

$

Not available

16

Toro 50-3740

Cock Assembly-Fuel (Incl. Ref. #12-15)

$

$

Not available

17

Toro 50-0240

Screw

$

$

Not available

18

Toro 81-1420

Lockwasher

$

$

Not available

19

Toro 55-2970

Fuel Tank

$

$

Not available

20

Toro 50-3850

Gasket

$

$

Not available

21

Toro 50-5430

Gauge Assembly-Fuel (Incl. Ref. #20)

$

$

Not available

22

Toro 55-0260

FILTER

$

$

Not available

23

Toro 53-1420

GASKET

$

$

Not available

24

Toro 50-3700

Cap (Incl. Ref. #23)

$

$

Not available

Toro 50-1230

Tool

Note: Not illustrated

$

$

Not available
