62032 (T 3000 D) - Toro Generator (SN: 005000001 - 005999999) (1985) AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

Generator

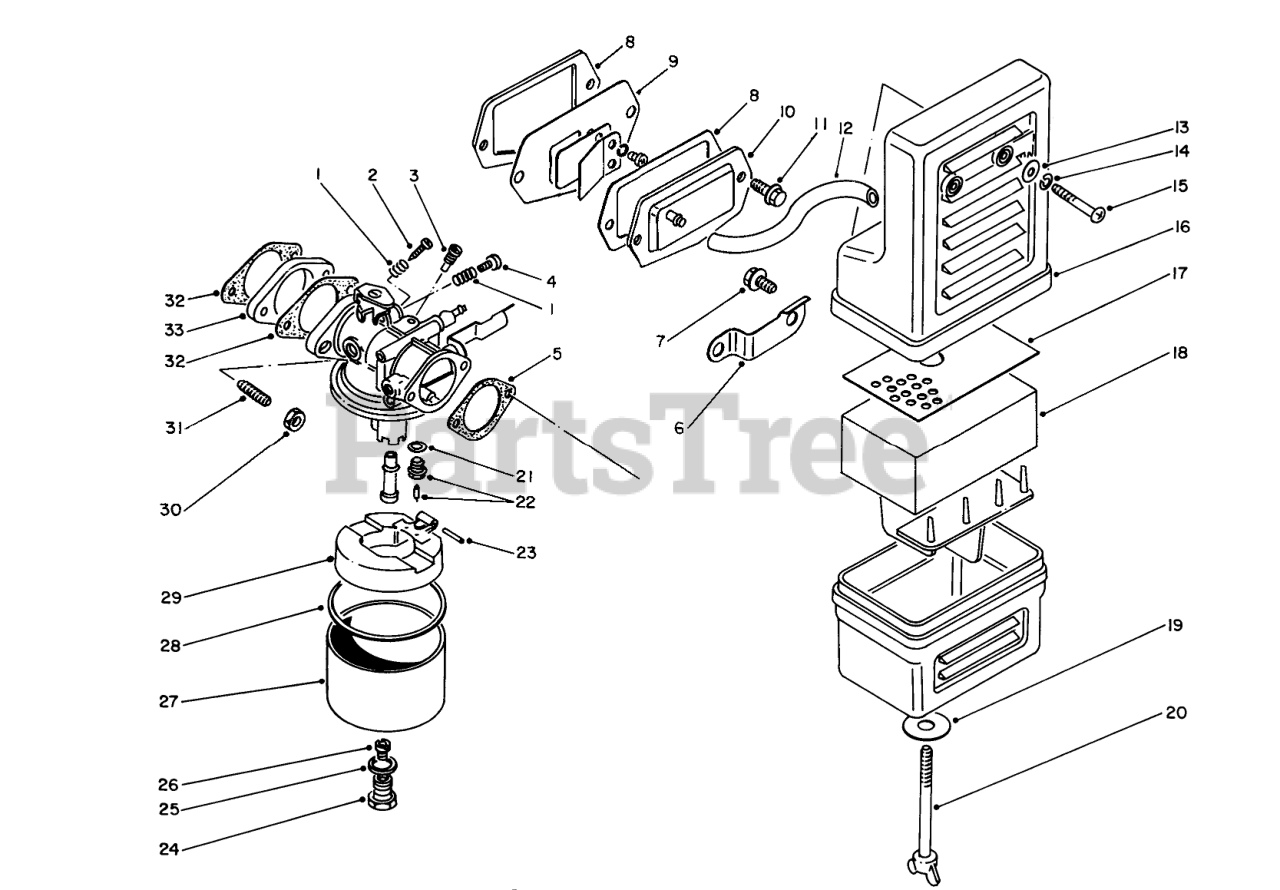

AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 50-2330

Spring
(Superseded to 81-2580)

$

$

Not available

2

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

3

Toro 50-4770

Jet
(Superseded to 81-2930)

$28.99

$

Usually ships in 3-6 days

0

4

Toro 50-2320

Screw

$

$

Not available

5

Toro 50-2530

AIR CLEANER GASKET

$

$

Not available

6

Toro 50-5160

Bracket

$

$

Not available

7

Toro 50-0170

Bold

$

$

Not available

8

Toro 50-4880

Gasket

$

$

Not available

9

Toro 50-4930

Reed Valve Assembly

$

$

Not available

10

Toro 50-4910

Cap

$

$

Not available

11

Toro 81-1300

BOLT

$9.99

$

Usually ships in 3-6 days

0

12

Toro 55-0110

PIPE

$

$

Not available

13

Toro 50-0610

WASHER

$

$

Not available

14

Toro 81-1380

Washer

$

$

Not available

15

Toro 50-0330

SCREW

$

$

Not available

16

Toro 50-2720

Cleaner Assembly-Air (Incl. Ref. #17-20)

$

$

Not available

17

Toro 50-2490

Holder

$

$

Not available

18

Toro 50-2470

FILTER

$

$

Not available

19

Toro 50-2570

WASHER

$

$

Not available

20

Toro 50-2550

Bolt-Wing

$

$

Not available

21

Toro 50-2400

GASKET

$

$

Not available

22

Toro 50-2390

NEEDLE VALVE

$

$

Not available

23

Toro 50-2310

PIN

$

$

Not available

24

Toro 50-2370

Bolt

$

$

Not available

25

Toro 50-2380

Gasket
(Superseded to 55-2860)

$

$

Not available

26

Toro 50-4760

MAIN JET

$27.99

$

Usually ships in 3-6 days

0

27

Toro 50-5140

Carburetor Assembly (Incl. Ref. #1-4, 21-26 & 28-29)
(Superseded to 55-2840)

$

$

Not available

28

Toro 50-2290

GASKET

$

$

Not available

29

Toro 55-0130

FLOAT

$

$

Not available

30

Toro 50-7180

NUT

$6.99

$

In Stock, Qty 5

0

31

Toro 50-0080

Bolt-Stud

$

$

Not available

32

Toro 50-2180

Gasket
(Superseded to 53-1240)

$

$

Not available

33

Toro 50-2200

INSULATOR

$

$

Not available
