620301x79D - Briggs & Stratton 20" Snow Thrower (2000) (Spirit) Chute Rod Assembly Parts Diagram

20" Snow Thrower

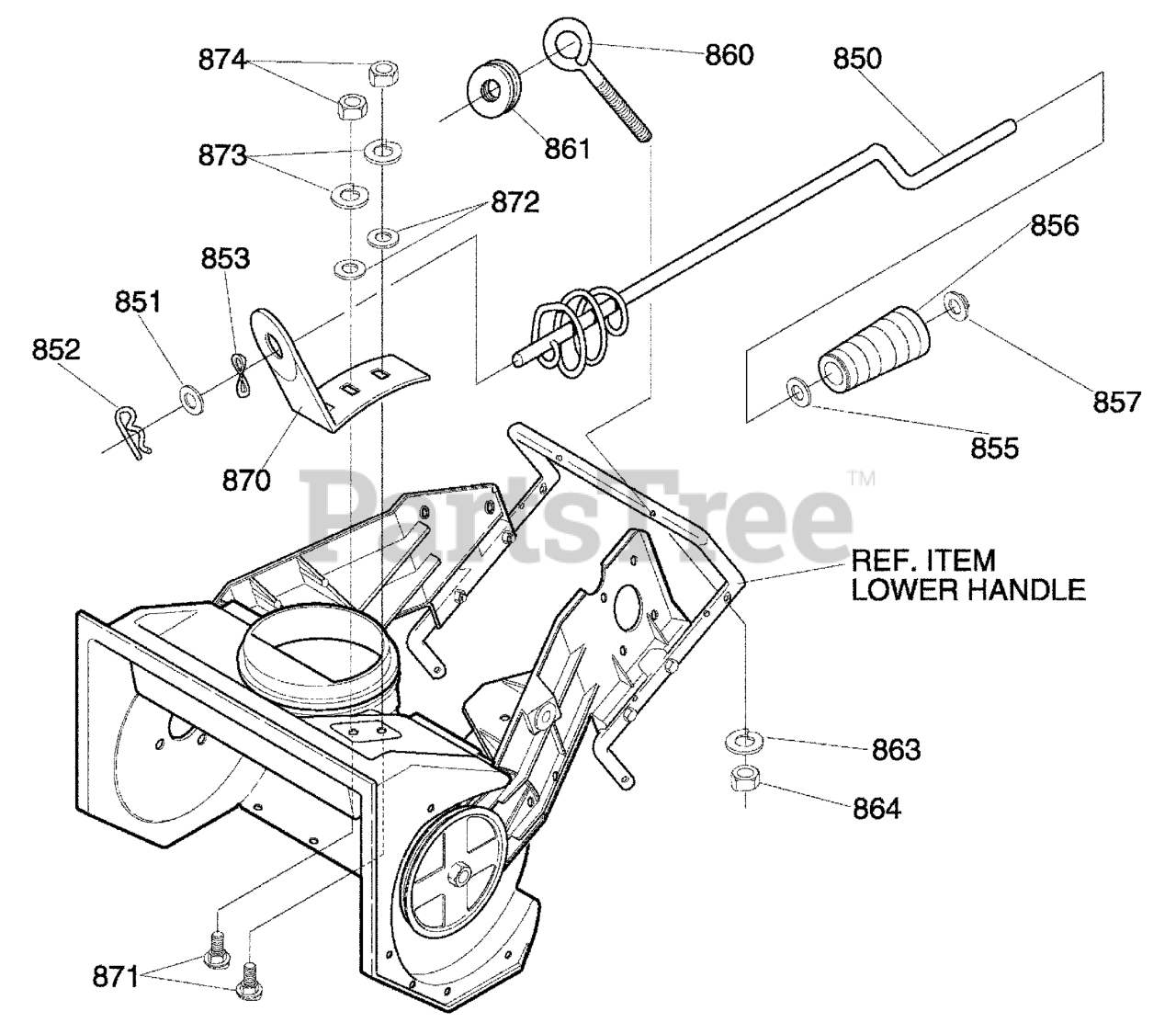

Chute Rod Assembly Parts Diagram

  • Title
850

Murray 314996

ROD, ASSY UPPER CHUTE CONTROL

$

$

Not available

851

Murray 71072

WASHER, FLAT .406X.81X.066

$

$

Not available

852

Murray 71082

PIN, COTTER .094 DIAX1.00LG

$

$

Not available

853

Murray 313431MA

WASHER, CURVED SPRING

$4.99

$

In Stock, only 1 left!

0

855

Murray 71072

WASHER, FLAT .406X.81X.066

$

$

Not available

856

Murray 57082MA

KNOB, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

857

Murray 331532MA

NUT, PUSH

$4.99

$

Usually ships in 2-12 days

0

860

Murray 313712

BOLT, EYE 3/8-16X2.00

$

$

Not available

861

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

863

Murray 018X31MA

WASHER, MDSPTLK

$4.49

$

Usually ships in 2-12 days

0

864

Murray 124829

NUT, 3/8-16 HEXJAM

$

$

Not available

870

Murray 333946-853

BRACKET, CHUTE ROTATE

$

$

Not available

871

Murray 340720MA

BOLT, 5/16-18X.75 CARR.
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

872

Murray 120393

WASHER, FLAT .349X.69X.066

$

$

Not available

873

Murray 71060120638

WASHER, HVSPTLK .328 x .60 x .09

$

$

Currently unavailable

874

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
