620301x54NB - Murray 20" Snow Thrower (2003) Discharge Chute Parts Diagram

20" Snow Thrower

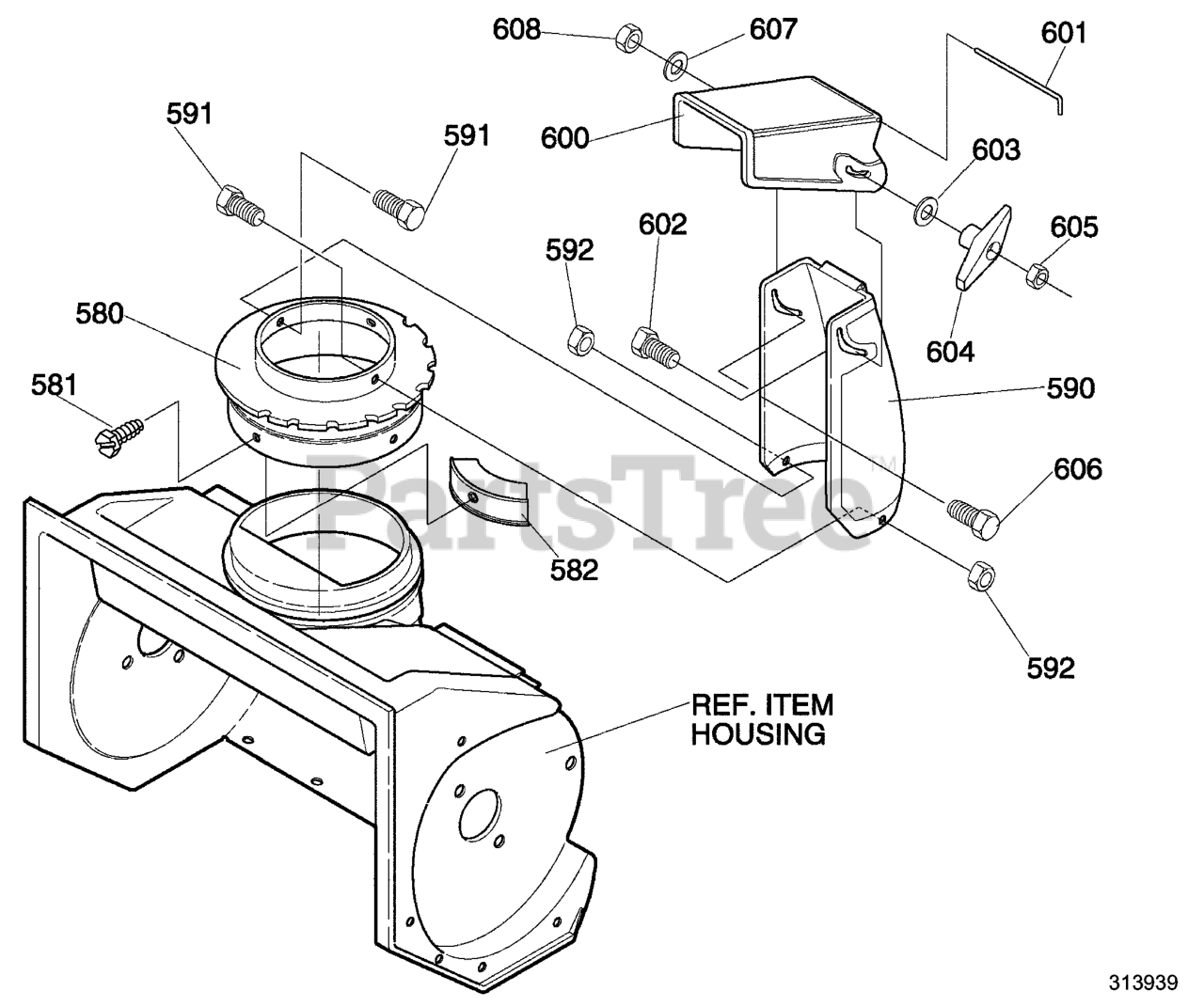

Discharge Chute Parts Diagram

  • Title
580

Murray 314239MA

RING, CHUTE

$

$

Not available

581

Murray 711752MA

SCREW, #10X.50

$4.49

$

Usually ships in 2-12 days

0

582

Murray 577021MA

GUIDE, CHUTE

$5.49

$

In Stock, Qty 8

0

590

Murray 337237

CHUTE, LOWER

$

$

Currently unavailable

591

Murray 313686MA

SCREW 1/4-20X.50

$3.99

$

In Stock, only 2 left!

0

592

Murray 15X143MA

NUT, CNTRLK 1/4-2 YZ

$4.99

$

In Stock, Qty 13

0

600

Murray 325847

CHUTE, UPPER
(Superseded to 325847MA)

$51.99

$

In Stock, Qty 17

0

601

Murray 308931MA

WIRE, HINGE

$12.99

$

Usually ships in 2-12 days

0

602

Murray 302843MA

BOLT, CARRIAGE 5/16-18X1.25

$

$

Not available

603

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

604

Murray 57171

KNOB, T
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

605

Murray 71037

NUT, HEX 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

606

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

607

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

608

Murray 71391

NUT, HEX 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0
