620301x54NA - Murray 20" Snow Thrower (2002) Chute Rod Assembly Parts Diagram

20" Snow Thrower

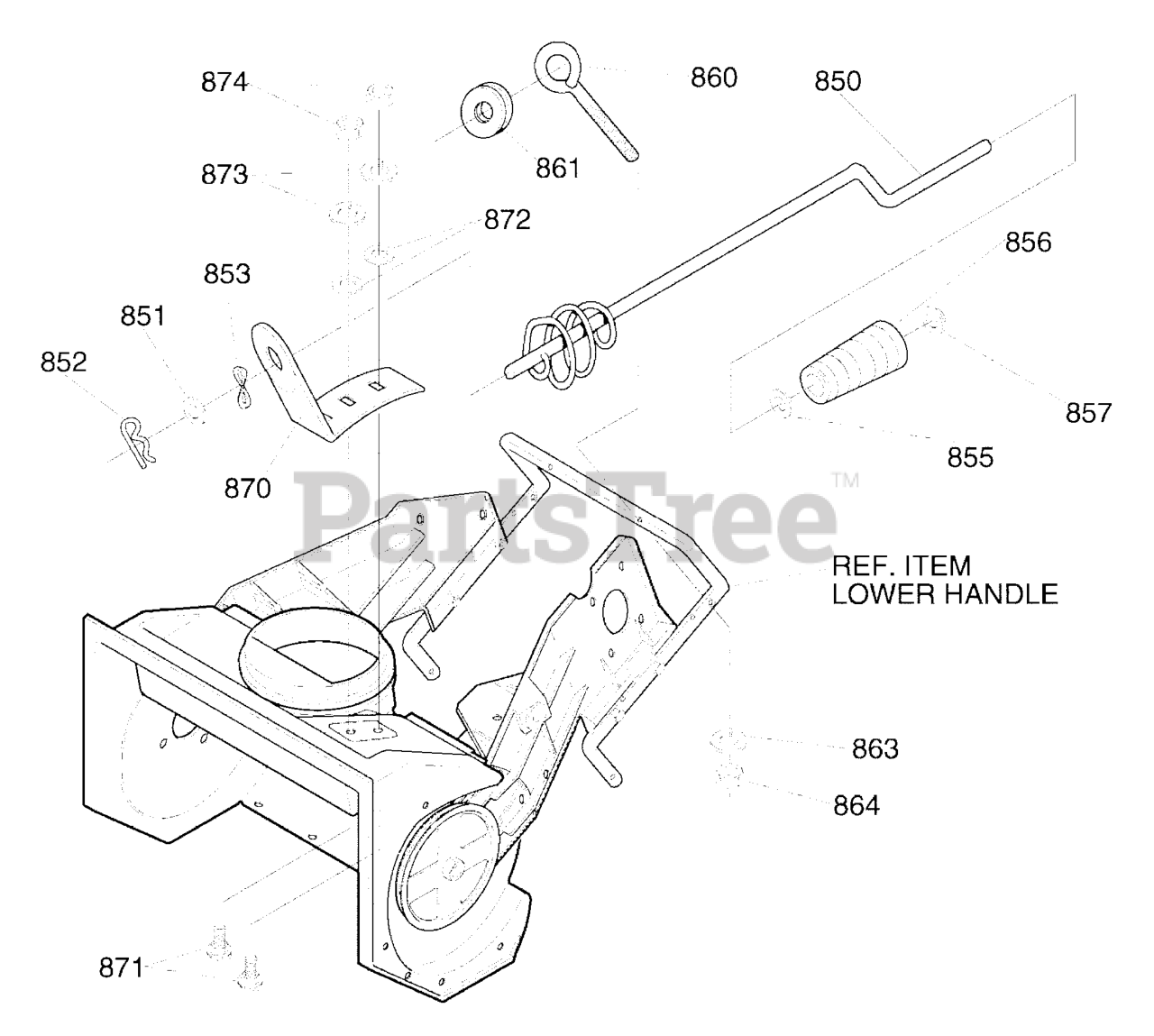

Chute Rod Assembly Parts Diagram

  • Title
850

Murray 314996

ROD, ASSY UPPER CHUTE CONTROL

$

$

Not available

851

Murray 71072

WASHER, FLAT .406X.81X.066

$

$

Not available

852

Murray 71082

PIN, COTTER

$

$

Not available

853

Murray 313431MA

WASHER, CURVED SPRING

$4.99

$

In Stock, only 1 left!

0

855

Murray 71072

WASHER, FLAT .406X.81X.066

$

$

Not available

856

Murray 57082MA

KNOB, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

857

Murray 331532MA

NUT, PUSH

$4.99

$

Usually ships in 2-12 days

0

860

Murray 313712

BOLT, EYE 3/8-16X2.00

$

$

Not available

861

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

863

Murray 71062

WASHER

$

$

Not available

864

Murray 71045

NUT, HEX JAM 3/8-16

$

$

Not available

870

Murray 333946E701MA

BRACKET, CHUTE ROTATE

$33.99

$

Usually ships in 2-12 days

0

871

Murray 340720MA

BOLT, CARRIAGE 5/16-18X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

872

Murray 71071

WASHER, FLAT .349X.69X.066
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

873

Murray 071060

WASHER .328X.60X.09

$3.49

$

In Stock, Qty 20+

0

874

Murray 71037

NUT, HEX 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
