620301x4NB - Murray 20" Snow Thrower (2003) Frame Components Assembly Parts Diagram

20" Snow Thrower

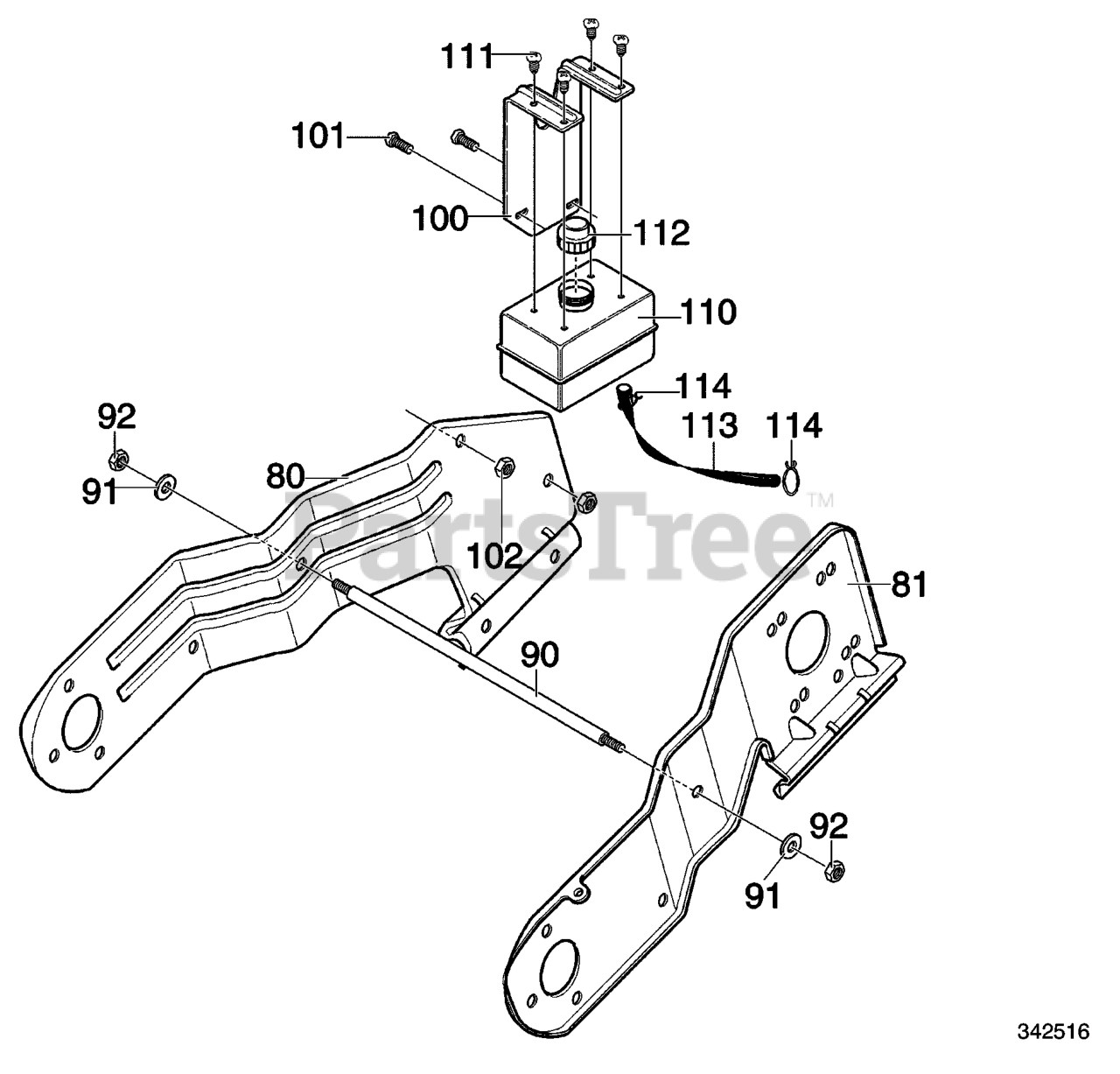

Frame Components Assembly Parts Diagram

  • Title
80

Murray 760272E701

FRAME SIDE SUPPORT RH

$

$

Not available

81

Murray 760271E701MA

FRAME SIDE SUPPORT LH

$60.99

$

In Stock, only 1 left!

0

90

Murray 760169

ROD, SUPPORT

$90.99

$

Usually ships in 2-12 days

0

91

Murray 71063

WASHER, HVSPTLK

$3.99

$

Usually ships in 2-12 days

0

92

Murray 71044

NUT, 3/8-16 REGHEX

$3.49

$

Usually ships in 2-12 days

0

100

Murray 578093E701

BRACKET, GAS TANK

$

$

Not available

101

Murray 302628MA

SCREW, 1/4-20X.75

$4.49

$

In Stock, Qty 7

0

102

Murray 15X143MA

NUT, 1/4-20 YZ

$4.99

$

In Stock, Qty 13

0

110

Murray 55381

TANK, FUEL

$

$

Not available

111

Murray 313681

SCREW, 1/4-14X.88 WAHHTAP

$3.49

$

Usually ships in 2-12 days

0

112

Murray 1257

CAP, GAS-RED

$

$

Not available

113

Murray 327290

TUBING 11.50 IN.

$

$

Not available

114

Murray 323387MA

CLAMP, FUEL LINE

$4.49

$

Usually ships in 2-12 days

0
