620301x4NA - Murray 20" Snow Thrower (2002) Handle Assembly Parts Diagram

20" Snow Thrower

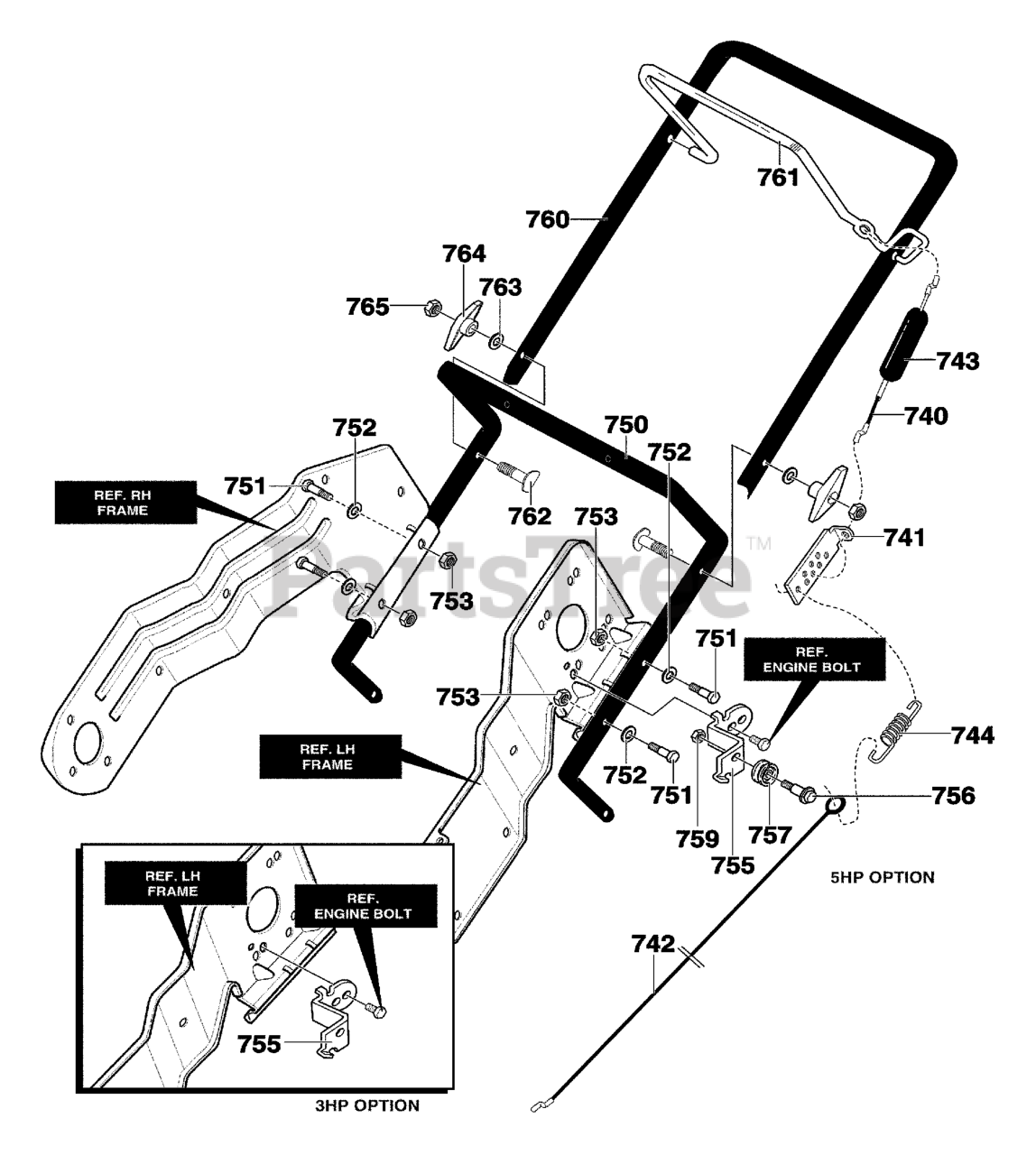

Handle Assembly Parts Diagram

  • Title

740

Murray 760774MA

CABLE, UPPER

$10.99

$

Usually ships in 2-12 days

0

741

Murray 313441MA

BRACKET, CABLE ADJ

$

$

Not available

742

Murray 760773MA

CABLE, LOWER CONTROL

$14.99

$

Usually ships in 2-12 days

0

743

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

Usually ships in 2-12 days

0

744

Murray 313471MA

SPRING, EXTENSION

$4.99

$

In Stock, only 1 left!

0

750

Murray 313487E701

HANDLE, LOWER

$63.99

$

Usually ships in 2-12 days

0

751

Murray 313674MA

SCREW, 1/4-20X1.25

$3.99

$

Usually ships in 2-12 days

0

752

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

753

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

755

Murray 761486E701

BRACKET, CABLE

$67.99

$

Usually ships in 2-12 days

0

756

Murray 712234MA

BOLT

$3.49

$

Usually ships in 2-12 days

0

757

Murray 39298

PULLEY

$24.99

$

Usually ships in 2-12 days

0

759

Murray 15X143MA

NUT, 1/4-20 YZ

$4.99

$

In Stock, Qty 13

0

760

Murray 313489E701MA

UPPER HANDLE

$

$

Not available

761

Murray 313308E701MA

BAIL, CONTROL
(Superseded to 1742110HYP)

$22.99

$

Usually ships in 2-12 days

0

762

Murray 337584MA

BOLT

$4.99

$

Usually ships in 2-12 days

0

763

Murray 311936MA

WASHER, FORM

$7.49

$

In Stock, only 2 left!

0

764

Murray 57171

KNOB, T 3.00 WD
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 5

0

765

Murray 71037

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
