620301x4D - Murray 20" Snow Thrower (2001) Auger Housing Parts Diagram

20" Snow Thrower

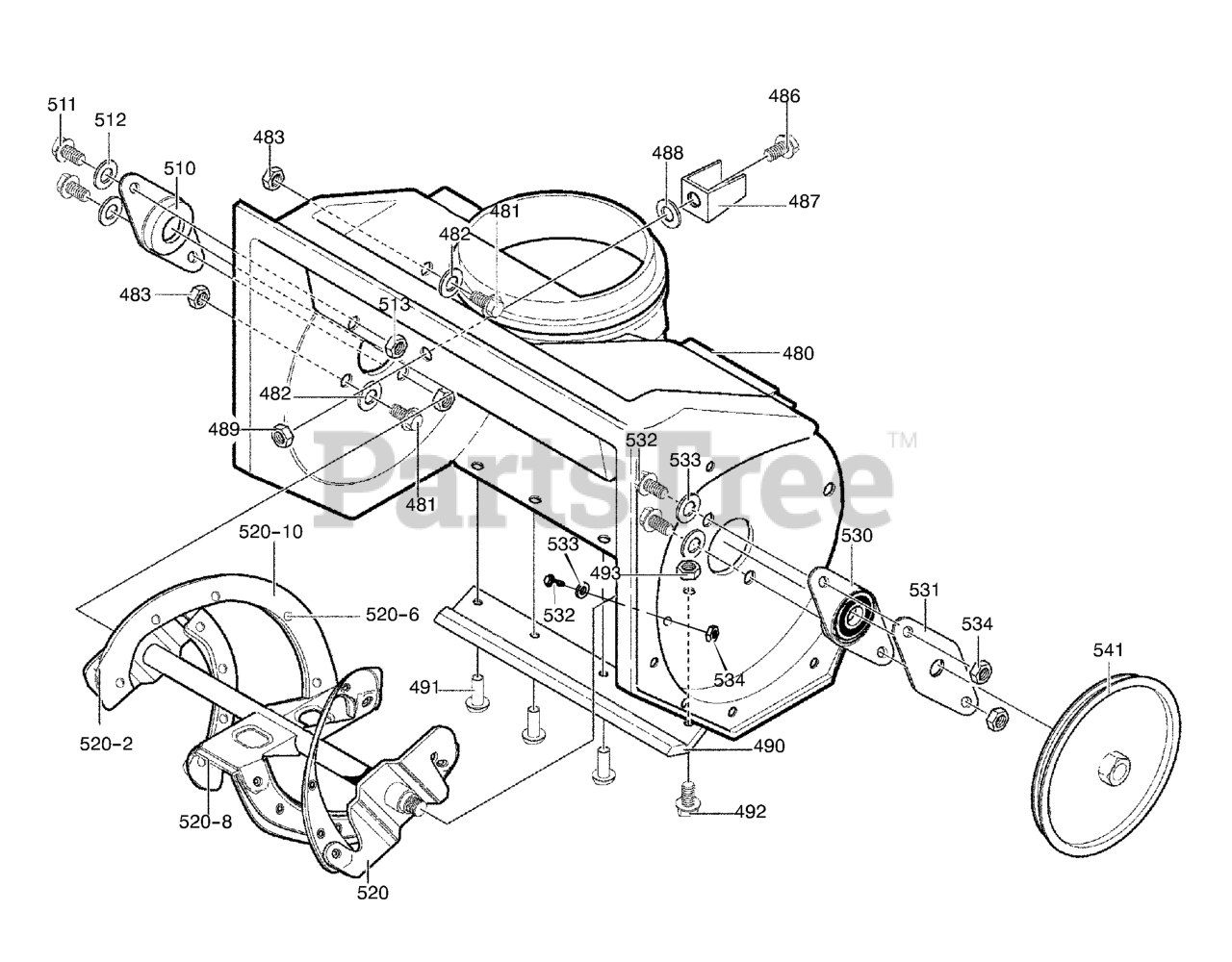

Auger Housing Parts Diagram

  • Title
480

Murray 330312MA

HOUSING, ASSY

$

$

Not available

481

Murray 302628MA

SCREW, 1/4-20X.75

$4.49

$

In Stock, Qty 7

0

482

Murray 071067MA

WASHER, FLAT .281X.63X.065

$82.99

$

In Stock, only 1 left!

0

483

Murray 782585

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

486

Murray 11871MA

SCREW, 1/4-20X.63

$3.99

$

Usually ships in 2-12 days

0

487

Murray 331126MA

BRACKET, STOP

$6.99

$

Usually ships in 2-12 days

0

488

Murray 331211MA

WASHER, FLAT .333X.87X.119

$3.99

$

Usually ships in 2-12 days

0

489

Murray 782585

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

490

Murray 334031MA

BLADE, SCRAPER

$46.99

$

Usually ships in 2-12 days

0

491

Murray 577707

RIVET, OVSET .250DIAX.61LG
(Superseded to 577707MA)

$3.99

$

Usually ships in 2-12 days

0

492

Murray 302628MA

SCREW, 1/4-20X.75

$4.49

$

In Stock, Qty 7

0

493

Murray 46931MA

NUT, CNTRLK 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

510

Murray 577023MA

BEARING, FLANGE

$5.99

$

In Stock, only 3 left!

0

511

Murray 710263

SCREW, 1/4-20X1.00
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

512

Murray 071067MA

WASHER, FLAT .281X.63X.065

$82.99

$

In Stock, only 1 left!

0

513

Murray 46931MA

NUT, CNTRLK 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

520

Murray 302783MA

AUGER, ASSY

$204.99

$

Usually ships in 2-12 days

0

520-2

Murray 302565MA

BLADE, AUGER

$28.99

$

In Stock, only 2 left!

0

520-6

Murray 49838

RIVET
(Superseded to 49838MA)

$4.49

$

In Stock, Qty 20+

0

520-8

Murray 335992MA

BLADE, CENTER

$8.99

$

In Stock, Qty 8

0

520-10

Murray 302552

AUGER & BLADE SUPPORT

$

$

Currently unavailable

530

Murray 583459MA

BEARING & PLATE ASSY

$27.99

$

Usually ships in 2-12 days

0

531

Murray 334287MA

PLATE, RETAINER

$7.49

$

In Stock, only 1 left!

0

532

Murray 180018

SCREW, 1/4-20X.63

$

$

Not available

533

Murray 071067MA

WASHER, FLAT .281X.63X.065

$82.99

$

In Stock, only 1 left!

0

534

Murray 782585

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

541

Murray 338965MA

PULLEY V3L 6.00 O.D.

$36.99

$

In Stock, only 1 left!

0
