62030 (T 3000) - Toro Generator (SN: 003000001 - 003999999) (1983) RECOIL STARTER ASSEMBLY Parts Diagram

Generator

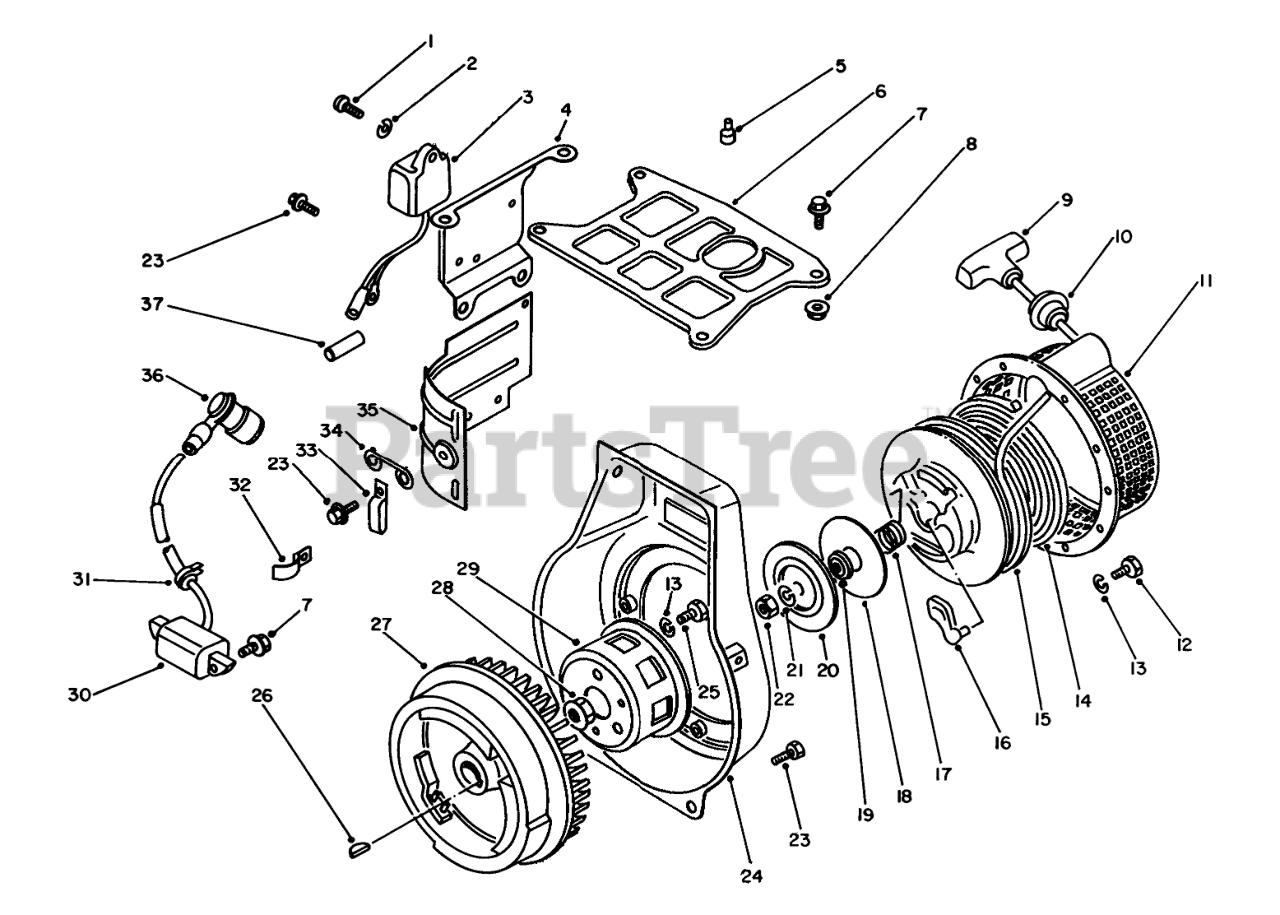

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro 50-0270

Screw

$

$

Not available

2

Toro 81-1380

Washer

$

$

Not available

3

Toro 50-5320

Transistor Magnet
(Superseded to 55-0740)

$

$

Not available

4

Toro 50-5330

Bracket

$

$

Not available

5

Toro 50-4730

Cushion

$

$

Not available

6

Toro 50-5240

Cowling-Upper

$

$

Not available

7

Toro 81-0530

Bolt

$

$

Not available

8

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

9

Grip

$

$

Not available

10

Toro 50-2990

Grip Assembly (Incl. Ref. #9)

$

$

Not available

11

Toro 50-2840

Starter Assembly (Incl. Ref. #14-22)

$

$

Not available

12

Toro 50-0650

BOLT

$

$

Not available

13

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

14

Toro 50-2900

SPRING

$87.99

$

Usually ships in 3-6 days

0

15

Toro 50-2860

Reel

$

$

Not available

16

Toro 50-2880

Ratchet

$

$

Not available

17

Toro 50-2940

Spring
(Superseded to 98-9234)

$

$

Not available

18

Toro 50-2980

Plate-Slide
(Superseded to 98-9234)

$

$

Not available

19

Toro 50-2970

Cover
(Superseded to 98-9234)

$

$

Not available

20

Toro 50-2920

Plate

$

$

Not available

21

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

22

Toro 50-0750

NUT

$

$

Not available

23

Toro 50-0170

Bold

$

$

Not available

24

Toro 50-5220

COVER

$

$

Not available

25

Toro 50-0020

Bolt

$

$

Not available

26

Toro 50-0640

KEY

$

$

Not available

27

Toro 50-5300

ROTOR ASM

$

$

Not available

28

Toro 50-0540

Nut

$

$

Not available

29

Toro 50-3030

STARTER PULLEY

$

$

Not available

30

Toro 50-5290

STARTER ASM

$

$

Not available

31

Toro 50-5310

Grommet

$

$

Not available

32

Toro 50-5710

Clamp

$

$

Not available

33

Toro 50-1040

Clamp

$

$

Not available

34

Toro 50-1030

CLAMP

$

$

Not available

35

Toro 50-5230

COWLING

$

$

Not available

36

Toro 50-5350

Cap-Spark Plug

$

$

Currently unavailable

37

Toro 50-5340

Tube

$

$

Not available
