62030 (T 3000) - Toro Generator (SN: 003000001 - 003999999) (1983) CRANKSHAFT & CAMSHAFT ASSEMBLY Parts Diagram

Generator

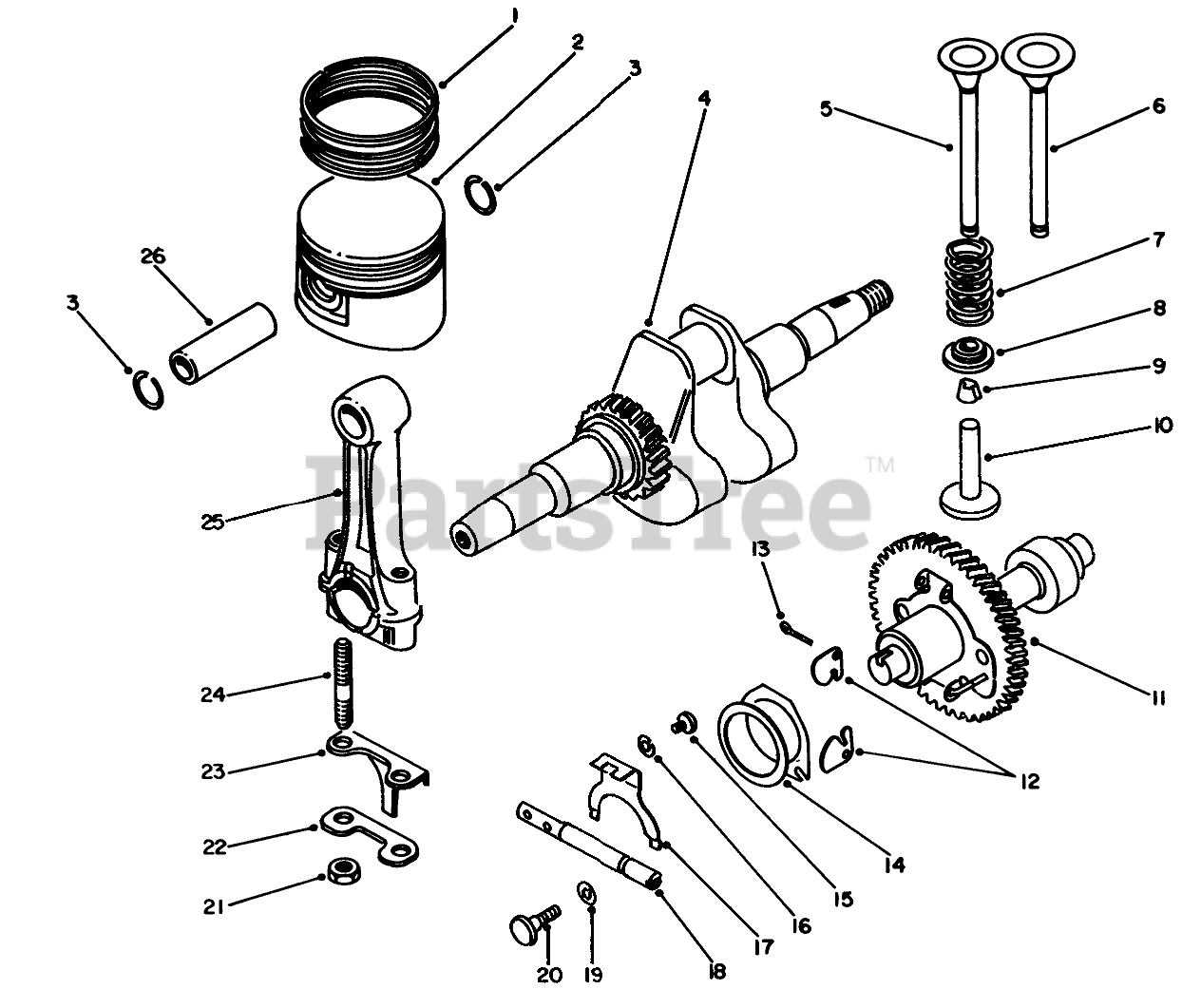

CRANKSHAFT & CAMSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 50-4980

RING SET

$

$

Not available

Toro 50-5000

Ring Set (Optional)

Note: Not illustrated

$

$

Not available

Toro 50-5010

Ring Set (Optional)

Note: Not illustrated

$

$

Not available

2

Toro 50-4940

Piston

$

$

Not available

Toro 50-4960

PISTON (OPTIONAL)

Note: Not illustrated

$

$

Not available

Toro 50-4970

Piston (Optional)

Note: Not illustrated

$

$

Not available

3

Toro 50-4740

Circlip

$

$

Not available

4

Toro 50-5060

Crankshaft

$

$

Not available

5

Toro 50-5120

EXHAUST VALVE

$

$

Not available

6

Toro 60-5110

PIPE

$

$

Currently unavailable

7

Toro 50-5130

Spring

$

$

Not available

8

Toro 50-2140

Retainer

$

$

Not available

9

Toro 50-2160

Cotter

$

$

Not available

10

Toro 50-5080

Tappet

$

$

Not available

Toro 50-5090

TAPPET

Note: Not illustrated

$

$

Not available

Toro 50-5100

Tappet

Note: Not illustrated

$

$

Not available

11

Toro 50-5070

Camshaft

$

$

Not available

12

Toro 50-3070

ARM

$

$

Not available

13

Toro 50-0430

Cotter Pin

$

$

Not available

14

Toro 50-3110

Spacer

$

$

Not available

15

Toro 50-0210

Screw

$

$

Not available

16

Toro 50-0560

Lockwasher

$

$

Not available

17

Toro 50-5260

PLATE

$

$

Not available

18

Toro 50-5250

Shaft

$

$

Not available

19

Toro 50-0770

Gasket

$

$

Not available

20

Toro 50-0740

Screw

$

$

Not available

21

Toro 50-0520

Nut
(Superseded to 81-1110)

$

$

Not available

22

Toro 50-5040

LOCK PLATE

$

$

Not available

23

Toro 50-5050

Plate-Splash

$

$

Not available

24

Toro 50-4710

BOLT

$

$

Not available

25

Toro 50-5030

Connecting Rod (Incl. Ref. #21-24)

$

$

Not available

26

Toro 50-5020

PISTON PIN

$

$

Not available
