62025 (T 2500) - Toro Generator (SN: 008000001 - 008999999) (1988) REWIND STARTER & MAGNETO ASSEMBLY Parts Diagram

Generator

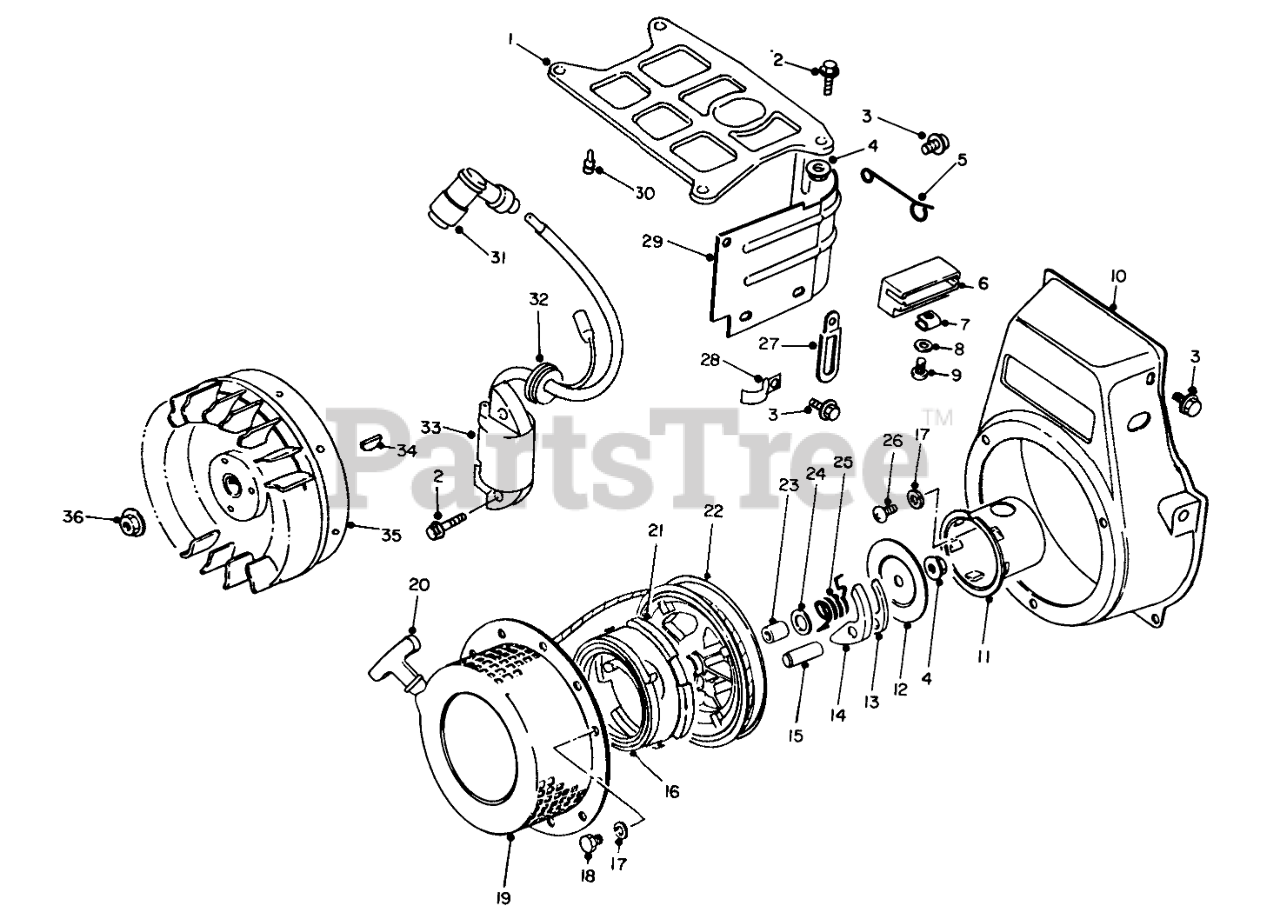

REWIND STARTER & MAGNETO ASSEMBLY Parts Diagram

  • Title

1

Toro 50-0540

Nut

$

$

Not available

2

Toro 50-0640

KEY

$

$

Not available

3

Toro 50-3360

Rotor

$

$

Not available

4

Toro 81-0530

Bolt

$

$

Not available

5

Toro 55-0660

STATOR

$

$

Not available

6

Toro 50-5310

Grommet

$

$

Not available

7

Toro 50-3450

SPARK PLUG CAP

$

$

Not available

8

Toro 50-5230

COWLING

$

$

Not available

9

Toro 50-4730

Cushion

$

$

Not available

10

Toro 50-5240

Cowling-Upper

$

$

Not available

11

Toro 50-0170

Bold

$

$

Not available

12

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

13

Toro 50-1030

CLAMP

$

$

Not available

14

Toro 81-1480

CLAMP

$4.99

$

Usually ships in 3-6 days

0

15

Toro 50-5710

Clamp

$

$

Not available

16

Toro 81-1410

Bolt

$

$

Not available

17

Toro 50-0600

Washer

$

$

Not available

18

Toro 55-0240

Nut

$

$

Not available

19

Toro 55-0230

Holder-Lead Connector

$

$

Not available

20

Toro 50-5220

COVER

$

$

Not available

21

Toro 55-0200

Pulley-Starter

$

$

Not available

22

Toro 50-7470

NUT

$

$

Not available

23

Toro 55-2950

Plate-Friction
(Superseded to 81-4090)

$

$

Not available

24

Toro 55-2930

Ratchet

$

$

Not available

25

Toro 55-0170

Ratchet

$

$

Not available

26

Toro 55-0180

PIN

$

$

Not available

27

Toro 55-2890

Spring-Spiral
(Superseded to 81-4010)

$57.99

$

Usually ships in 3-6 days

0

28

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

29

Toro 50-0650

BOLT

$

$

Not available

30

Toro 55-0160

Starter Assembly Recoil (Incl. Ref. #22-29 & 31-37)

$

$

Not available

31

Toro 55-2880

Grip Assembly (Incl. Ref. #32)

$

$

Not available

32

Grip

$

$

Not available

33

Toro 55-0190

SPRING CASE

$

$

Not available

34

Toro 55-2900

Reel

$

$

Not available

35

Toro 55-2920

Spacer

$

$

Not available

36

Toro 55-2940

Washer
(Superseded to 81-4060)

$4.49

$

Usually ships in 3-6 days

0

37

Toro 55-2910

Spring-Friction

$

$

Not available

38

Toro 50-0380

Screw

$

$

Not available
