62025 (T 2500) - Toro Generator (SN: 008000001 - 008999999) (1988) FUEL TANK & FRAME ASSEMBLY Parts Diagram

Generator

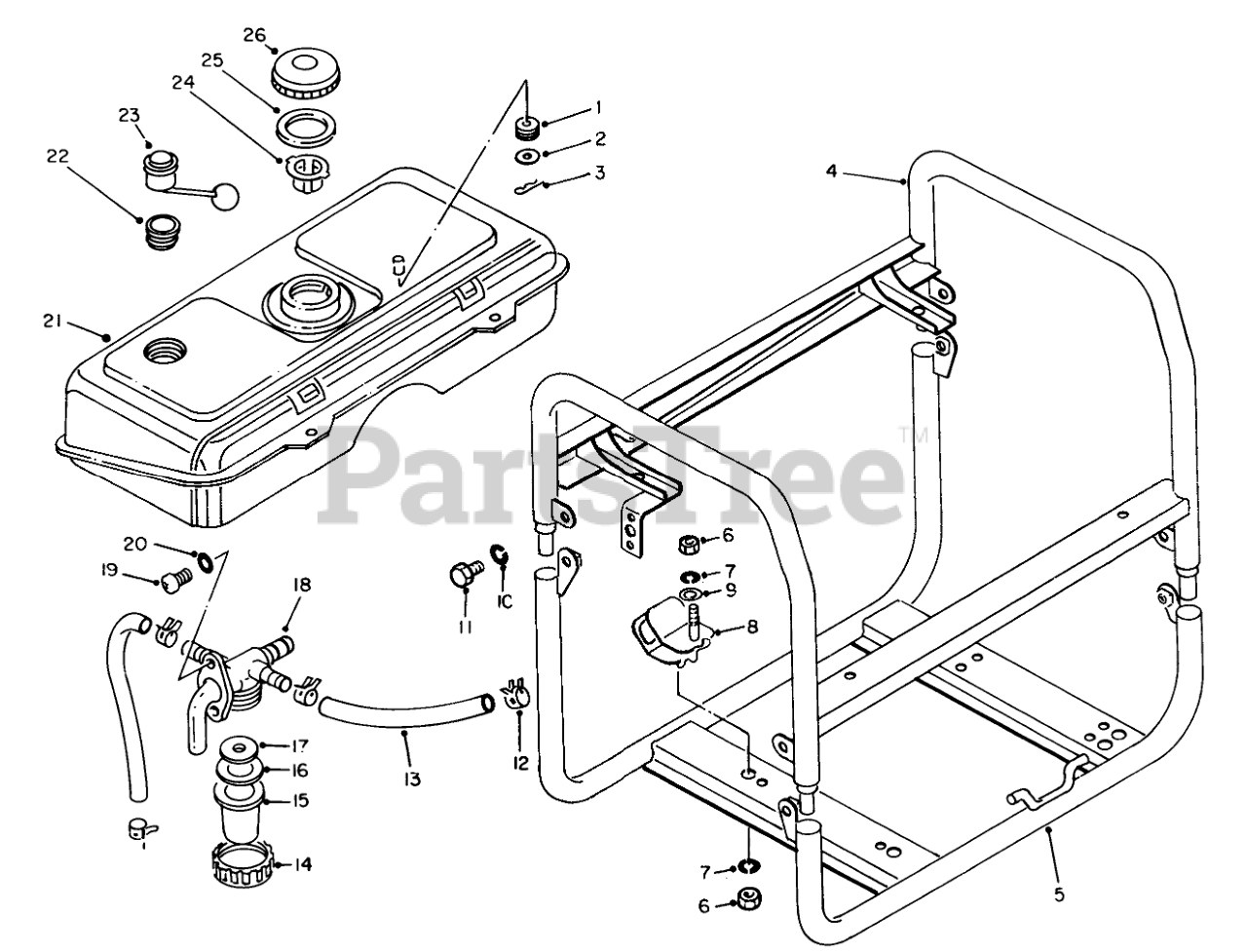

FUEL TANK & FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 50-0890

CUSHION

$

$

Not available

2

Toro 50-0760

WASHER

$

$

Not available

3

Toro 50-0970

CLIP

$

$

Not available

4

Toro 55-0670

Frame-Upper

$

$

Not available

5

Toro 55-4680

E-Ring
(Superseded to 54-8780)

$

$

Not available

6

Toro 81-0900

NUT

$3.49

$

In Stock, only 1 left!

0

7

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

8

Toro 55-2980

Mounting Engine

$

$

Not available

9

Toro 504700

Washer

$

$

Currently unavailable

10

Toro 50-5700

Lockwasher

$

$

Not available

11

Toro 50-0050

Bolt

$

$

Not available

12

Toro 50-0990

Clip

$

$

Not available

13

Toro 50-0930

Hose

$

$

Not available

14

Toro 50-3760

Cap

$

$

Not available

15

Toro 50-3780

CUP

$

$

Not available

16

Toro 50-3770

GASKET

$

$

Not available

17

Toro 50-3750

FILTER

$

$

Not available

18

Toro 50-3740

Fuel Cock Assembly (Incl. Ref. #14-17)

$

$

Not available

19

Toro 50-0240

Screw

$

$

Not available

20

Toro 81-1420

Lockwasher

$

$

Not available

21

Toro 55-2970

Fuel Tank

$

$

Not available

22

Toro 50-3850

Gasket

$

$

Not available

23

Toro 50-5430

Gauge Assembly Fuel (Incl. Ref. #22)

$

$

Not available

24

Toro 55-0260

FILTER

$

$

Not available

25

Toro 53-1420

GASKET

$

$

Not available

26

Toro 50-3700

Cap (Incl. Ref. #25)

$

$

Not available

Toro 50-1230

Tool

$

$

Not available
