62025 (T 2500) - Toro Generator (SN: 008000001 - 008999999) (1988) CONTROL PANEL ASSEMBLY Parts Diagram

Generator

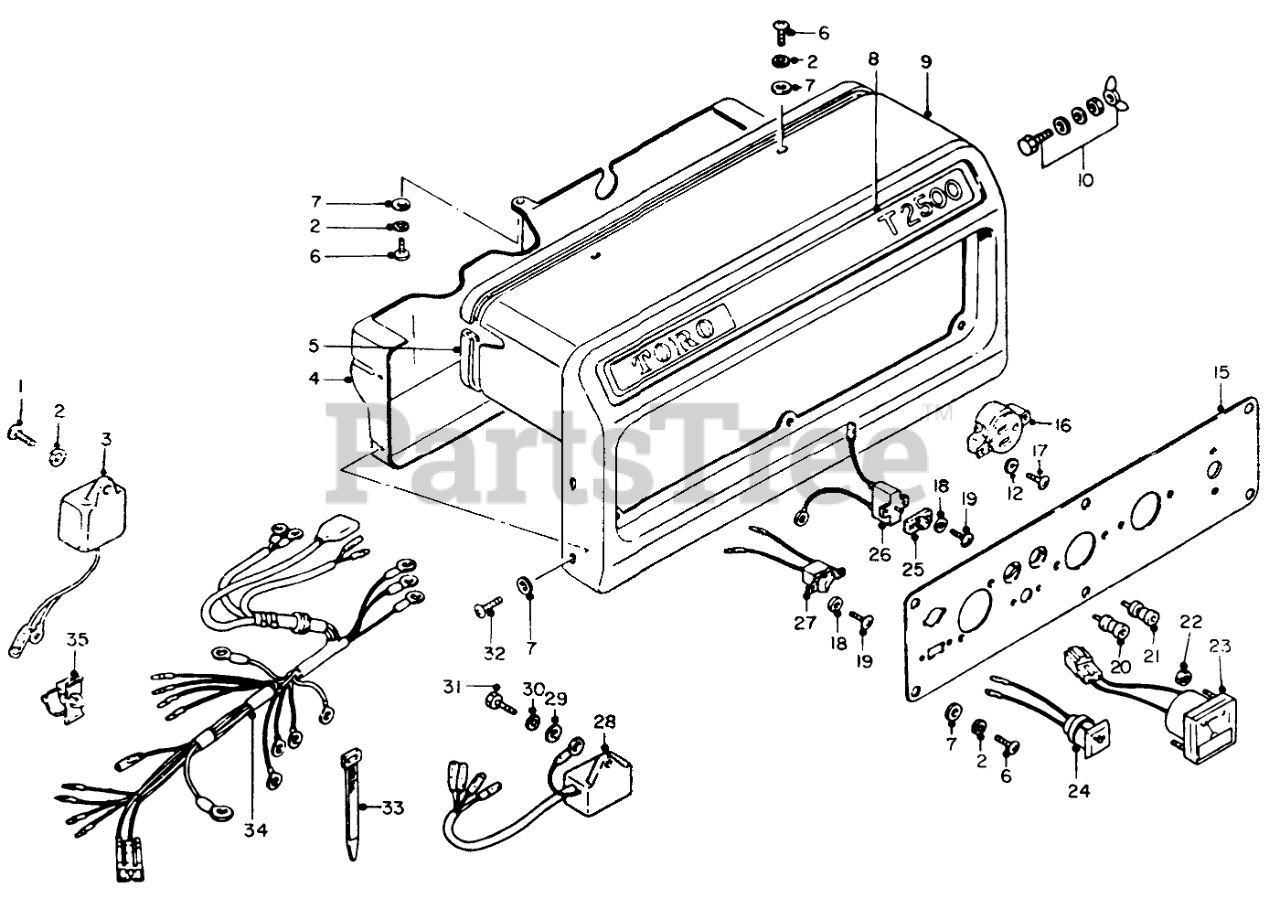

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 50-0270

Screw

$

$

Not available

2

Toro 81-1380

Washer

$

$

Not available

3

Toro 55-0740

X-STR MAG UNIT

$

$

Not available

4

Toro 55-0710

Panel-Rear

$

$

Not available

5

Toro 50-5590

Seal

$

$

Not available

6

Toro 50-0280

SCREW

$

$

Not available

7

Toro 50-0610

WASHER

$

$

Not available

8

Toro 55-3090

Emblem-Toro T2500

$

$

Not available

9

Toro 55-0700

Panel-Control

$

$

Not available

10

Toro 50-4530

GROUND TERMINAL

$

$

Not available

12

Toro 55-0540

Washer

$

$

Not available

15

Toro 63-4150

Plate-Panel

$

$

Not available

16

Toro 55-3120

Receptacle

$

$

Not available

17

Toro 53-1080

Screw

$

$

Not available

18

Toro 55-3100

Washer

$

$

Not available

19

Toro 50-6760

Screw

$

$

Not available

20

Toro 55-0560

TERMINAL-

$

$

Not available

21

Toro 55-0550

Nut

$

$

Not available

22

Toro 50-0490

Nut

$

$

Not available

23

Toro 50-3470

Meter-Voltage
(Superseded to 55-0800)

$

$

Not available

24

Toro 55-0500

LAMP

$

$

Not available

25

Toro 50-8720

Cap

$

$

Not available

26

Toro 55-2690

Circuit Breaker DC

$

$

Not available

27

Toro 50-4350

Switch

$

$

Not available

28

Toro 50-3550

OIL LEVEL UNIT

$

$

Not available

29

Toro 50-0620

Washer

$

$

Not available

30

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

31

Toro 50-0020

Bolt

$

$

Not available

32

Toro 55-0470

Screw

$

$

Not available

33

Toro 50-1100

Clamp

$

$

Not available

34

Toro 70-0950

Harness-Control

$

$

Not available

35

Toro 55-0580

Clamp

$

$

Not available
