62025 (T 2500) - Toro Generator (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

Generator

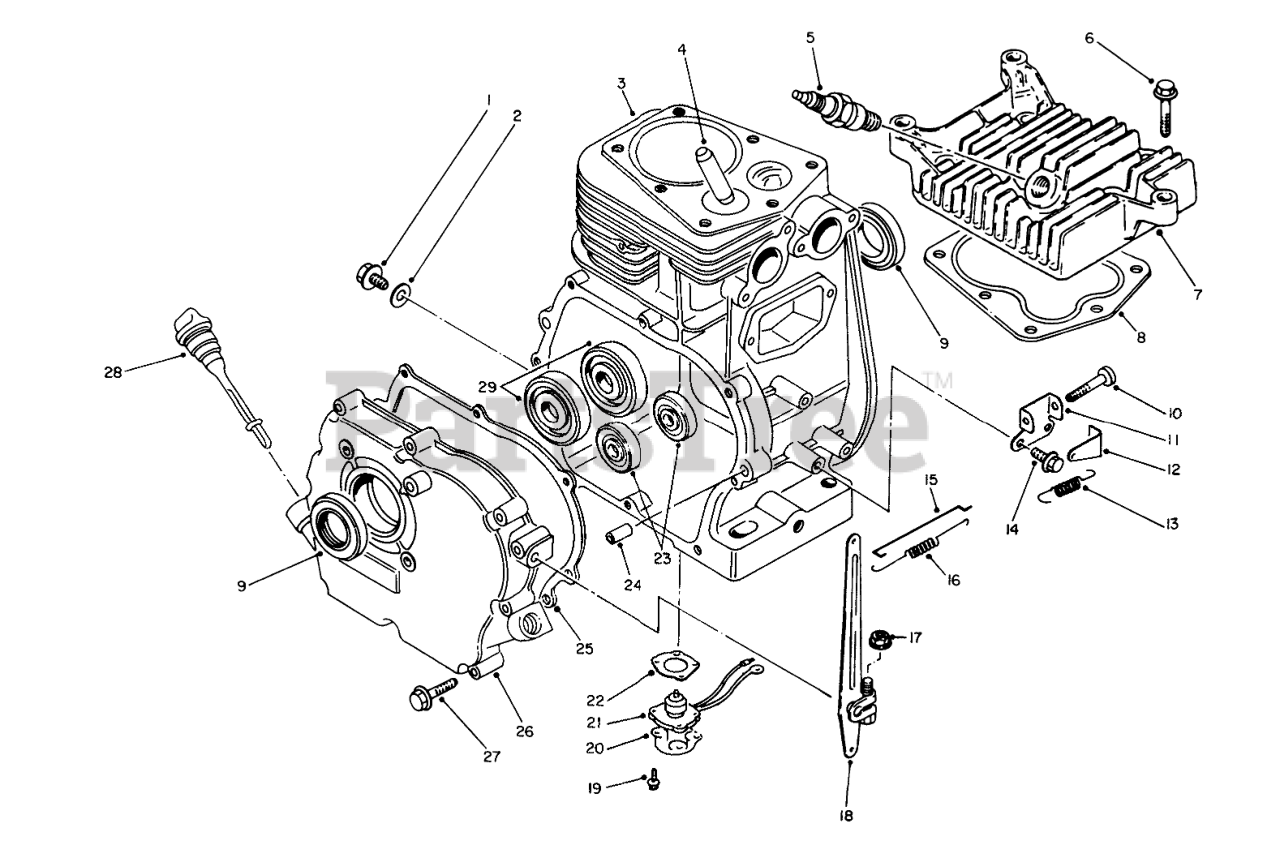

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 53-0970

Drain Plug

$

$

Not available

2

Toro 55-2800

Gasket

$

$

Not available

3

Toro 50-4830

Cylinder

$

$

Not available

4

Toro 50-4850

VALVE GUIDE

$

$

Not available

5

Toro 50-1160

SPARK PLUG

$

$

Not available

6

Toro 50-4670

Bolt

$

$

Not available

7

Toro 50-4800

Cylinder Head
(Superseded to 50-4790)

$

$

Not available

8

Toro 50-4810

GASKET

$54.99

$

Usually ships in 3-6 days

0

9

Toro 50-4720

OIL SEAL

$

$

Not available

10

Toro 50-0680

BOLT

$

$

Not available

11

Toro 50-3260

Bracket

$

$

Not available

12

Toro 50-3210

Hook

$

$

Not available

13

Toro 50-1150

SPRING

$

$

Not available

14

Toro 50-0170

Bold

$

$

Not available

15

Toro 55-2820

Rod-Carburetor

$

$

Not available

16

Toro 50-4750

SPRING

$

$

Not available

17

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

18

Toro 55-2810

CONTROL LEVER

$

$

Not available

19

Toro 81-1300

BOLT

$7.99

$

Usually ships in 3-6 days

0

20

Toro 50-3540

Plate

$

$

Not available

21

Toro 55-0030

SENSOR

$

$

Not available

22

Toro 50-3520

GASKET

$

$

Not available

23

Toro 50-0820

Bearing

$

$

Not available

24

Toro 50-0450

PIN

$

$

Not available

25

Toro 50-4870

Gasket

$

$

Not available

26

Toro 50-4860

Cover

$

$

Not available

27

Toro 81-0550

Bolt

$

$

Not available

28

Toro 50-4880

Gasket

$

$

Not available

29

Toro 50-4680

Screw

$

$

Not available

Toro 50-4900

Gasket Set

Note: Not illustrated

$

$

Not available
