62025 (T 2500) - Toro Generator (SN: 005000001 - 005999999) (1985) MUFFLER ASSEMBLY Parts Diagram

Generator

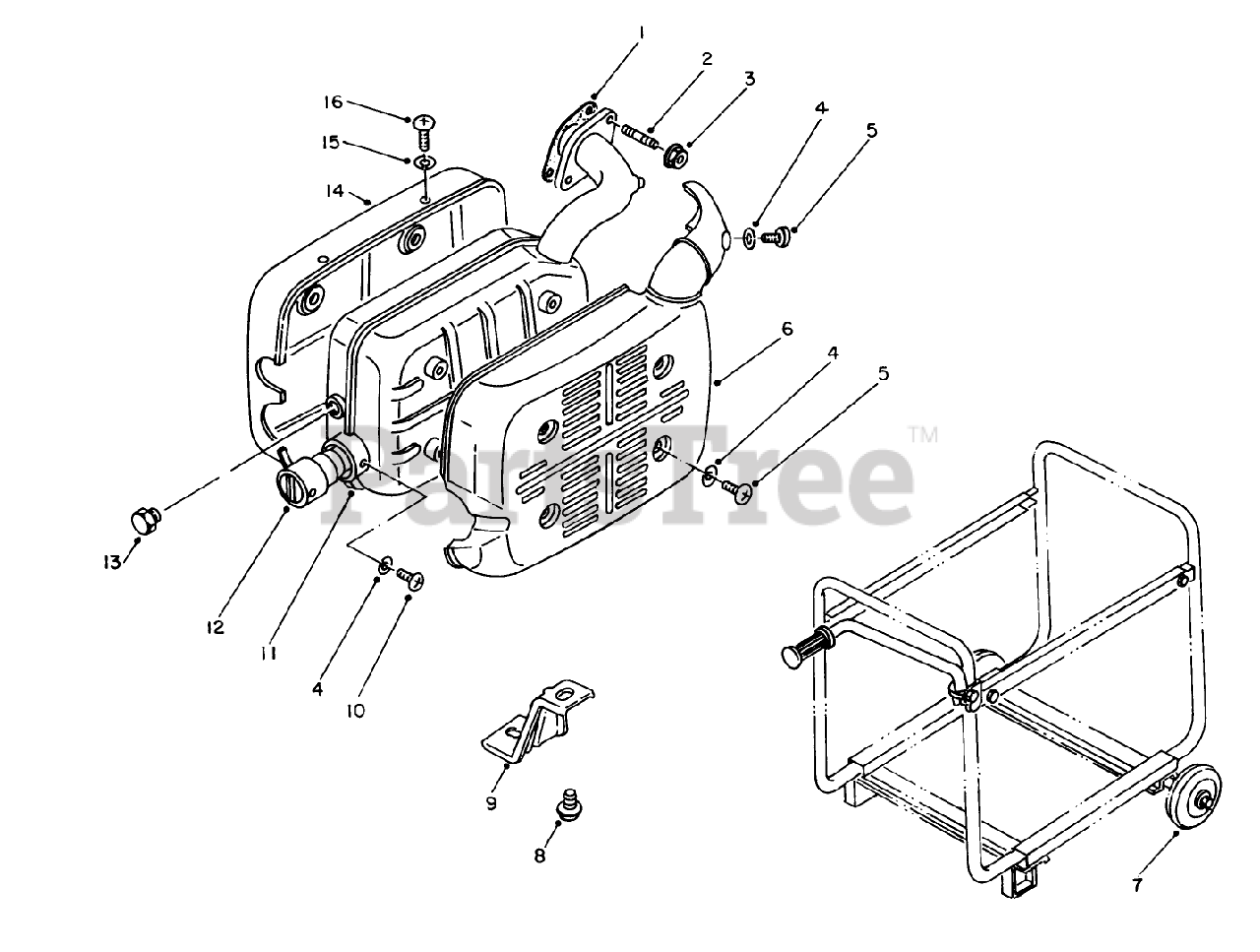

MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 50-5170

EX GASKET

$

$

Not available

2

Toro 50-0100

Stud Bolt

$

$

Not available

3

$

$

Not available

4

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

5

Toro 81-1140

SCREW

$6.99

$

Usually ships in 3-6 days

0

6

Toro 50-5210

Cover-Front

$

$

Not available

7

Toro 50-3660

Wheel Assembly (Optional)

$

$

Not available

8

$

$

Not available

9

Toro 55-2870

Bracket-Muffler

$

$

Not available

10

Toro 50-0350

Screw

$

$

Not available

11

Toro 50-5180

MUFFLER ASM

$

$

Not available

12

Toro 50-2700

Cleanout Tube

$

$

Not available

13

Toro 50-2640

Drain Plug

$

$

Not available

14

Toro 50-2690

Cover-Rear

$

$

Not available

15

Toro 81-1420

Lockwasher

$

$

Not available

16

Toro 50-0230

Screw

$

$

Not available
