62025 (T 2500) - Toro Generator (SN: 004000001 - 004999999) (1984) MUFFLER ASSEMBLY Parts Diagram

Generator

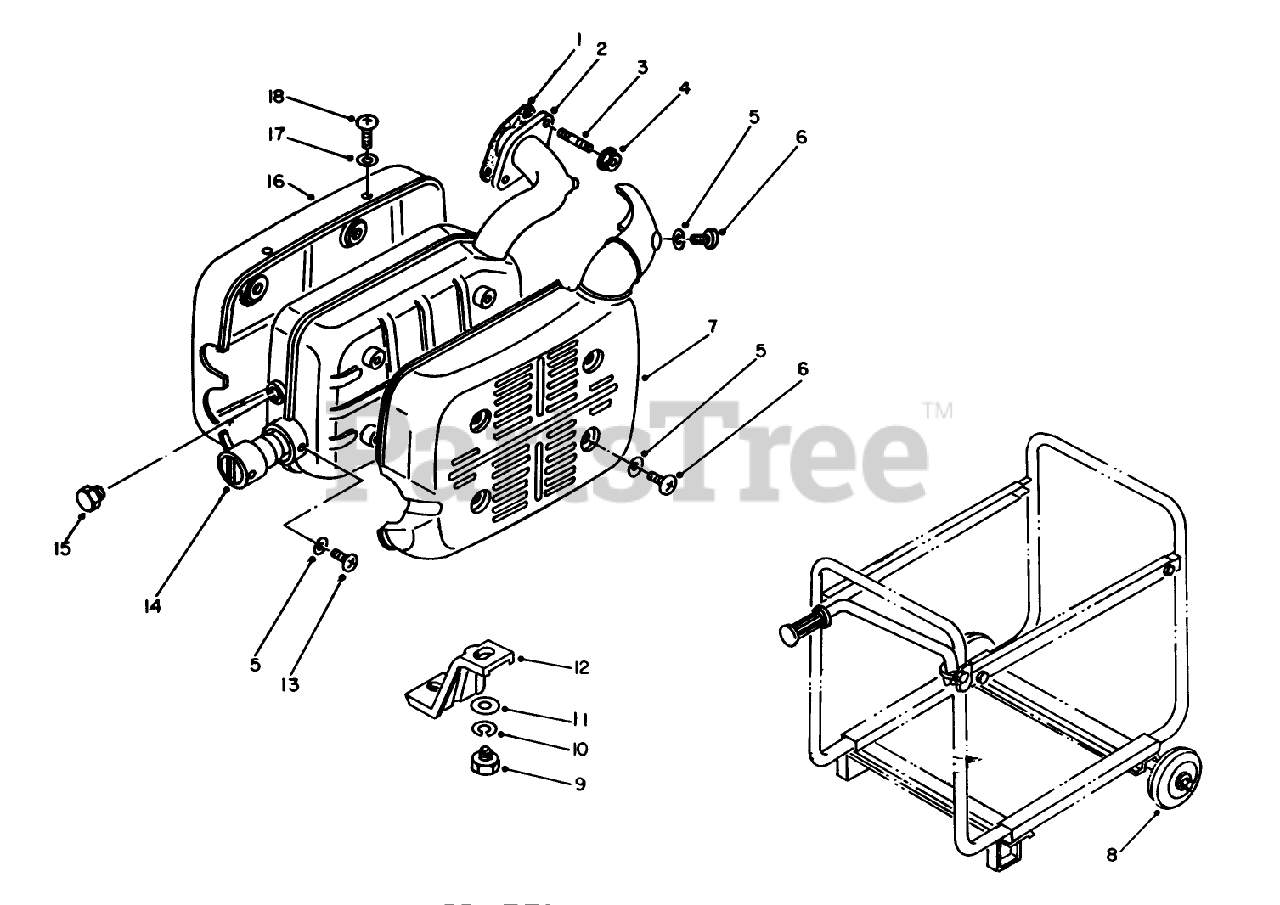

MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 50-5170

EX GASKET

$

$

Not available

2

Toro 50-5180

MUFFLER ASM

$

$

Not available

3

Toro 50-0100

Stud Bolt

$

$

Not available

4

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

5

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

6

Toro 81-1140

SCREW

$6.99

$

Usually ships in 3-6 days

0

7

Toro 50-5210

Cover-Front

$

$

Not available

8

Toro 50-3660

Wheel Assembly (Optional)

$

$

Not available

9

$

$

Not available

10

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

11

Toro 50-0630

Washer

$

$

Not available

12

Toro 50-5200

Bracket

$

$

Not available

13

Toro 50-0350

Screw

$

$

Not available

14

Toro 50-2700

Cleanout Tube

$

$

Not available

15

Toro 50-2640

Drain Plug

$

$

Not available

16

Toro 50-2690

Cover-Rear

$

$

Not available

17

Toro 81-1420

Lockwasher

$

$

Not available

18

Toro 50-0230

Screw

$

$

Not available
