62018 (T 1800) - Toro Generator (SN: 008000001 - 008999999) (1988) AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

Generator

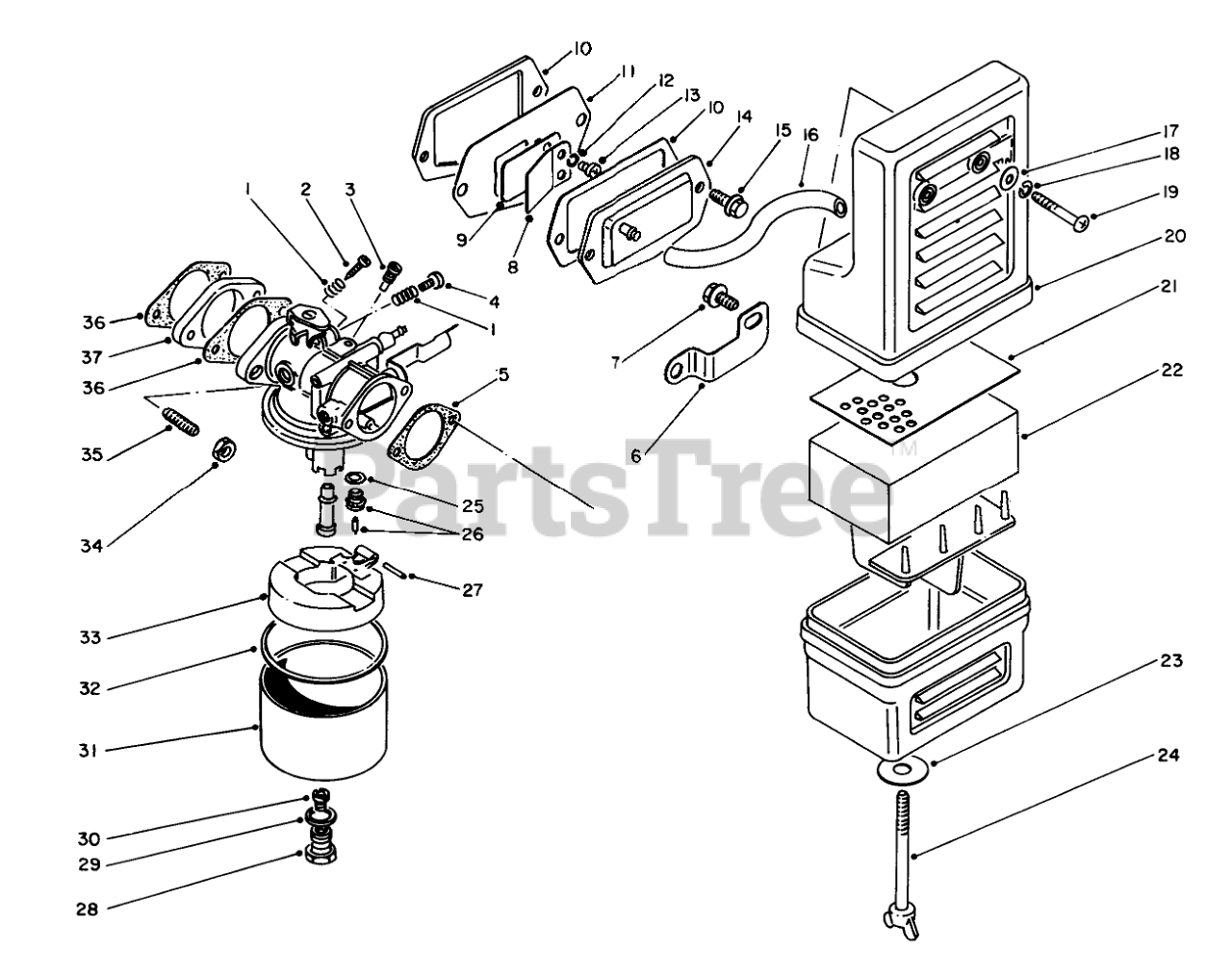

AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 81-2580

SPRING-PILOT SCREW

$

$

Not available

2

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

3

Toro 50-1220

PILOT JET
(Superseded to 94-1684)

$

$

Not available

4

Toro 50-0250

SCREW

$

$

Not available

5

Toro 50-2530

AIR CLEANER GASKET

$

$

Not available

6

Toro 50-2510

AIR CLEANER BRKT

$

$

Not available

7

Toro 53-1340

BOLT

$

$

Not available

8

Toro 53-1150

Stopper

$

$

Not available

9

Toro 53-1140

Reed Valve
(Superseded to 50-1560)

$

$

Not available

10

Toro 50-1540

Gasket

$

$

Not available

11

Toro 50-1560

Reed Valve Assembly (Incl . Ref . #8-10)

$

$

Not available

12

Toro 50-0560

Lockwasher

$

$

Not available

13

Toro 50-0120

BOLT

$

$

Not available

14

Toro 50-1520

Cap-Breather

$

$

Not available

15

Toro 55-0100

Bolt

$

$

Not available

16

Toro 55-0110

PIPE

$

$

Not available

17

Toro 50-0610

WASHER

$

$

Not available

18

Toro 81-1380

Washer

$

$

Not available

19

Toro 50-0330

SCREW

$

$

Not available

20

Toro 50-2410

AIR CLEANER ASM

$

$

Not available

21

Toro 50-2490

Holder

$

$

Not available

22

Toro 50-2470

FILTER

$

$

Not available

23

Toro 50-2570

WASHER

$

$

Not available

24

Toro 50-2550

Bolt-Wing

$

$

Not available

25

Toro 50-2400

GASKET

$

$

Not available

26

Toro 50-2390

NEEDLE VALVE

$

$

Not available

27

Toro 50-2310

PIN

$

$

Not available

28

Toro 50-2370

Bolt

$

$

Not available

29

Toro 55-2860

GASKET

$

$

Not available

30

Toro 55-0140

MAIN JET

$

$

Not available

31

Toro 55-0120

Carburetor Assembly (Incl. Ref. #25-30 & 32 & 33)

$

$

Not available

32

Toro 50-2290

GASKET

$

$

Not available

33

Toro 55-0130

FLOAT

$

$

Not available

34

Toro 50-7180

NUT

$6.99

$

In Stock, only 3 left!

0

35

Toro 50-0080

Bolt-Stud

$

$

Not available

36

Toro 50-2180

Gasket
(Superseded to 53-1240)

$

$

Not available

37

Toro 50-2200

INSULATOR

$

$

Not available
