62018 (T 1800) - Toro Generator (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

Generator

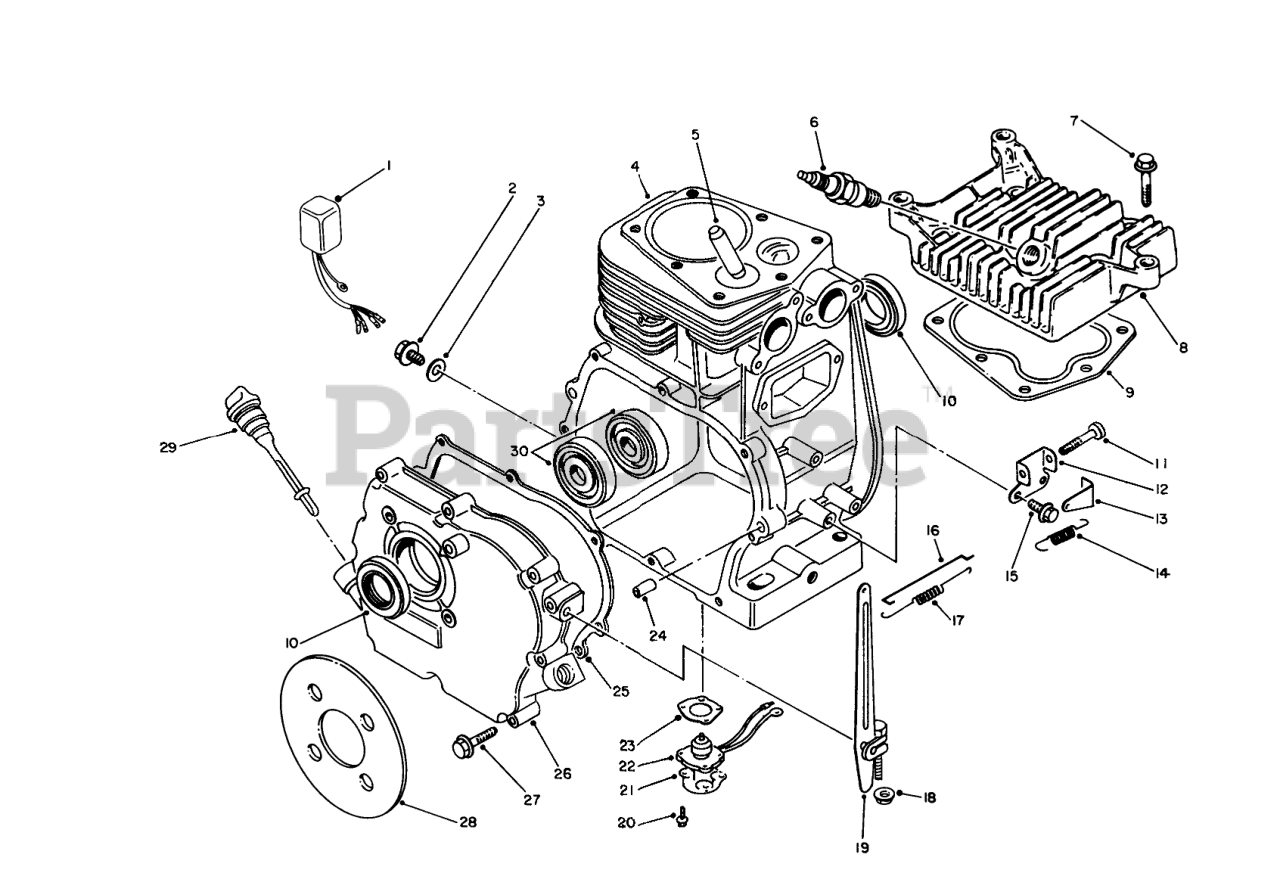

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 50-3550

OIL LEVEL UNIT

$

$

Not available

2

Toro 53-0970

Drain Plug

$

$

Not available

3

Toro 50-0800

GASKET

$

$

Not available

4

Toro 55-1200

Cylinder

$

$

Not available

5

Toro 50-6110

VALVE GUIDE

$

$

Not available

6

Toro 50-1160

SPARK PLUG

$

$

Not available

7

Toro 50-0190

BOLT

$

$

Not available

8

Toro 50-1250

Cylinder Head

$

$

Not available

9

Toro 50-1280

GASKET

$

$

Not available

10

Toro 50-0870

Oil Seal
(Superseded to 81-3460)

$41.99

$

Usually ships in 3-6 days

0

11

Toro 50-0680

BOLT

$

$

Not available

12

Toro 50-3260

Bracket

$

$

Not available

13

Toro 50-3210

Hook

$

$

Not available

14

Toro 50-1150

SPRING

$

$

Not available

15

Toro 50-1340

Bolt
(Superseded to 50-6110)

$

$

Not available

16

Toro 50-3280

Rod-Carburetor

$

$

Not available

17

Toro 50-1130

SPRING

$

$

Not available

18

Toro 50-7180

NUT

$6.99

$

In Stock, Qty 5

0

19

Toro 55-0050

Lever-Control

$

$

Not available

20

Toro 50-6190

Bolt

$

$

Not available

21

Toro 50-3540

Plate

$

$

Not available

22

Toro 55-0030

SENSOR

$

$

Not available

23

Toro 50-3520

GASKET

$

$

Not available

24

Toro 81-0520

PIN

$

$

Not available

25

Toro 55-0020

Gasket-Crankcase

$

$

Not available

26

Toro 55-0040

Cover-Crankcase Side

$

$

Not available

27

Toro 81-0550

Bolt

$

$

Not available

28

Toro 50-3970

Seat-Joint

$

$

Not available

29

Toro 53-0120

Gauge-Oil Level

$

$

Not available

30

Toro 53-0960

Bearing
(Superseded to 50-0830)

$

$

Not available

Toro 55-0060

Gasket Set (Optional)

Note: Not illustrated

$

$

Not available
