62018 (T 1800) - Toro Generator (SN: 005000001 - 005999999) (1985) CRANKCASE & CAM SHAFT ASSEMBLY Parts Diagram

Generator

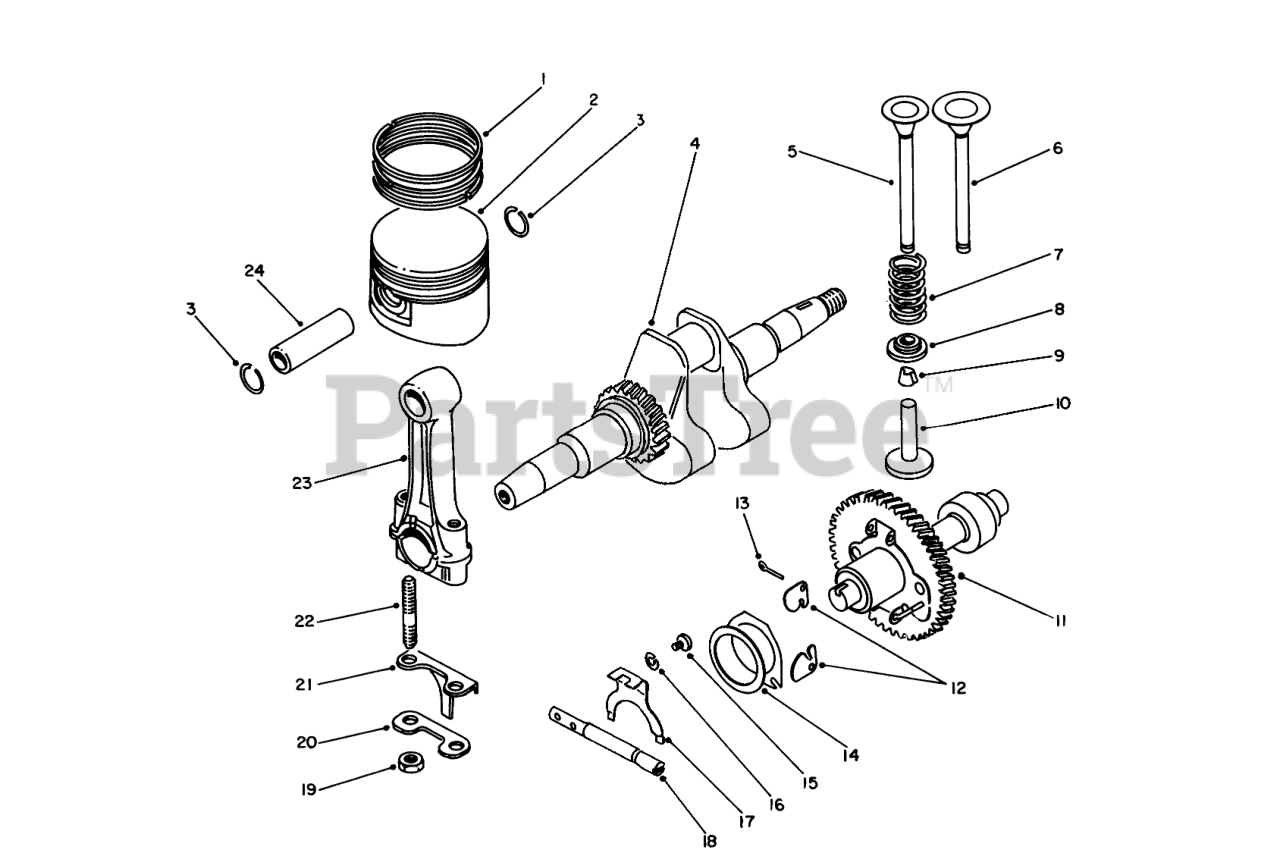

CRANKCASE & CAM SHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 50-1710

Ring Set-Piston Std.

$

$

Not available

Toro 50-1720

Ring Set-Piston (OS:0.25)

Note: Not illustrated

$

$

Not available

Toro 50-1730

Ring Set-Piston (OS:0.5)

Note: Not illustrated

$

$

Not available

2

Toro 50-1620

Piston Std

$

$

Not available

Toro 50-1630

Piston (OS:0.25)

Note: Not illustrated

$

$

Not available

Toro 50-1640

Piston (OS:0.5)

Note: Not illustrated

$

$

Not available

3

Toro 50-0960

CIRCLIP

$

$

Not available

4

Toro 55-0090

Crankshaft

$

$

Not available

5

Toro 50-2090

EXHAUST VALVE

$

$

Not available

6

Toro 50-2060

Valve-Intake

$

$

Not available

7

Toro 50-2120

Spring-Valve

$

$

Not available

8

Toro 50-2140

Retainer

$

$

Not available

9

Toro 50-2160

Cotter

$

$

Not available

10

Toro 50-1970

Tappet (L:40.26)

$

$

Not available

Toro 50-1980

Tappet (L:40.19)

Note: Not illustrated

$

$

Not available

Toro 50-1990

Tappet (L:40.33)

Note: Not illustrated

$

$

Not available

11

Toro 50-1940

Cam Shaft

$

$

Not available

12

Toro 50-3070

ARM

$

$

Not available

13

Toro 50-0430

Cotter Pin

$

$

Not available

14

Toro 50-3110

Spacer

$

$

Not available

15

Toro 50-0220

SCREW

$

$

Not available

16

Toro 50-0590

Washer

$

$

Not available

17

Toro 50-3150

Plate-Shift

$

$

Not available

18

Toro 50-3130

Shaft-Throttle Return

$

$

Not available

19

Toro 50-0510

NUT

$

$

Not available

20

Toro 50-1890

LOCK PLATE

$

$

Not available

21

Toro 55-0080

Plate-Splash

$

$

Not available

22

Toro 50-0670

Stud Bolt

$

$

Not available

23

Toro 50-1820

Rod-Connecting (Incl. Ref. # 19-22)

$

$

Not available

Toro 55-0070

Rod-Connecting (US:0.5)(Incl. Ref. # 19-22)
(Superseded to 50-1820)

Note: Not illustrated

$

$

Not available

24

Toro 50-1800

PISTON PIN

$

$

Not available
