62018 (T 1800) - Toro Generator (SN: 004000001 - 004999999) (1984) FUEL TANK & FRAME ASSEMBLY Parts Diagram

Generator

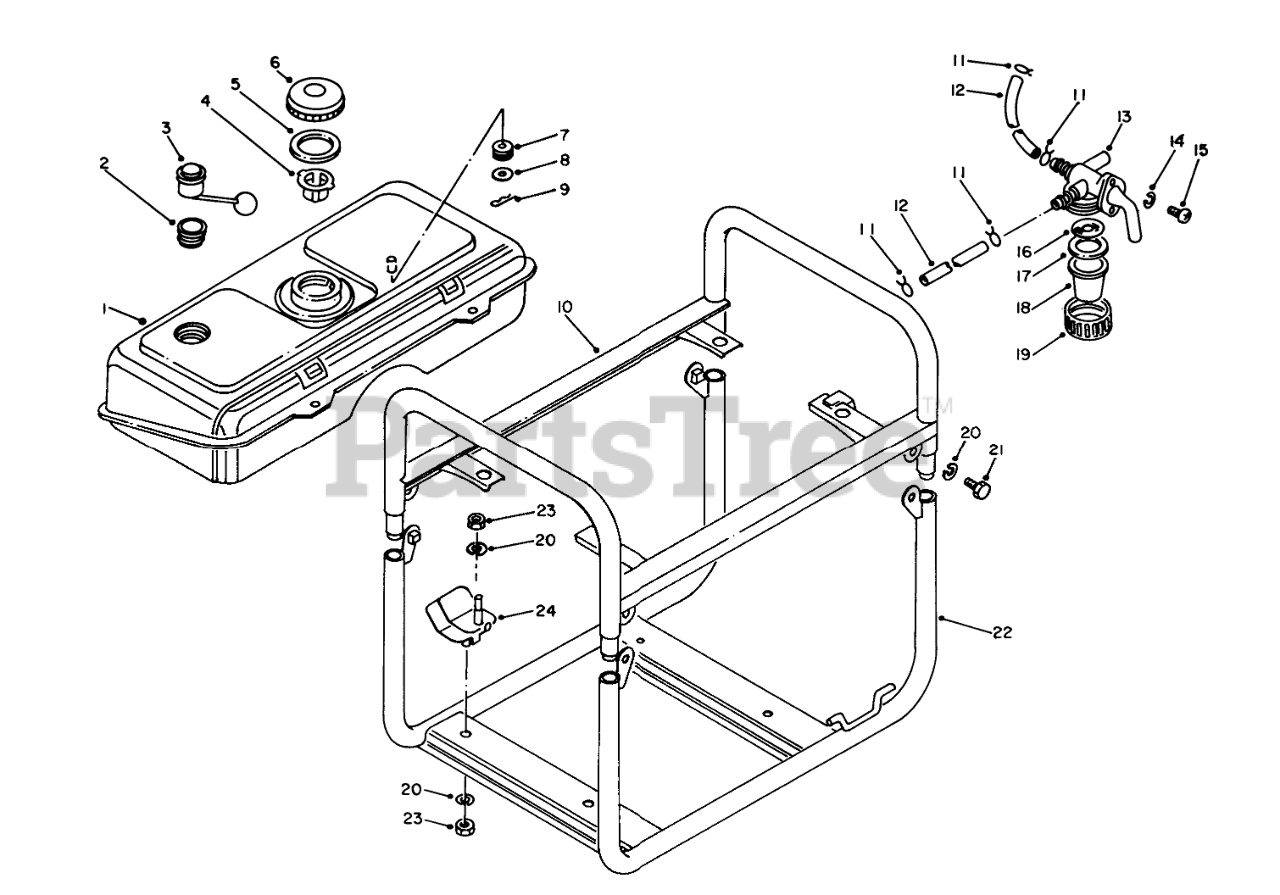

FUEL TANK & FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 50-3670

Tank-Fuel

$

$

Not available

2

Toro 50-3850

Gasket

$

$

Not available

3

Toro 50-3830

Gauge Assembly-Fuel (Incl. Ref. #6)

$

$

Not available

4

Toro 50-3810

Filter

$

$

Not available

5

Toro 50-4630

GASKET

$

$

Not available

6

$

$

Not available

7

Toro 50-0890

CUSHION

$

$

Not available

8

Toro 50-0760

WASHER

$

$

Not available

9

$

$

Not available

10

Toro 50-3580

Frame-Upper

$

$

Not available

11

$

$

Not available

12

$

$

Not available

13

Toro 50-3740

Cock Assembly-Fuel (Incl. Ref. #16-19)

$

$

Not available

14

Toro 81-1420

Lockwasher

$

$

Not available

15

Toro 50-0240

Screw

$

$

Not available

16

Toro 50-3750

FILTER

$

$

Not available

17

Toro 50-3770

GASKET

$

$

Not available

18

$

$

Not available

19

$

$

Not available

20

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

21

$

$

Not available

22

Toro 50-3590

Frame-Lower

$

$

Not available

23

Toro 50-0520

Nut
(Superseded to 81-1110)

$

$

Not available

24

Toro 50-1590

Engine Mount
(Superseded to 55-2980)

$

$

Not available

Toro 50-1230

Tool

Note: Not illustrated

$

$

Not available
