62018 (T 1800) - Toro Generator (SN: 003000001 - 003999999) (1983) CONTROL PANEL ASSEMBLY Parts Diagram

Generator

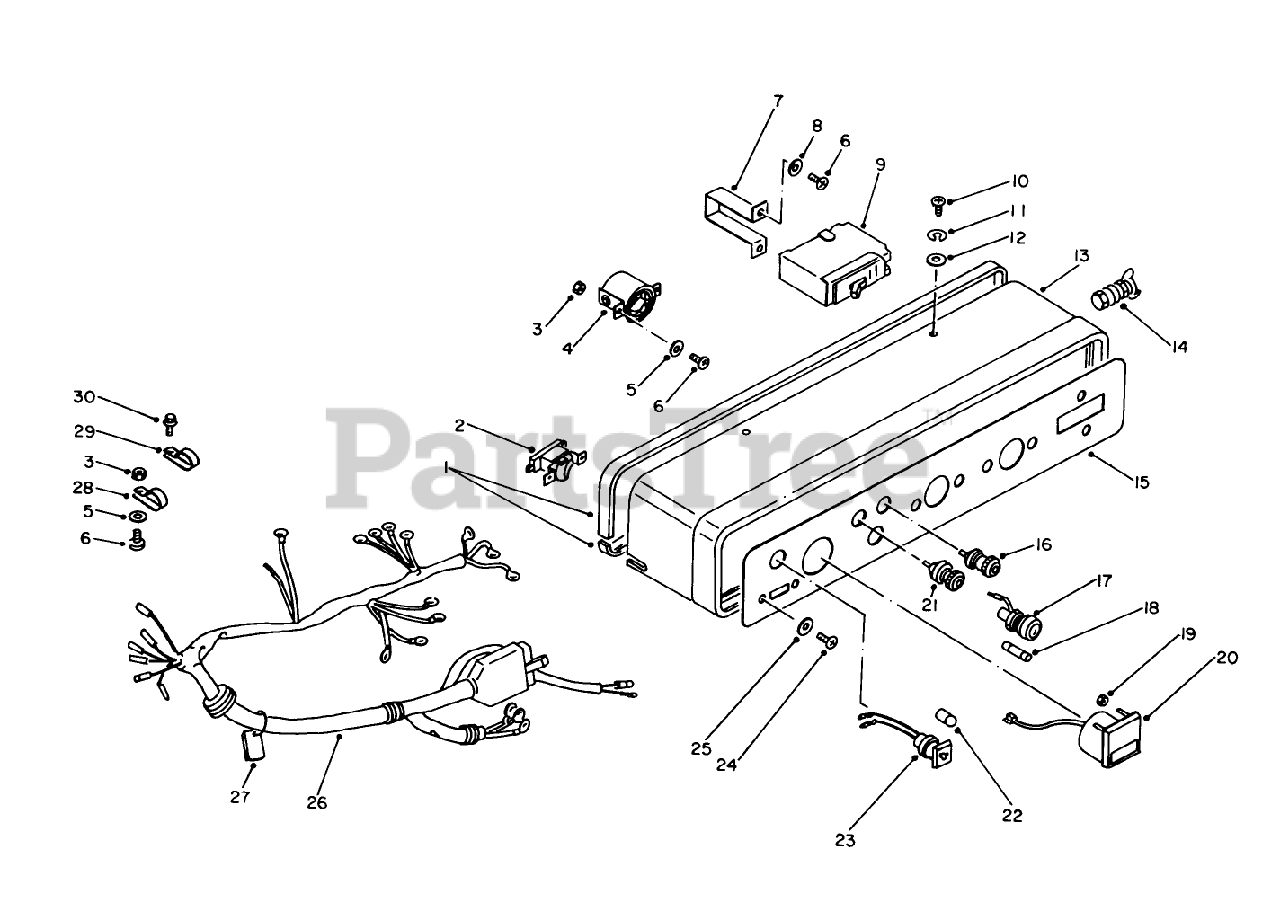

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 50-4300

Seal

$

$

Not available

2

Toro 50-4350

Switch

$

$

Not available

3

Toro 50-0500

Nut

$

$

Not available

4

Toro 50-4490

RECEPTACLE

$

$

Not available

5

Toro 50-0600

Washer

$

$

Not available

6

Toro 50-0240

Screw

$

$

Not available

7

Toro 50-4380

BREAKER HOLDER

$

$

Not available

8

Toro 50-0600

Washer

$

$

Not available

9

Toro 50-4360

CIRCUIT BREAKER

$

$

Not available

10

Toro 50-0280

SCREW

$

$

Not available

11

Toro 81-1380

Washer

$

$

Not available

12

Toro 50-0610

WASHER

$

$

Not available

13

Toro 50-4270

Panel-Control

$

$

Not available

14

Toro 50-4530

GROUND TERMINAL

$

$

Not available

15

Toro 50-4320

Plate-Panel

$

$

Not available

16

Toro 50-4510

Terminal
(Superseded to 55-0550)

$

$

Not available

17

Toro 50-4420

Holder-Fuse (Incl. Ref. #18)

$

$

Not available

18

Toro 50-4460

Fuse

$

$

Not available

19

Toro 50-0490

Nut

$

$

Not available

20

Toro 50-3470

Meter-Voltage
(Superseded to 55-0800)

$

$

Not available

21

Toro 50-4520

TERMINAL (-)

$

$

Not available

22

Toro 50-3490

Bulb

$

$

Not available

23

Toro 50-5370

Lamp (Incl.Ref.#19)

$

$

Not available

24

Toro 50-0220

SCREW

$

$

Not available

25

Toro 50-0590

Washer

$

$

Not available

26

Toro 50-4560

Wiring Harness-Control

$

$

Not available

27

Toro 50-4590

Fuse-Spare

$

$

Not available

28

Toro 50-1050

Clamp

$

$

Not available

29

Toro 50-1040

Clamp

$

$

Not available

Toro 50-1060

Clamp

Note: Not illustrated

$

$

Not available

30

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5
