62018 (T 1800) - Toro Generator (SN: 003000001 - 003999999) (1983) AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

Generator

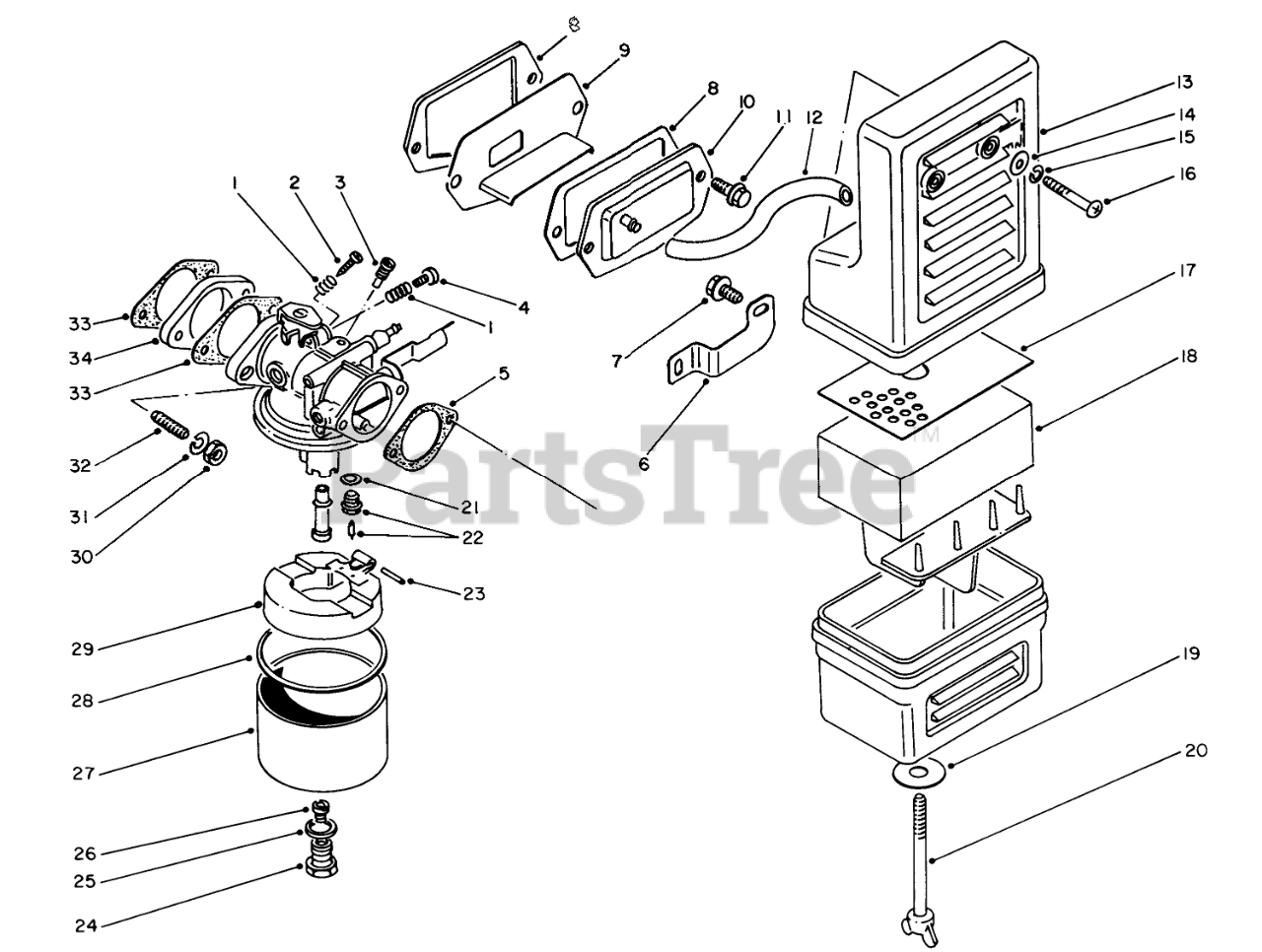

AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

  • Title
1

Toro 50-2330

Spring
(Superseded to 81-2580)

$

$

Not available

2

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

3

Toro 50-1210

Jet-Pilot (40)
(Superseded to 81-1030)

$33.99

$

Usually ships in 3-6 days

0

4

Toro 50-2320

Screw

$

$

Not available

5

Toro 50-2530

AIR CLEANER GASKET

$

$

Not available

6

Toro 50-2510

AIR CLEANER BRKT

$

$

Not available

7

$

$

Not available

8

Toro 50-1540

Gasket

$

$

Not available

9

Toro 50-1560

Reed Valve Assembly

$

$

Not available

10

Toro 50-1520

Cap-Breather

$

$

Not available

11

$9.99

$

Usually ships in 3-6 days

0

12

$

$

Not available

13

Toro 50-2410

Cleaner Assembly-Air (Incl. Ref. #17-20)

$

$

Not available

14

Toro 50-0610

WASHER

$

$

Not available

15

Toro 81-1380

Washer

$

$

Not available

16

Toro 50-0330

SCREW

$

$

Not available

17

Toro 50-2490

Holder

$

$

Not available

18

Toro 50-2470

FILTER

$

$

Not available

19

Toro 50-2570

WASHER

$

$

Not available

20

Toro 50-2550

Bolt-Wing

$

$

Not available

21

Toro 50-2400

GASKET

$

$

Not available

22

Toro 50-2390

NEEDLE VALVE

$

$

Not available

23

$

$

Not available

24

$

$

Not available

25

Toro 50-2380

Gasket
(Superseded to 55-2860)

$

$

Not available

26

Toro 50-1200

MAIN JET

$

$

Not available

27

Toro 50-2220

Carburetor Assembly (Incl. Ref. #21-26 & 28-30)

$

$

Not available

28

Toro 50-2290

GASKET

$

$

Not available

29

Toro 50-2270

Float
(Superseded to 55-0130)

$

$

Not available

30

$3.49

$

In Stock, only 1 left!

0

31

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

32

Toro 50-008Q

Stud Bolt

$

$

Currently unavailable

33

Toro 50-2180

Gasket
(Superseded to 53-1240)

$

$

Not available

34

Toro 50-2200

INSULATOR

$

$

Not available
