62012 (T 1200) - Toro Generator (SN: 008000001 - 008999999) (1988) CONTROL PANEL ASSEMBLY Parts Diagram

Generator

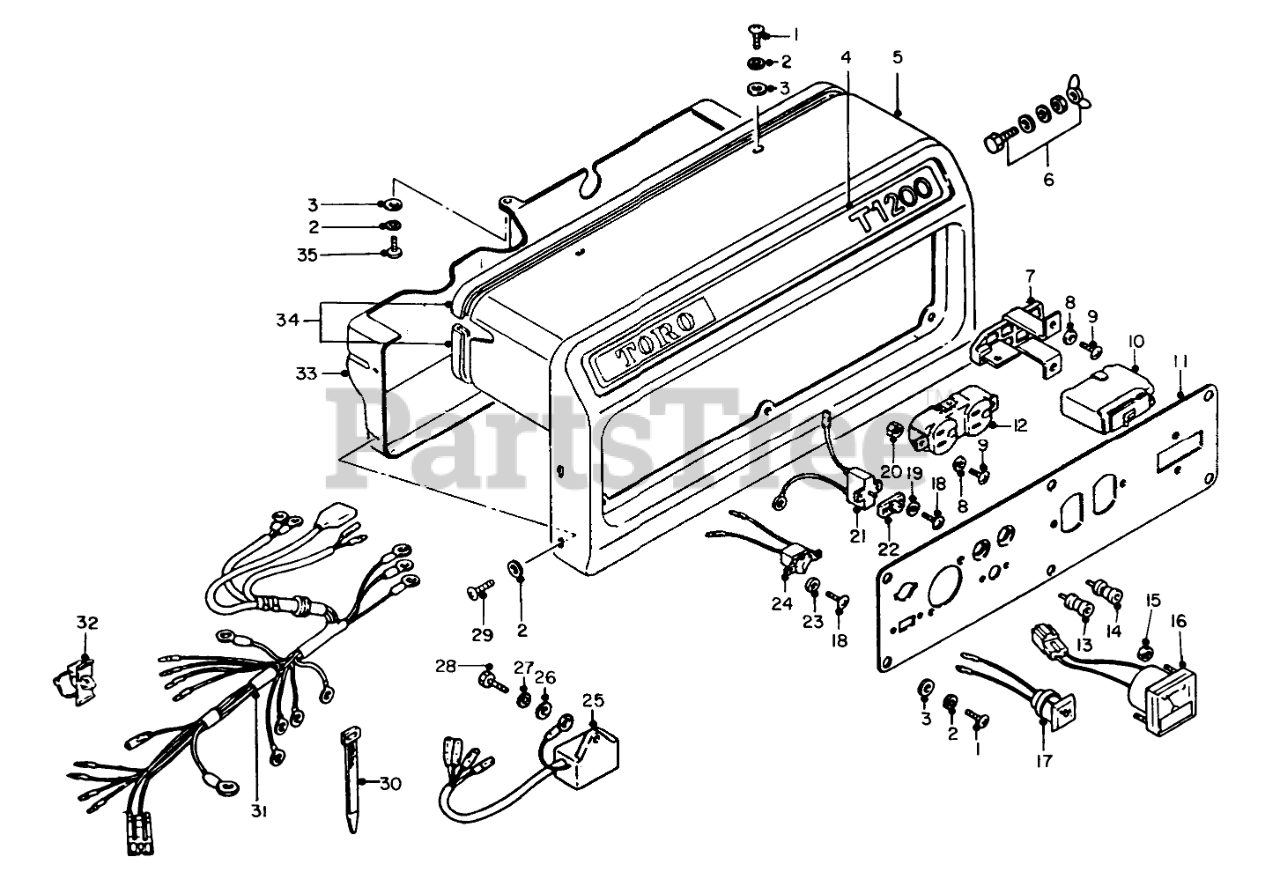

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title
1

Toro 50-0280

SCREW

$

$

Not available

2

Toro 81-1380

Washer

$

$

Not available

3

Toro 50-0610

WASHER

$

$

Not available

4

Toro 55-1150

Emblem-Toro

$

$

Not available

5

Toro 55-0450

Panel-Control

$

$

Not available

6

Toro 50-4530

GROUND TERMINAL

$

$

Not available

7

Toro 50-4380

BREAKER HOLDER

$

$

Not available

8

Toro 55-0540

Washer

$

$

Not available

9

Toro 53-1080

Screw

$

$

Not available

10

Toro 55-1160

Circuit Breaker

$

$

Not available

11

Toro 55-0480

PLATE

$

$

Not available

12

Toro 50-4490

RECEPTACLE

$

$

Not available

13

Toro 55-0560

TERMINAL-

$

$

Not available

14

$

$

Not available

15

$

$

Not available

16

Toro 50-3470

Meter-Voltage
(Superseded to 55-0800)

$

$

Not available

17

$

$

Not available

18

Toro 50-6760

Screw

$

$

Not available

19

Toro 55-1170

Washer-Lock

$

$

Not available

20

$

$

Not available

21

Toro 55-2690

Circuit Breaker DC

$

$

Not available

22

$

$

Not available

23

Toro 50-6750

Washer

$

$

Not available

24

Toro 50-4350

Switch

$

$

Not available

25

Toro 50-3550

OIL LEVEL UNIT

$

$

Not available

26

Toro 50-0620

Washer

$

$

Not available

27

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

28

$

$

Not available

29

Toro 55-0470

Screw

$

$

Not available

30

Toro 50-1100

Clamp

$

$

Not available

31

Toro 55-0570

CONTROL HARNESS

$

$

Not available

32

Toro 55-0580

Clamp

$

$

Not available

33

Toro 55-0460

Panel-Rear

$

$

Not available

34

$

$

Not available

35

Toro 50-0290

Screw

$

$

Not available
